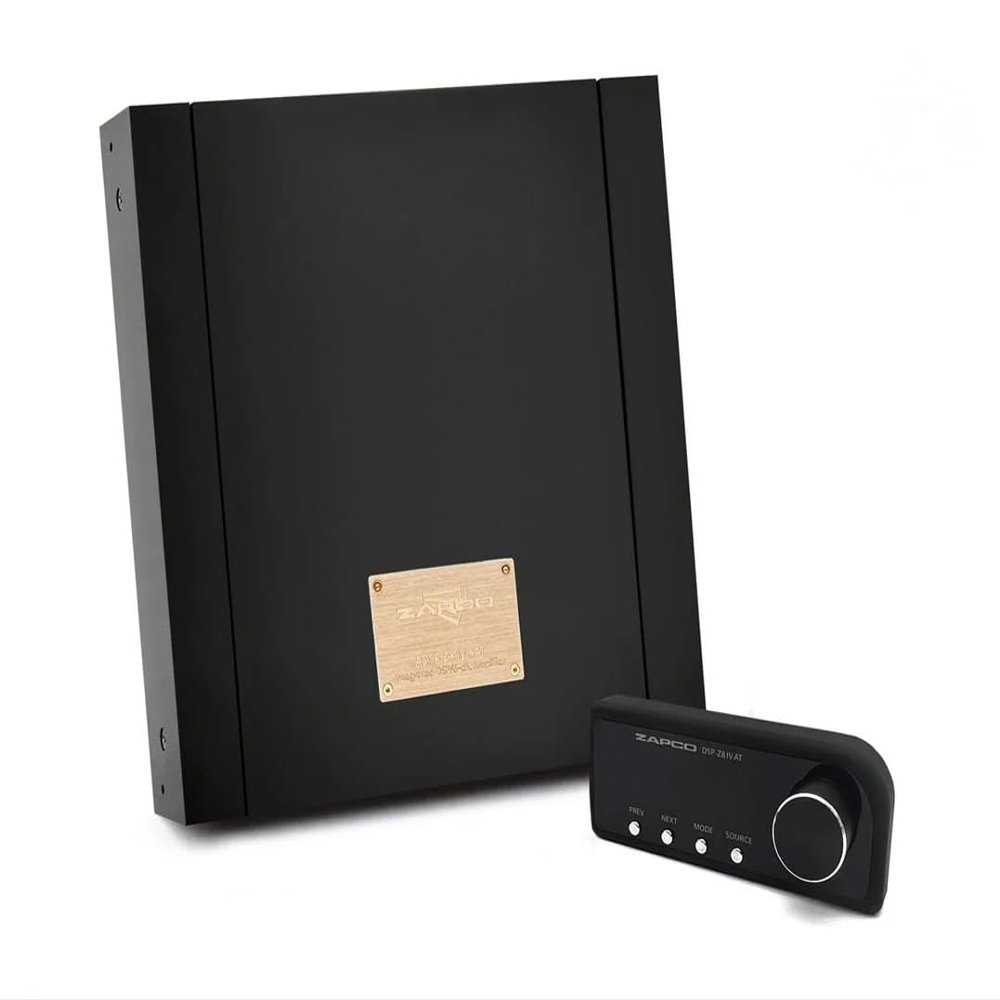

Zapco ADSP-Z8 IV-6AT 8-Channel DSP 6-CH. X 120W Amplifier

Description

• Some years ago, Zapco introduced the new DSP-Z8 IV signal processor. It was designed to bring true audiophile sound quality to an affordable DSP. The DSP-Z8 IV provided sound quality superior to units costing even twice as much. The DSP-Z8 IV has been a true giant killer. But, as we have always said, and always will say, We believe we can still do better. We firstly presented the DSP-Z8 IV II, and this year we present the Zapco DSP-Z8 IV AT and the ADSP-Z8 IV-6AT Amplifier. Whats new with the
• You can only be as good as your source material, and the DSP-Z8 IV AT series greatly expands your potential for the best possible source material. The new coaxial and optical inputs accept the digital signal from your head unit or from a portable HD player. The DSP-IV AT units also have a port for HDBluetooth streaming (with the optional HD-BTmodule). An interactive digital port will expand your options even more.
• he port accepts the control input from the included Dash Remote so you can change input source, select your song, control the master volume and even control the output of your systems bass amps. The new ADSP-Z8 IV-6AT amplifier has now 2 RCA outputs to feed the mono amp. About the GUI, the added Advanced menu also has a Mixing Set and an AutoTune function, when you add the optional tuning microphone

ADSP-Z8 IV-6AT | Zapco 8 Ch. DSP with 6 Ch. Amplifier
SPECIFICATIONS:

DSP Processor: Cirrus Logic CS47048
Power: 150 MHz/32 bit/192 KHz
8-Channels
ADC: Cirrus Logic CS47048 32 bit/192 KHz
ADC Dynamic Range/THD: 108 dB/-98 dB
DAC: Cirrus Logic CS8422 24 bit/192 KHz
DAC Dynamic Range/THD: 140 dB/-120 dB
Low level (Pre)/Sensitivity: 1-5 VRMS
High Level (Spk In)/Sens.: 2-20 V
Optical Digital IN: 24 bit-192 KHz
Coaxial Digital IN: 24 bit-192 KHz
Freq. Response (-3dB): 10 Hz 22.5 KHz
S/N Ratio only DSP Digital Input: 110 dBA
S/N Ratio only DSP Analog Input: 106 dBA
S/N Ratio Amp + DSP at max. power: 95 dBA
THD+N only DSP Digital Input: 0,002 %
THD+N only DSP Analog Input: 0,005 %
THD+N Amplif. + DSP Analog Input: 0,07 %
Crosstalk at 1 Khz only DSP: 90 dB
Crosstalk Amplifier + DSP: 45 dB
Amp Power @ 4: 6 x 80 watts
Amp Power @ 2: 6 x 120 watts
Amp Power @ 4 Bridged: 3 x 240 watts
F/REQ: 1-6 ch Gr. & Par./31 poles
Effect EQ: 7-8 ch Gr. & Par./11 poles
Mute/Solo: Yes, each channel
Time Align. (Range/Steps): 0/15 ms / 0.02 ms
Max Delay (Cm/Steps): 515 cm / 0.68 cm
Polarity: 0/180
Remote Control included
HD-BT Streaming (with optical HD-BT
PC/Display Connection: USB/6-pin Mini DIN
Unit Dimensions: 213(W) x 222(L) x 50(H
