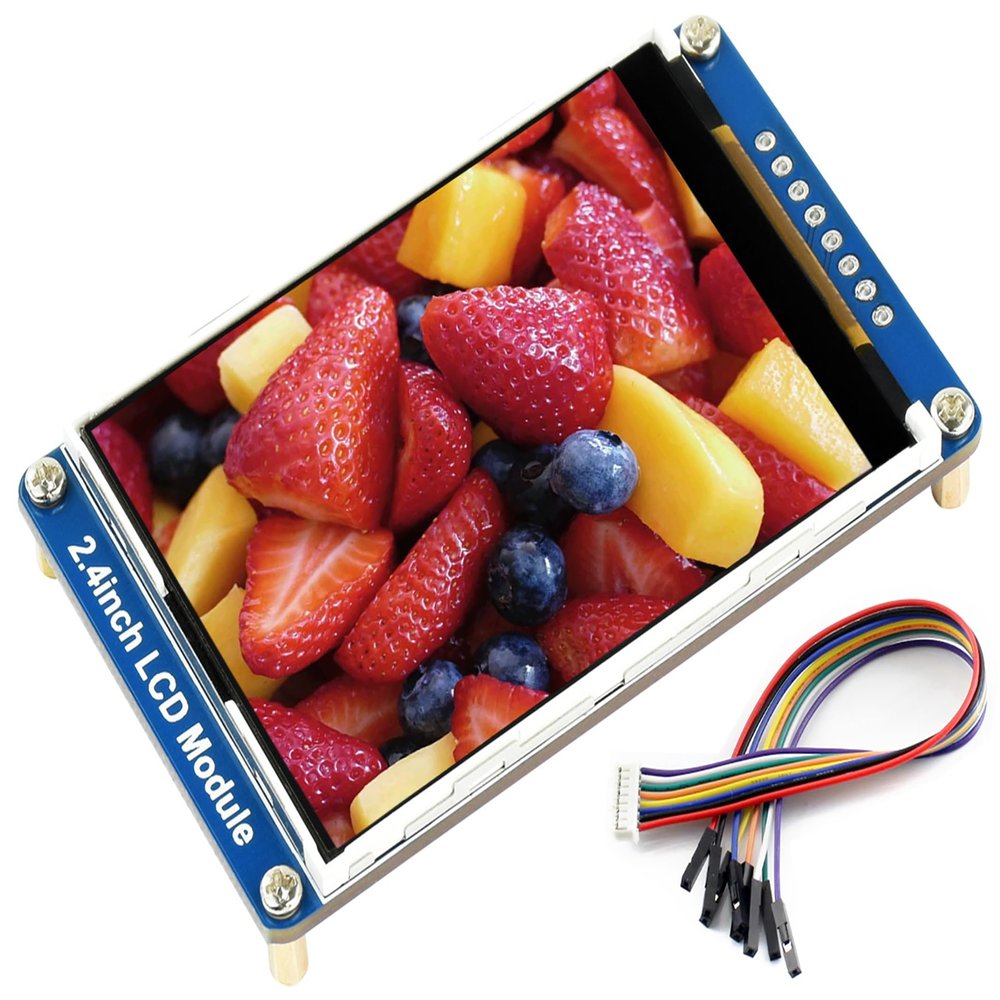

2.4inch LCD Display Module TFT Display Panel 240x320 Resolution 65K RGB Display Colors Embedded ILI9341 Driver SPI Interface Compatible with Raspberry Pi/with Arduino/ STM32, etc.

Description

• This is Waveshare 2.4inch LCD Display Module, 240320 resolution, 65K RGB colors, clear and colorful displaying effect
• Embedded ILI9341 driver, using SPI bus
• SPI interface, minimizes required IO pins, compatible with Raspberry Pi/with Arduino/STM32, etc.
• TFT Display Panel; 3.3V/5V Operating Voltage; 4-wire SPI Communication Interface
• As a 2.4inch TFT display module with a resolution of 240 * 320, it uses the SPI interface for communication. LCD has an internal controller with basic functions, which can be used to draw points, lines, circles, and rectangles, and can display English, Chinese as well as pictures

Overview
This is Waveshare 2.4inch LCD Display Module, 240320 resolution, 65K RGB colors, SPI Interface, embedded ILI9341 driver, using SPI bus. As a 2.4inch TFT display module with a resolution of 240 320, it uses the SPI interface for communication. LCD has an internal controller with basic functions, which can be used to draw points, lines, circles, and rectangles, and can display English, Chinese as well as pictures.

Features

240320 resolution, 65K RGB colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, scompatible with Raspberry Pi/with Arduino/STM32, etc.

Comes with Online development resources (examples for Raspberry Pi/for Arduino/STM32), please check: n9.cl/nlad1

Specifications

Operating voltage: 3.3V/5V
Resolution: 240 320 pixels
Communication Interface: 4-wire SPI
Display Panel: TFT
Driver: ILI9341
Display size: 36.72 48.96mm
Pixel size: 0.153 0.153mm
Dimensions: 70.50 43.30mm

Package Content

2.4inch LCD Module x1
PH2.0 20cm cable 8Px1
