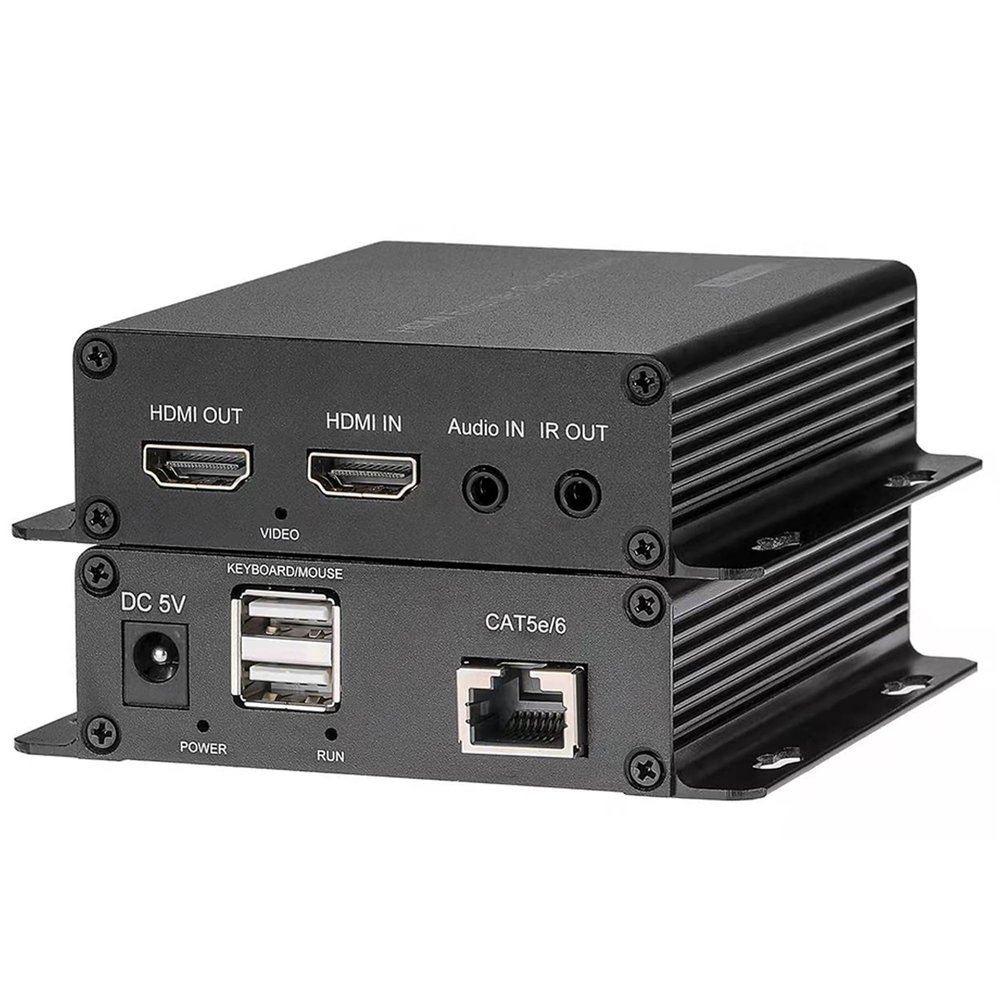

Wekuant HDMI Over Cat5e Ethernet Converters with KVM 3.5mm Audio IR,HDMI Over RJ45 Extenders Up to 656FT(200m) by Network Cable Cat5e Cat6 Cat7, Full HD 1080P -A Pair

Description

• 656/200M-For 656ft transmit distance via CAT5e/CAT6/CAT7 LAN cable. Zero Video Latency. NOTE: We recommend using direct HDMI to HDMI connections, avoid using signal converters or adapters at all costs.
• MULTIFUCTION & COMMERICAL GRADE DESIGN-With additional KVM function (USB port , Remote control by keyboard and mouse) and independent 3.5mm audio, IR infrared (Reverse direction). Support EDID, automatically matching the signal source and display equipment. And Support point to point, point to many through ethernet switches (up to 255 points).
• - HDCP 1.2 ; 1080P/1080i/720P/576P/576i/480P/480i. support 3D video.
• APPLICABLE RANGE-Widely used in information release system, security monitoring, video conferencing system, HD teaching system, LCD splicing Large screen, LED splicing screen, engineering projection fusion and other projects.
• - For better video picture quality and longer transfer distance, we highly recommend to use Cat6 or Cat7 cable. For better performance, we suggest using SOLID COPPER ethernet cable with this product.
• Plug and PlayEasy to install and Operate, No need to set up.

Overview:
This Units is to Extend HDMI signal over single CAT5E/CAT6/CAT7 cable, Instead of using expensive HDMI cables, Cost effective, Big save your money. this device lets you use your existing Cat5e, 6 cables, sockets while also performing the same functions like transferring Deep Color video and new lossless compressed audio. These devices apply in home decorating, project show, TV education environment which need The HDMI signal transfer via cover-up or need transmit for long distance. Use flexible Cat5e or Cat6 or the latest CAT7 to make runs through walls and crimp custom lengths.

Specification:
Video version: HDMI 1.3 (full-digital)
HDCP protocol:1.2
Maximum pixel clock:148.5MHZ
KVM(USB) Version:USB1.1
Supported Resolution:1080p@60Hz / 1080p@50Hz / 1080p@30Hz / 1080p@25Hz/720p@60Hz/720p@50Hz/480p@60Hz
Working temperature:-20C ~70C
Storage temperature: -40C ~85C
Product size :104*104*28mm
Product weight (including outer packaging):0.6/kg
Power dissipation2.5W
Power supply: AC100-240V, DC5V1A

Packing content:
1x HDMI Transmitter
1x HDMI Receiver
2 x IR cable
1 x USB cable
2x Power supply adapter (US standard plug)
User Manual
