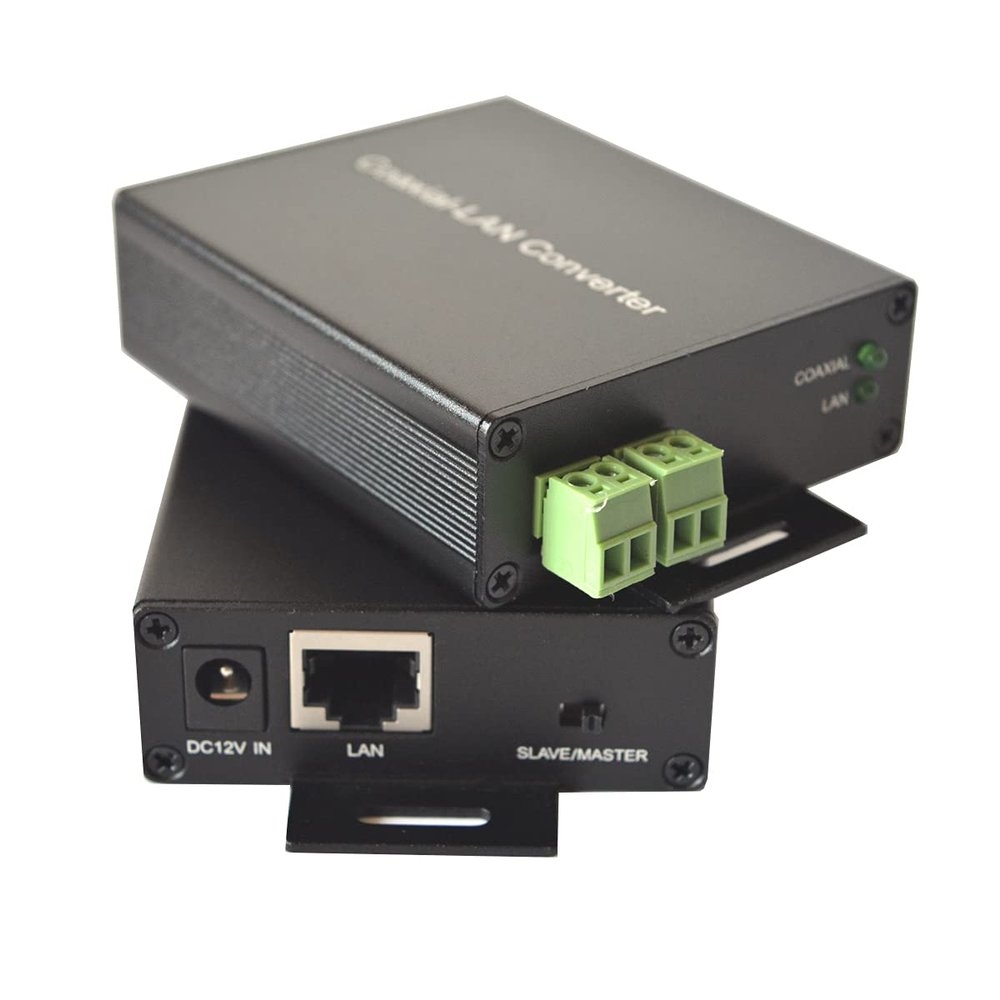

Wekuant Ethernet Extender Kit (Pair) Over Twisted Pair/Telephone Wire/Phone line up to 2Km(6500ft) for HD Network IP Camera, Webcam

Description

• This Ethernet over twisted pair extender can transmit IP ethernet signal through Twisted Pair/Telephone Wire/Phone line to remote end, transmission distance up to 2Km(6500ft) for HD Network IP Camera, Webcam
• Support 720P, 960P,1080P(2MP) HD IP Network cameras. It is also compatible with up to 5MP Network camera. Suitable Cable Type: twisted pair and telephone wires,parallel two wires. NOTE: This unit doesn't support Network/POE switches to send power to the devices
• Long transmission distance up to 2Km(6500ft) by 720P, 960P,1080P IP Network cameras. Up to 200Meters(650FT.) by 5MP Network cameras.The ideal transmission distance suggested is within 500meters, As Longer distance, lower transmission rate. We strongly suggest that dont use too long wires which over 500meters
• Equipped with high quality dual-chip enhanced CPU, with a DIP switch, it will not crash, high-bandwidth large bit stream, It is far different with the solution with single-chip solution which is low cost and cheap price
• It is simple to construct at a low cost, for full use can be made of the original coaxial cable, power wires or telephone wires for cabling; moreover, network installation cost can be reduced since communication media, such as Ethernet, neednt be re-laid
• Plug and play, easy to set up, no driver or software installation needed

Note:
1.This unit doesn't support PoE device, cant support IP camera with PoE.
2.The ideal transmission distance suggested is within 500meters, As Longer distance, lower transmission rate. We strongly suggest that dont use too long wires which over 500meters.

Indicator LED lights working status
1.Coaxial : light on/off upon power in.
2.Lan: light on and blinking upon Twisted-pair/Tel wires connected
3.UTP 1 and UTP 2 port, User can use either of two at same time, other one is for spare.
4.Power supply support 12V2A. DC interface spec is 5.5x2.5mm.

Applicable for:
Network extension, network camera video long-distance transmission extension.

Specification:
1. Transmission rate: 0-100Mbps max.
2. Transmission distance: 0-2Km (Ideal transmission distance suggested is 0-500meters)
3. Suitable Cable Type: twisted pair or telephone wires or two parallel wires.
4. Power Supply: AC-100V-240V, DC12V2A.
5. Product Size: 100x65x25mm (LxWxH).
6. Weight: about 0.5KG/pair (without power adapter).

Package content:
2x Ethernet over Twisted pair Extenders
2x External 12V2A US standard Power adapter
