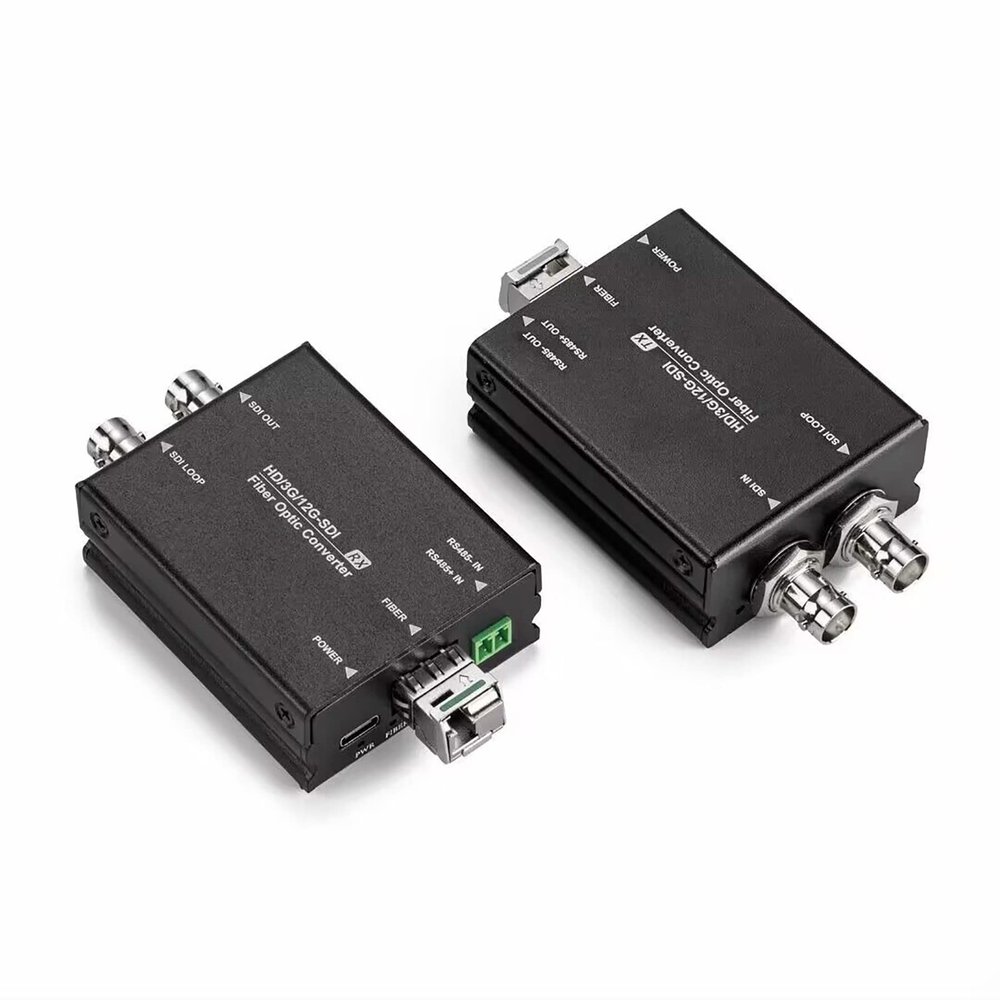

Wekuant 12G-SDI Video to Fiber Optic Converters Kit, with RS485, Singlemode up 20Km Compatible 6G-SDI 3G-SDI HD-SDI for UHDTV 4K 8K HDTV and More

Description

• Support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD); compatible with DVB-ASI and AES10 (MADI).
• Support single-mode single-fiber transmission distance up to 10km(6.2Miles).Support RS485 reverse directional data.
• Both transmitter and receiver have clock recovery function which the clock restorer can reduce high frequency jitter and completely regenerate data with pure low jitter clock. Much better than ordinary quality from other brand.
• The clock restorer is locked to 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or 1.001 frequency division sub rate and SMPTE rate of 270Mbps.
• Signal input has automatic cable equalization (EQ) function, output has drive (CD) function;

Application For
1.SMPTE compatible with serial digital interface
2.UHDTV / 4K / 8K / HDTV / SDTV video
3.IP media gateway
4.Digital video processing and editing

Transmission distance
Single-mode fiber up to 12.4miles (20km)

Specifications
SDI index:
Protocol standard: SMPTE ST-2082
SMPTE rate :270Mbit/s,1.48Gbit/s,2.97Gbit/s,5.94Gbit/s,11.88Gbit/s
Support standard (digital video format):
SMPIE 259M SD-SDI 480i576i
SMPIE 344M ED-SDI 480P, 576P
SMPIE 292M HD-SDI 720P, 1080i
SMPIE 424M 3G-SDI 1080P60Hz
SMPIE ST-2081 6G-SDI 2160P30Hz
SMPIE ST-2082 12G-SDI 2160P60Hz

EQ mode cable transmission distance:
75m at 11.88Gbps
120m at 5.94 Gbps
200m at 2.97 Gbps
300m at 1.485 Gbps
600m at 270Mbps

Signal amplitude:800mV10%
Impedance:75
Connector: BNC. meet the IEC169-8 standard

RS485 index:
RS-485 pull-up resistance/pull-down resistance4.7 k4.7 k
RS-485 terminal resistance:N / A, 120 , and 120 k

Power index:
Input current :300MA
Input voltage:5V
Support Overload current protection.
Power supply physical interface: Type-C
Power consumption:<1.5W

Package Include:
1 x 12G-SDI Transmitter
1 x 12G-SDI Receiver
2 x USB charging head
2 x USB to Type-C power cable
1 x 3M LC-LC S/M fiber patch cord
1x User Manual
