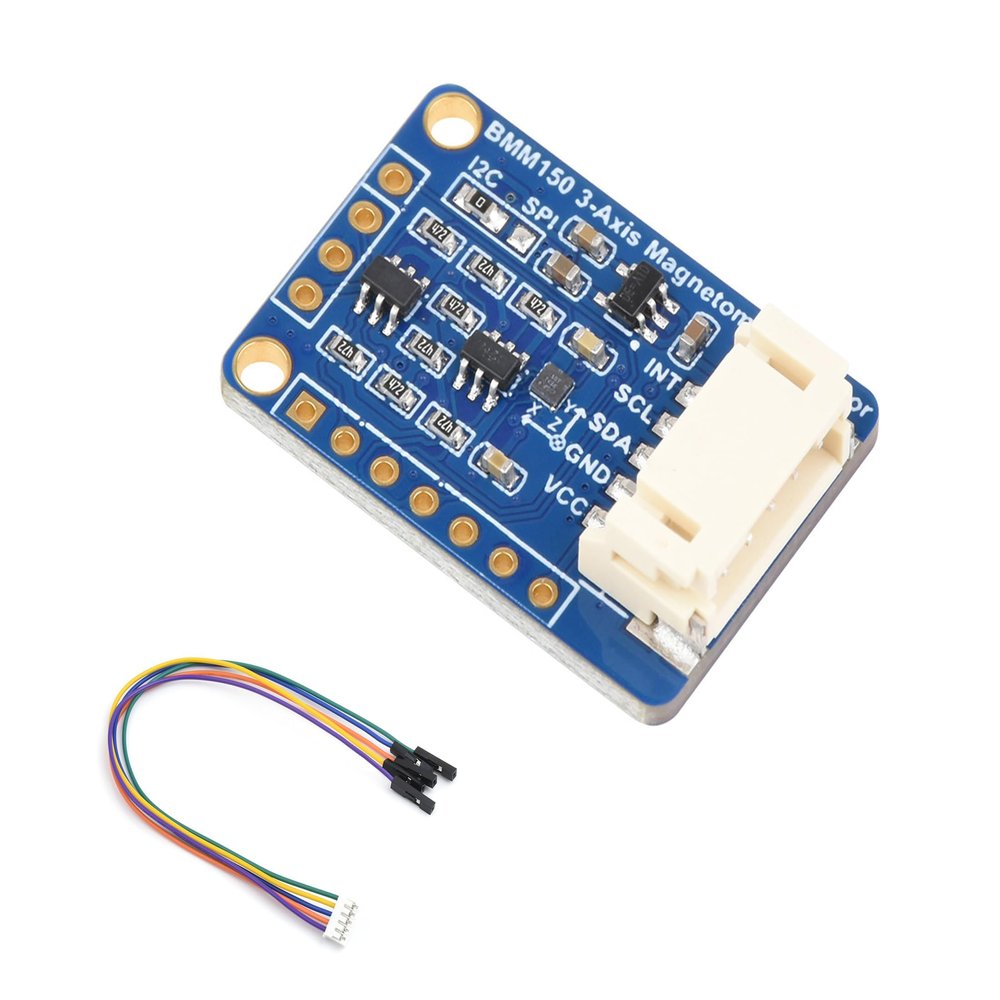

BMM150 3-axis Magnetometer Sensor, Compatible with Raspberry Pi 5/4B/Pi 3B+/3B/2B/Zero W/Zero 2W/ Raspberry Pi Pico/ ESP32,etc, Digital Compass Sensor, Magnetic Field Measurement

Description

• The BMM150 is a 3-axis magnetometer sensor, with the features of ultra-small form factor, low power consumption, and low noise. This digital high-performance sensor is ideal for a variety of altitude-tracking applications.
• Compatible with Arduino/ Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32, etc.
• Supports I2C/SPI interface communication, I2C interface by default, SPI switchable via onboard resistor. Onboard voltage translator, compatible with 3.3V/5V level
• It can be easily integrated into projects such as GPS modules, wearables devices, audible devices, and drones, suitable for applications such as accurate altimeters, environment monitoring, and IoT projects.
• Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32).Please check the description.

Overview
This is a digital compass sensor based on BMM150, supports magnetic field measuring in three perpendicular axes, I2C / SPI interfaces, can be used in robot navigation and positioning, electronic compass, magnetic heading devices, etc.

Features
Onboard BMM150 for measuring magnetic field in three perpendicular axes
Supports I2C/SPI interface communication, I2C interface by default, SPI switchable via onboard resistor
Compatible with Arduino/ Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32, etc.
Onboard voltage translator, compatible with 3.3V/5V level
Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)

Online Tutorial: n9.cl/mvkev

Specifications
Communication interface: I2C / SPI (I2C bus by default)
Power supply: 3.3V~5V
Magnetic measuring range: 1300t (X, Y axis), 2500t (Z axis)
Resolution: 0.3T
Operating temperature: -40 ~ +85
Dimensions: 29 20mm

Interface Description
Pin: Description
VCC: Power input
GND: GND
SDA: I2C data
SCL : I2C clock
INT: Interrupt output, can be connected to I/O
SDO: SPI data, can be connected to the host MISO
SDI: SPI data, can be connected to the host MOSI
CS: Chip selection, can be connected to I/O
DRY: Data sending/receiving ready state, can be connected to I/O

Package Content
BMM150 3-Axis Magnetometer Sensor x1
PH2.0 5PIN cable x1
