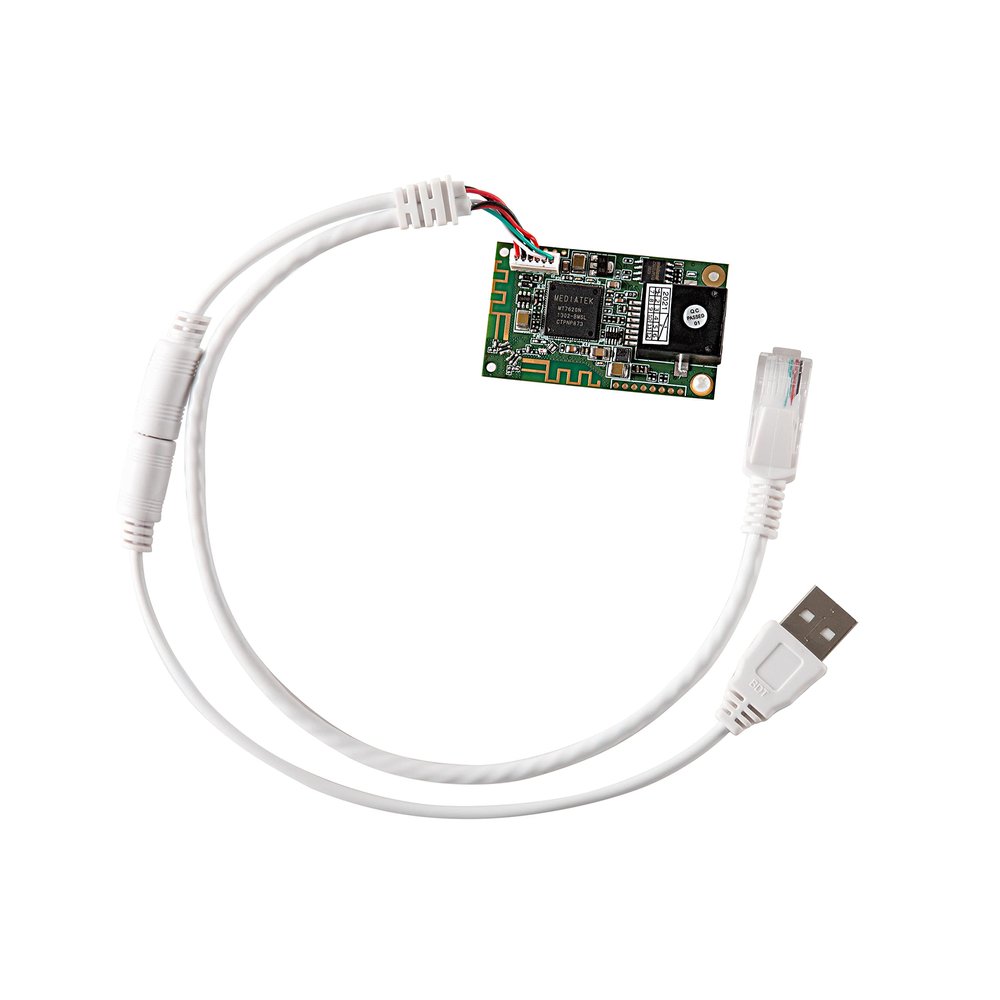

VONETS WiFi Module/Wireless Ethernet Bridge/Repeater/Mini Router/2.4GHz Hotspot Signal Booster/Extender/Amplifier AP 2 RJ45 Ports, USB/DC Powered for DIY Industrial Engineering Network Devices VM300-L

Description

• WiFi to Ethernet or Ethernet to WiFi convertIndustrial Mini 2.4GHz WiFi Module/Mini WiFi Router/Wireless Ethernet Bridge/Repeater (small size); Can achieve WiFi to Wired or Wired to WiFi function ; Support WiFi 802.11b/g/n, WiFi rate:300Mbps; 2 Ethernet ports 10/100Mbps adaptive (USB/DC power supply cable;10/100M Adaptive Ethernet cable:30CM;10/100Mbps Adaptive Ethernet port)
• Support two kinds of application methods: Router mode ; WiFi Bridge ( IP layer or MAC layer transparent transmission); WiFi Repeater (WiFi signal repeater), can extend WiFi transmission distance;WiFi access point (AP);
• Support wide voltageDC5V-15V(Typical 5V/1A, ripple less than 100mV), two-stage automatic overvoltage protection (Protection voltage upper limit 15.5V),USB or DC optional powered mode;
• WiFi hotspot automatic reconnectiontwo hotspot matching methods: Full match authentication mode, SSID and password authentication mode,Support SSA signal strength detection reporting function,motion detection function and memory hotspot(Up to 100) automatic matching connection function, realize to WiFi motion applications;Hotspot connection parameter support import and export function;
• Point-to-point transmission distancemaximum can be up to 100 meters when without obstacle and small data, less than 50 meters when used for video transmission; Good Partner for Monitoring, DVR, IP camera, Medical devices, IoT devices, Video transmission, Industrial PLC, PS3, Network Printer, Robot, Doll Machine and more DIY Network application.WiFi Tx Power:14.5dBm/16dBm optional, 2 internal antennas;

Hardware Features
1.WiFi working frequency:2.4GHz, 300Mbps transmission rate.
2.Output power of Module RF :14.5dBm--16dBm.
3.Adopt the original creation D/A temperature compensated auto frequency control technology (TAFC),make sure the lasting stability to ensure that the WiFi signal is not dropped.
4.Support 802.11b/g/n mode.Power Supply:5V/1A
5.Operating ambient temperature-25 --- 55

Function Features
1.Two software-controllable operating modes:routing mode,Bridge+Repeater mode.
2.Support intelligent transparent bridge mode, also support AP Client and AP Station.
3.Independent hardware data processing, does not consume host system resources, without installing any drivers
4.In bridge mode, fool configuration to facilitate the secondary development implanted into other host systems.
5.Built-in WEB configuration services, available configure module parameters through the web.
6.Built-in SOCKET monitoring services, used to control two GPIO (1.5A) output, nine kinds of GPIO control state to facilitate the secondary development and function expansion.
7.Support VDNS technology, in bridge mode, can be configured via logging on the domain login page, solve the problem that configure and secondary development.

Package:
1*VM300-L
1*English Manual
1*Retail box

Tips:
1. After configuration, if this device doesn't work with your camera or devices, please change the setting of "Transmission mode" to "MAC layer transparent";
2. If you want to use Huawei or iPhone as a hotspot for WiFi bridge when you setting, please select "SSID and password match" in the "Advanced Setting" under the upper-level hotspot password.
