VISLONE ATS-Decoder Pocket Si4732 Full Band Radio Receiver FM RDS AM MW SW SSB DSP for Professional Radio Developers Test Engineers Hobbyists

Description

• Full-Band Reception & Touchscreen Operation: It adopts an SI4732 full-band DSP radio receiver covering FM, MW, SW, and SSB bands, and is equipped with a 2.4-inch touchscreen to realize an intuitive and convenient operation experience.
• New Decoding Functions & Spectrum Optimization: CW, RTty, F4, and F8 decoding functions, and four audio spectrum are added. H-RADIO 4.17 firmware optimizes memory usage for faster interface response, improves frequency display accuracy on the audio spectrum, and fixes some display errors to ensure usability.
• Multi-function Design: It also supports broadcast search, digital keyboard direct input frequency, HAM band fast channel, and flexible AM and SSB bandwidth settings. Supports online firmware updates to keep up with the latest features and performance optimizations. The compact size design makes it easy to carry and features 1.5W audio power loss.
• BT Function & Quick Operation: Added BT indicator, encoder lock, and antenna options for all receiver modifications. Added a quick access panel for BT settings, encoder lock, and antenna options by clicking on the corresponding indicator. Also supported the addition of the SNR definition for the SSB modulation based on the spectrum analyzer data in the presence of a decoder.
• Professional Audio and Diversified Interfaces: Built-in 3.7V, 4000mAh high capacity lithium-ion battery, supports Type-C fast charging, the maximum charging current of 1.2A, equipped with 3.5mm stereo audio output, BNC connector, 3.5mm audio jack, FM antenna, and so on. It is a reliable assistant for professional radio developers, test engineers, and amateurs, powerful and easy to operate, suitable for various occasions.

The ATS Decoder Pocket Si4732 full-band radio receiver differs from other ATS series radios in its handheld size, yet offers the same powerful features and performance. By redesigning the hardware, all of the features found in the larger body have been cleverly incorporated into the miniature body to meet the needs of customers looking for a portable ATS25 radio.

Specifications:
Name: ATS-Decoder
Material:
Battery: 1 * 3.7V, 4000mAh lithium battery (included)
Display: 2.4inch touchscreen
Frequency ranges:
FM: 64-108MHz/RDS function
L-W: 153-500KHz
MW: 520-1710kHz
SW: 1730-30000KHz
SSB: 17030kHz
Charging interface: Type-C interface, max 2A current
Outage audio power 1.5W
Item size: 120 * 115 * 48mm / 4.72 * 4.53 * 1.89in
Package size: 200 * 150 * 60mm / 7.87 * 5.91 * 2.36in
Package weight: 480g / 1.06lb

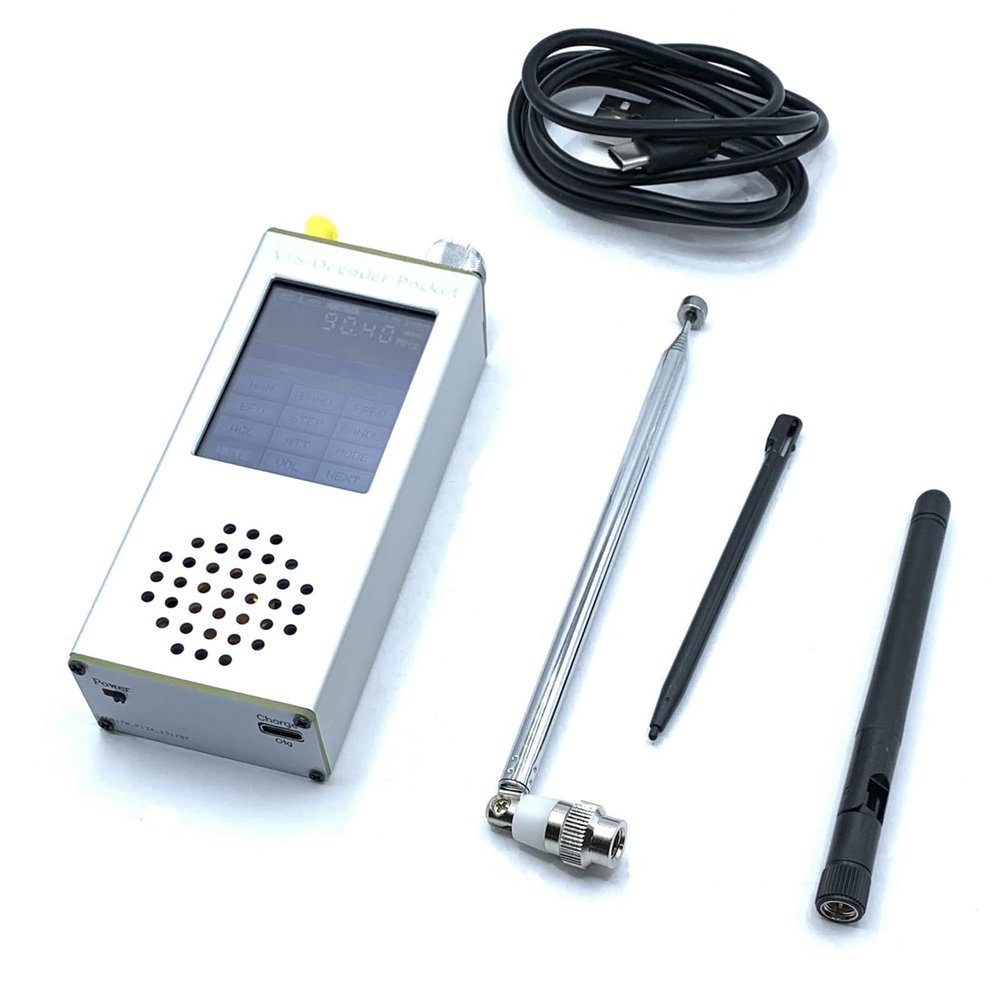

Packing List:
1 * ATS-Decoder
2 * Antenna
1 * Pen
1 * Cable
