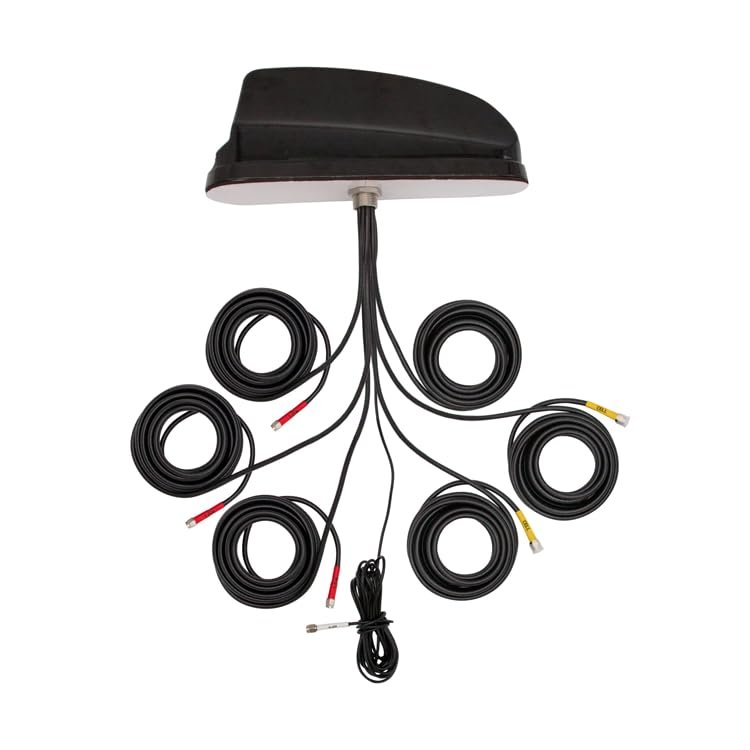

Ventev Multiband 5-in-1 Omnidirectional Sharkfin Antenna with 2 Ports 617-6000 MHz, 2 Ports 2.4/5 GHz, 1 Port GNSS, and 1 Port Whip

Description

• Sharkfin 5-in-1 Omni Antenna with additional passthru port for Whip or Terminal antenna
• 2x2 Ultra-wideband (617-6000MHz) to support MIMO/diversity at 4G/5G, 2x MIMO Wi-Fi 2.4/5GHz, GNSS/GPS antenna w/ 26dB gain LNA, and external whip supports most frequencies
• Indoor and Outdoor rated IP69K design with UV stabilized radome
• Frequency Bands & Gain: 617-960 MHz 4 dBi 1690-2700 MHz 6 dBi 3300-4200 MHz 7 dBi 4900-6000 MHz 8 dBi Wi-Fi 2400-2500 MHz 5 dBi /4900-6000 MHz 6 dBi
• External Antenna Port for Whip Antenna Cable 6: Frequency Band Supported, MHz 136-174 / 340-520 / 617-960 / 1690-2700 / 2400-2500 / 4900-6000 MHz
• Input Connector / Pigtail Cellular Cables: (leads #1 to 2) SMA Male; 15ft Pigtail w/ RG58 Wi-Fi Cables (leads #3 to 4): RPSMA Male; 15ft Pigtail w/ RG58 GNSS/GPS Cable (lead #5): SMA Male; 15ft Pigtail w/ RG174 External Whip Antenna Cable (lead #6): SMA Male; 15ft Pigtail w/ RG58
• Mounting Bolt Mount through 22mm mounting hole
• Every Ventev antenna is RoHS compliant and covered by companys 2-year warranty

Ventev's Sharkfin Omni antenna's 2x2 Ultra-wideband (617-6000MHz) to support MIMO/diversity at 4G/5G, 2x MIMO Wi-Fi 2.4/5GHz, GNSS/GPS antenna w/ 26 dB gain LNA, and external whip supports most 5G FR1. This antenna includes 2 ports with 617-6000 MHz, 3 ports at 2.4/5 GHz, 1 port GNSS, and an additional pass-thru port for whip antenna. It is indoor and outdoor rated with a UV-stabilized radome. It is compatible with a wide array of mobile and industrial gateways and includes SMA Male and RPSMA Male connectors on the leads.
