Description

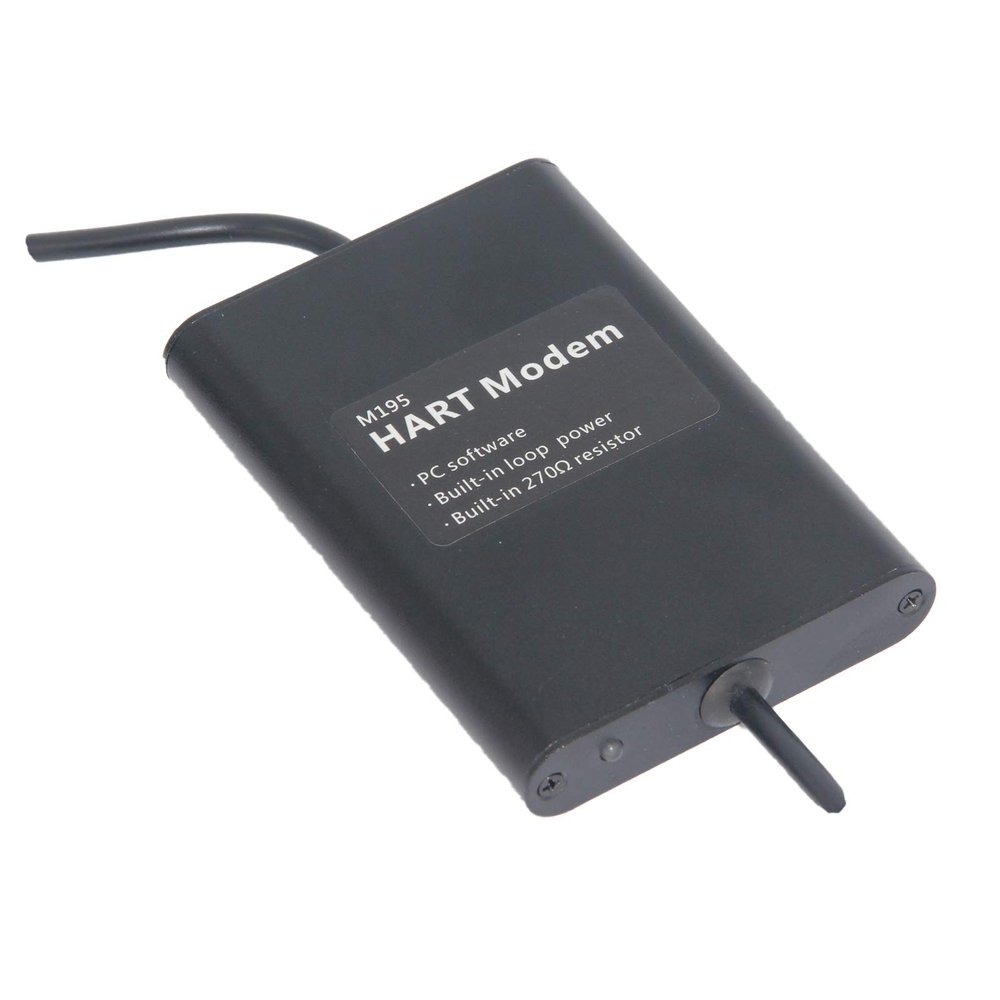

• The M195 HART Modem is a smart device configuration / debug tools, can be used for the production of intelligent. HART configuration,commissioning and on-site management, maintenance and so on, use HART configuration / debug tools in the production process to configuration, debugging,calibration, diagnostics the HART Intelligence equipment, can also be used for management, configuration running. HART smart field devices and monitoring process variables
• Structure design Solid metal shell. The wire, alligator clips and hart hooks are high strength.
• Software Provide free software. Operating system: Win95/98/ME/2000/XP/WIN7/WIN8/WIN10
• Built-in loop power supply The built-in loop power supply can power the transmitter, the HART line and the power supply line are combined.
• Built-in loop resistor The built-in loop resistor is useful when the loop resistance is less than 250 ohm. Galvanic isolation 1500 VDC isolation

HART communication Signal type HART signal, Bell-202 FSK.
Transmission Rate 1200bps
USB communication
Interface Type USB virtual serial port
Transmission Rate 1200bps
Built-in loop power
Interface Combined with HART wire.
Max output power 21.6VDC with 5% Precision, 45mA. Power supply
Interface Standard USB connector.
Max power 1.2 Watt
Isolation Galvanic isolation
1500VDC isolation between the transmitter and the PC.
Product Structure
Outline dimension
88mm x 61mm x 13mm (length x width x height)
Weight 80g
Operating environment
Operating temperature -20 C ~ +50 C
Ambient humidity 0 % ~ 95 %
Storage temperature -40 C ~ +85 C
Include:
modem x 1
packet x1
disk x 1
alligator clip x 2
hart hook x 2
manual x 1
