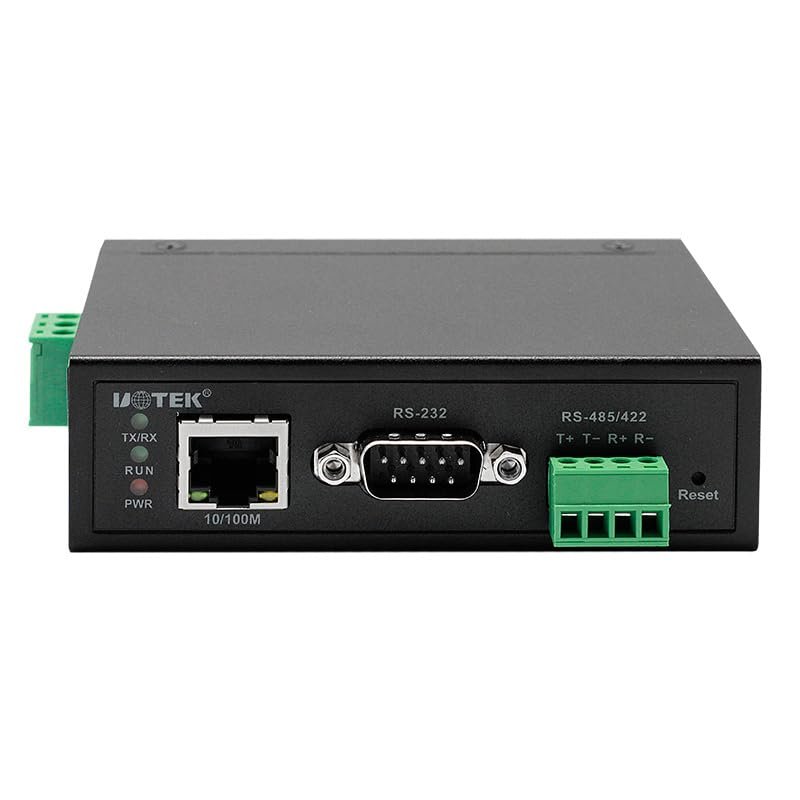

UOTEK RS232 to 100M Ethernet Device Server RS85 RS422 TCPIP 10/100M TCP/IP to 1 Port RS-232/485/422 Serial Device Server UT-6801A(DIN-Rail Mounted)

Description

• There is 1 RS232/RS485/RS422, to meet the application of multiple serial ports
• Support a wide baud rate range of 300-921600bps, suitable for applications between different devices
• Support multiple operation modes: VCOM, MCP, TCP SERVER, TCP CLIENT, UDP, Remote Pair mode, Modbus TCP SERVER, Modbus TCP CLIENT, MQTT.
• Support upgrade Web firmware upgrade, convenient for special applications in different occasions
• Wide power input (12~57.6VDC), suitable for different field power supply methods

UOTEK Industrial 10/100M TCP/IP to 1-port RS-232/485/422 Serial Device Server
Storage:128M
Ethernet interface: 10/100M(Built-in 1.5KV electromagnetic isolation) auto MDI/MDI-X Ethernet interface, RJ45 interface
Serial Standard: RS-232, RS-485, RS-422
Serial RS-232 port: DB9 male
Serial RS-485/422 port: 3.81 unplugged terminal block
Indicator light: Power indicator light PWR, Running indicator light RUN, Serial port transmit and receive indicator DATA.
Function buttons: 1 factory reset button RESET
Housing: Metal housing, protection level IP30
Storage temperature: -40~85C
Operating temperature: -40~85C
Relative humidity: 5% ~95% (Non-condensation)
Dimensions LWH: 100mm80.8mm30mmWithout mounting parts
Operating System: Based on Linux
Protocol support: ARP,IP,ICMP,UDP,TCP,HTTP,DHCP,SNMP,MQTT,MODBUS
Configuration method: Web browser, VCOM Utility(Virtual COM Only Windows)
Operating Mode: VCOM,MCP,TCP SERVER,TCP CLIENT,UDP,Remote Pair mode,Modbus TCP SERVER,Modbus TCP CLIENT,MQTT
Baud rate: 300-921600bps
Data Bits: 5,6,7,8
Stop Bits: 1,2
Check Bits: None,Odd,Even
Flow Control: RTS/CTS,DTR/DSR,XON/XOFFOnly RS-232
