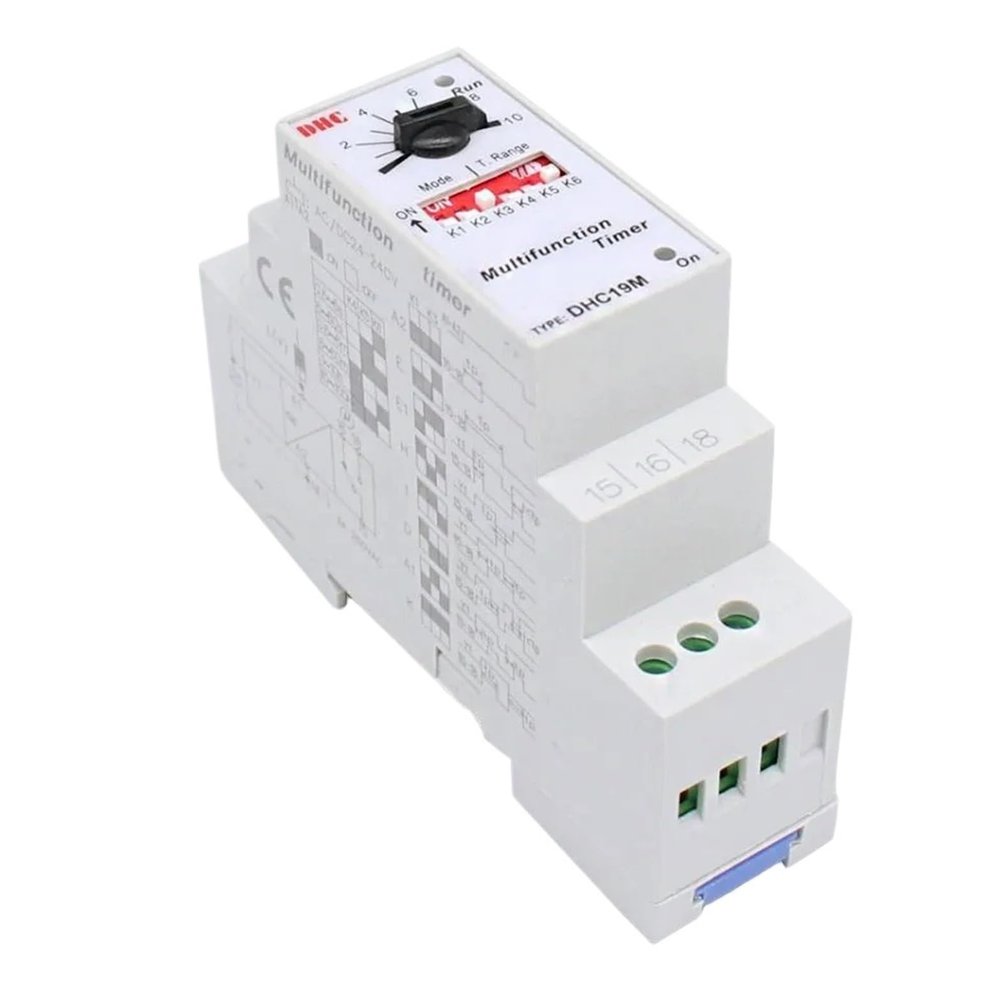

TOBAYA DHC19-M AC/DC 24-240V Multifunction Timer Time Relay Guide Rail Timer DHC19-M

Description

• Repeaters

Repeaters
Specifications
1.Rated Votage: AC/DC 24-240V
2.Time range: 0.06s-100h
3.Din rail mounting

1.Introduce
Universal supply voltage AC/DC 24-240V
8 functions:
-2 time functions controlled by supply voltage
-6 time functions controlled by control input
Time scale 0.6 s~100 hours devided into 7 ranges
Output contact: 1x changeover 3A
Output indication:
Red LED,flashing at timing
Green LED,lit as relay on
High accuracy, small volume, high reliability.
2.Specification
1.Supply voltage: AC/DC 24-240V (50/60Hz)
2.Impulse length: min.25ms/max.unlimited
3.Operating voltage range: Ue85%~110%
4.Reset time: 150ms
5.Supply voltage consumption: AC max:0.6VA DC max:0.6W
6.Control output: AC 250V 10A(Resistive)
7.Time range: 0.6s~100h
8.Mechanical life 10000000
9.Electrical life 100000
10.Time setting: Rotary switch
11.Time deviation: 5% mechanical setting
12.Repeat accuracy: 0.5% set value stability
13.Dimensions: 2460mm
14.Switch ON response time: 0.6S-100h
15.Switch OFF response time: 0.6S-100h
16.Mounting: DIN rail
17.Ambient temperature: Operating:-10C to 55C
