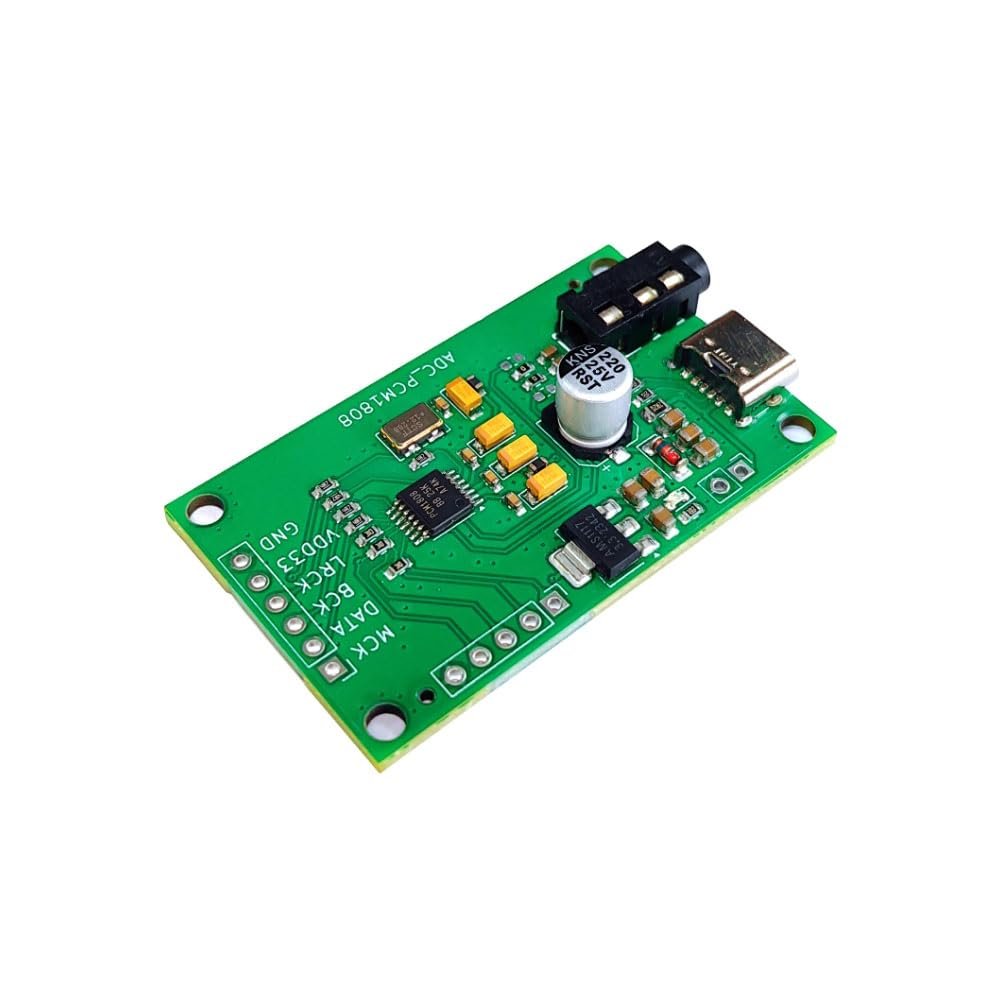

Taidacent 24Bit PCM1808 PCM1802 3.5mm Audio Stereo ADC Single-Ended Player Decoder Module Analog Audio to I2S Converter (PCM1808)

Description

• 1. Standard typec power supply, reserved pad for external power supply (positive pole near UsB side)
• 2. Optimized power supply design, independent power supply is more stable
• 3.3.5 standard headphone jack audio input, more convenient for external audio source
• 4. Use high-quality active crystal oscillator
• 5. Reserved pin header interface is 2.54 spacing Note: USB is only used for power supply and does not have data transmission function!

1. Standard typec power supply, reserved pad for external power supply (positive pole near UsB side)
2. Optimized power supply design, independent power supply is more stable
3.3.5 standard headphone jack audio input, more convenient for external audio source
4. Use high-quality active crystal oscillator
5. Reserved pin header interface is 2.54 spacing
Note: USB is only used for power supply and does not have data transmission function!
Power supply 5V USB type-c
Size 30*50mm
I2S parameter Standard I2S,master output,24bit/48K 256FS
Pin description
MCK: I2S MCLK output
DATA: 12S DATA output
BCK: I2S BCK output
LRCK: I2S LRCK output
VDD33: 3.3v output, reserved for external power supply
GND: ground
