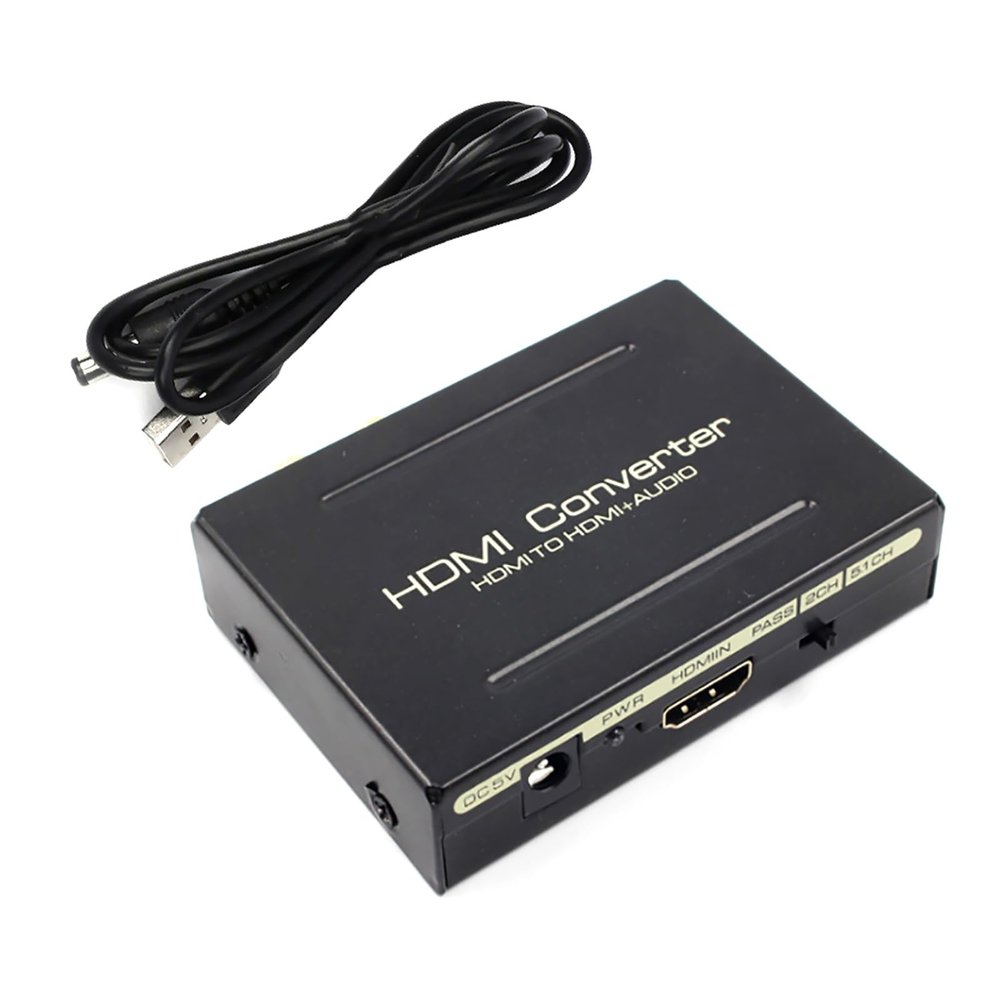

Supports 4K/2K/1080p Resolution Audio Extractor HDMI to HDMI + SPDIF + R/L Analog Audio Accessories

Description

Description:
One HDMI input convert to one HDMI + Audio (SPDIF + R/L) output
Input Resolution Up to 2160P. Compatible with 24/50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
HDMI to achieve the synchronization of audio signal separation. There are PASS / 2.0CH / 5.1CH three kinds of audio mode options.
Metal Casing Design, Overall Shielding without Signal Interference, Gold Plated Connector, Enhance HD Video Signals.
LED indication: When source of sink is working, corresponding LED is light.
Supports for TV and various Blu-ray player.
Need DC5V / 1A power input (We only offer a Power USB cable)

Specification:
HDMI resolution: 24/50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Support video color format: 24bit deep color 30bit,36bit
Audio output: L/R+SPDIF
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Input cable distance: 15m AWG26 HDMI standard cable
Output cable distance: 20m AWG26 HDMI standard cable
Power Supply: DC 5V (Need DC5V/ 1A power input, We only offer a Power USB cable)
Max working current: 500mA
Power adapter format: Input: AC(50/60Hz)100V-240V; Output: DC5V/1A
Operating Temperature range: (-15 to +55C)
Operating Humidity range: 5 to 90%RH(No Condensation)
Dimension(LXWXH): about 84.5 x 61.8 x 21(mm)
Weight: about 135g

Package included:
1 x HDMI Converter
1 x USB Power Cable
1 x User Manual
