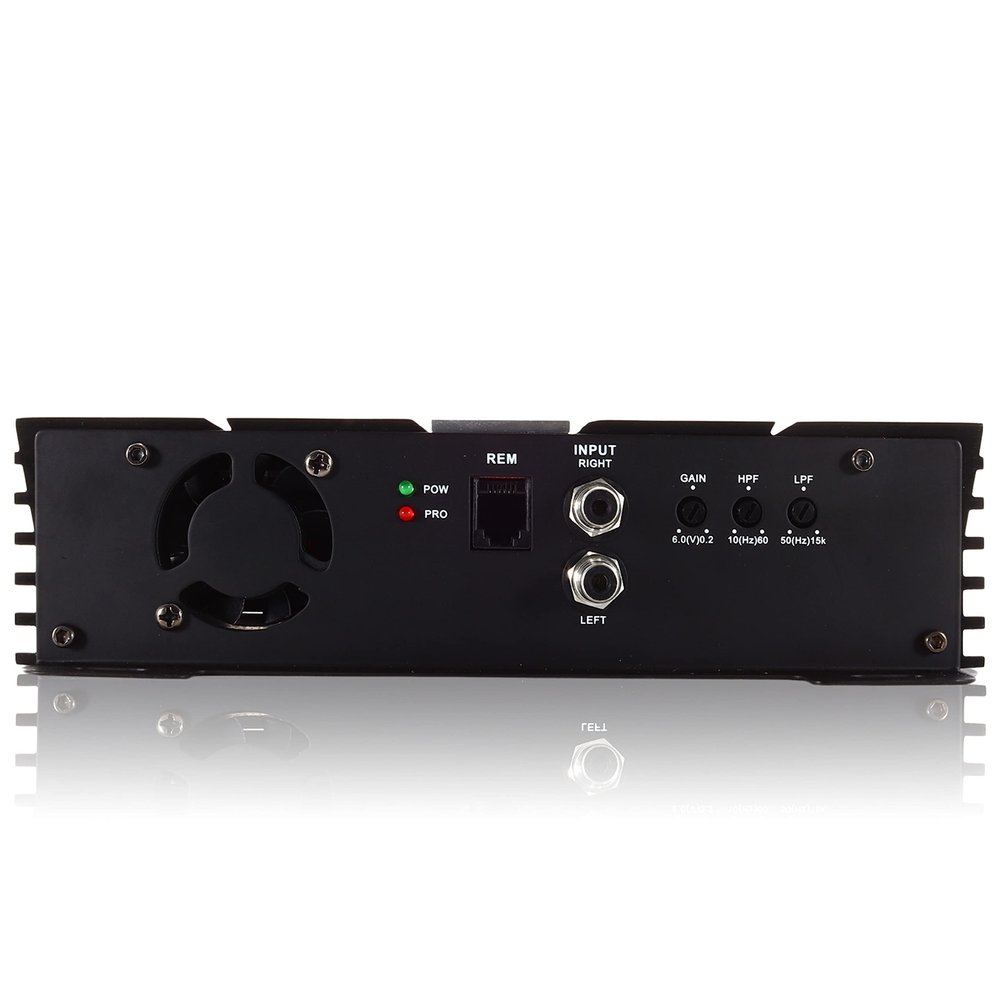

Sundown Audio SAE-1000D V.3 Monoblock 1000W RMS Amplifier SAEV3-1000D

Description

• Digital Class-D Mono Block Amplifier Dual MOS-FET PWM Power Supply 1 Ohm Stable Load 12 dB/Octave - Variable Low Pass Filter 12 dB/Octave - Variable Subsonic Filter 4 Way Protection Circuit (Thermal, Voltage Speaker short and DC Offset) Wired Remote Control
• Input Sensitivity 6V Max 2000 x 1 @ 1 ohms RMS 1400 x 1 @ 2 ohms RMS 700 x 1 @ 4 ohms RMS 1 OHM Stable Variable Low Pass Filter : 50HZ - 15kHZ -12dB/8 Variable Crossover Slope (LPF) Signal / Noise Ratio : 82DB Operation Voltage : DC 10V - 16V Power Input Recommended Fuse : 220 Amps Dimensions : 9.57 L x 9.96 W x 2.52 H

SAEv3-1000D - Sundown Audio Class D Monoblock Amplifier

Monoblock Class D Power Amplifier
RMS Power:1 x 1000W @ 1Ohm
RMS Power:1 x 650W @ 2Ohm
RMS Power:1 x 350W @ 4Ohm
Subsonic Filter:0 - 60Hz
LPF:50 - 15KHz
Frequency Response:10Hz - 15KHz
S/N:82dB
T.H.D.0.20%
Gain:0.2 ~ 6V

Input Impedance:22k ohms
Operation Voltage:DC 9-16V
Minimum Impedance:1 Ohm
Remote Volume Controller
Continuously - Variable Input Gain Control
Remote Turn-on/Turn-off Circuit
MOSFET Pulse Width Modulated Power Supply
Soft Turn-on Circuit
LED Power & Protection Indicators
Thermal Management Smart Cooler

Power Wires:
Power/Ground Input: 4 Ga AWG
Speaker Output:8 Ga AWG
Tiffany Style RCA
Dimensions (inch)L 7 1/2 x W 8 1/4 x H 2 1/8
*Length includes terminals

Recommended Wiring for best results - 100% OFC Copper Wire
