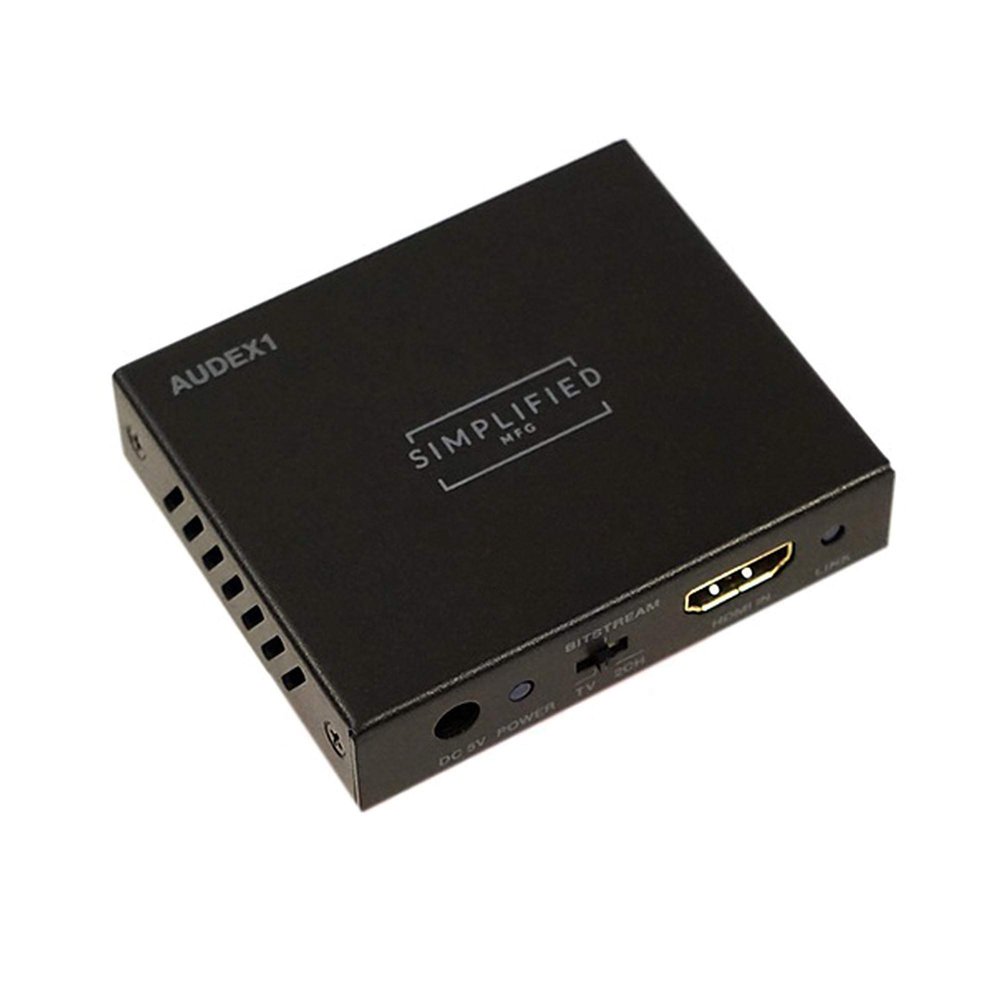

Simplified MFG HDMI Audio Extractor

Description

• lets you send audio signals from an HDMI source to non-HDMI-equipped A/V components
• HDMI in/out; 3.5mm analog and optical digital audio outputs
• passes 4K video at up to 60Hz, including HDR (High Dynamic Range) signals

The AUDEX1 HDMI 18Gbps Audio Extractor extracts audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Both input and output HDMI connections support video resolution up to 4K2K@50/60Hz (YUV444) while supporting HDR 8, 10, 10+, and Dolby Vision pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.

Primary Use: to extract audio from a media player and then put that audio on a SPDIF (for multi-channel and 3.5mm mini-jack for stereo.

Features & Benefits:
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
Supports HDMI High Bit Rate(HBR) audio pass through
Audio sample rates up to 192kHz
HDR 8, 10, 10+, and Dolby Vision (High Dynamic Range) pass through
Supports CEC bypass
3-Year Warranty

Technical:
HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2 and HDCP 1.4
Video Bandwidth: 18 Gbps
Video Resolutions: up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth: 8-bit, 10-bit, & 12-bit
HDMI Audio Formats (Pass-through): LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats: LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
L/R Audio Formats: Analog Stereo 2CH
ESD Protection: Human body model 8kV (air-gap discharge) & 4kV (contact discharge)
