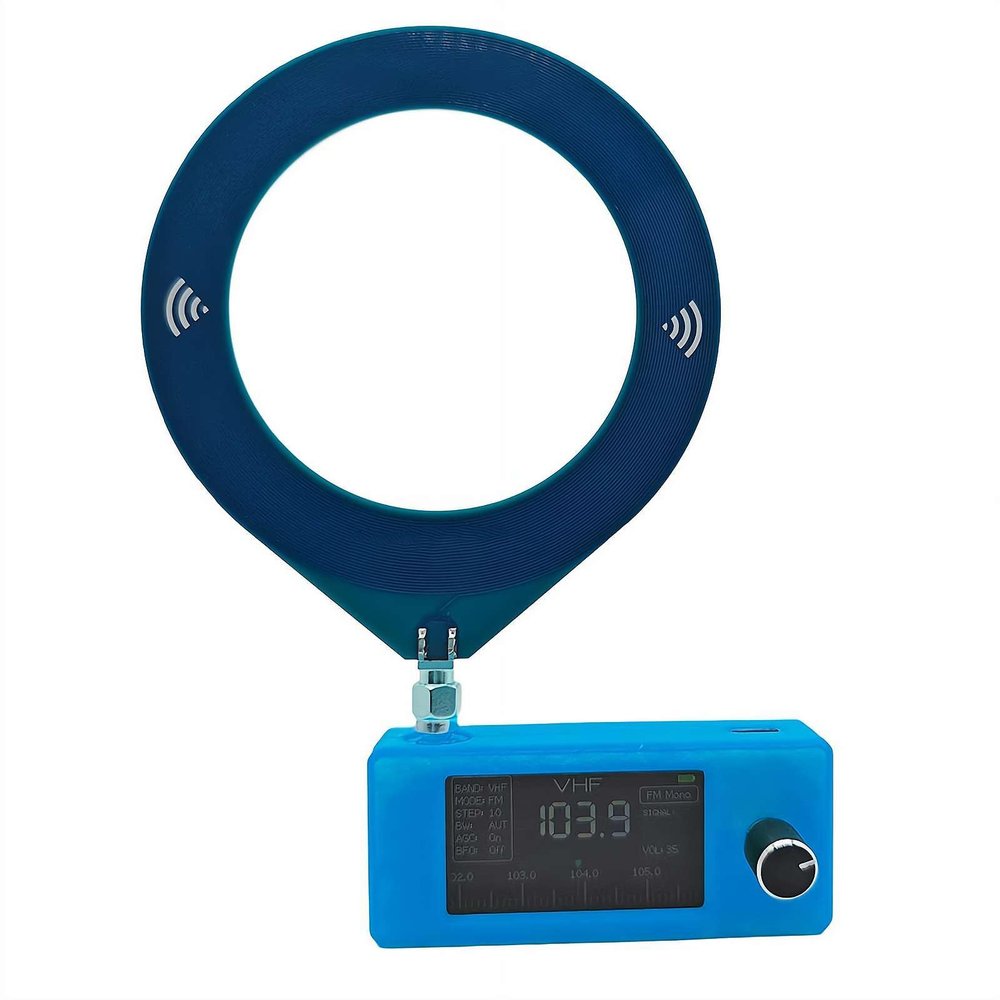

SI4732 Mini Portable Shortwave Radio Receiver, Mini Radio with 1.9" IPS Screen, ESP32-S3 Control, 0.5-108mhz FM AM (M W SW) LW SSB (LSB USB) Full Band Radio Receiver, Big Speaker & Best Reception

Description

• Enhanced Display: The ESP32-S3 portable radio features a 1.9-inch IPS high-definition color screen, ideal for clear and vibrant visuals during operation.
• Sturdy Construction: The shell of the radio is crafted using PETG 3D printing technology, combining durability and aesthetics to create a robust and visually appealing portable radio design.
• Advanced Signal Processing: Pocket radio receiver Utilizing the SI4732 DSP chip, this radio supports full-band broadcasting and multiple modes including LSB, USB, AM, and FM, ensuring versatile and reliable signal reception.
• Long Battery Life: With a built-in 800mAh battery, this portable radio offers a battery life of approximately 10 hours or more, providing extended usage without frequent recharging.
• Enhanced Reception: Portable shortwave radio receiver Equipped with a 70cm portable pull rod antenna, the radio ensures optimal signal reception and improved broadcasting quality for an enhanced listening experience.

1. Parameters of the pull rod version

0.5--108mhz pocket size SI4732 radio, receiver, mini radio, pull rod antenna

Features:

1. Using for ESP32-S3 master control, 1.9-inch IPS high-definition color screen
2. Using SI4732 DSP chip, supporting full-band broadcasting, LSB USB AM FM mode.
3. Built-in 800mAh battery, battery life is about 10 hours or more.
4. Equipped with 70cm portable pull rod antenna for reception.
5. Shell petg 3D printing.

Parameters:
Master control: for ESP-32-S3
Receiving frequency band: HF SW MW VHF
Screen: 1.9inch, 170*320
Charging interface: TYPE-C (fast charging is not available)
Audio interface: 3.5mm three-band stereo
Battery capacity: 800ma
Body size: 7.3*3.2*1.2
Body weight: 54g.

Frequency:
1. FM: 64MHz-108MHz
2. AM: 520kHz-1710kHz
3. SW: 2.3MHz-26.1MHz
4. LW: 153kHz-279kHz

Mode: FM/AM/LSB/USB (Note: does not support aviation band)

Operation Guide:
1. Double-click the knob on the main interface to enter the menu
2. On the menu page, rotate the knob to switch menus and modes, and click again to "confirm"
3. Rotate the knob on the main interface to switch frequency bands, and click again to "confirm"
4. Since the body is very small and cannot prevent headphone amplifiers, the volume output is low after inserting headphones, which is normal. You can connect external speakers to achieve a higher volume.
