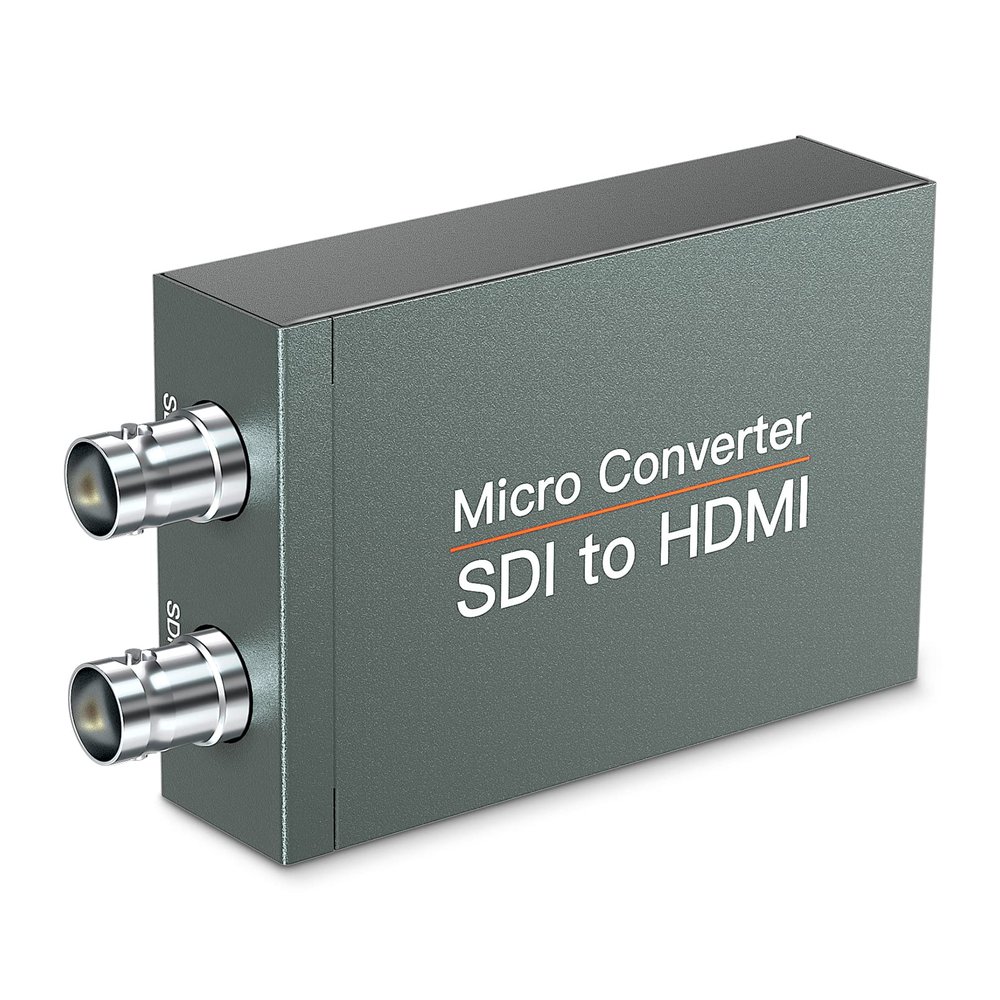

SEMZHENG SDI to HDMI Converter with Loop Output, 1080P Support, Easy Installation

Description

• SDI to HDMI ConverterIt converts 1080P HD-SDI/ 3G-SDI/ SD-SDI signal into HDMI to display on HDTV, monitor or projector, supports audio and video synchronous transmission. Note: only supports coaxial cable with BNC male connector. Not Support RF, CVBS, AHD, TVI, CVI Signal. Please make sure the output signal of your device is SDI.
• With SDI Loop-outThis SDI to HDMI converter supports SDI loop out for local display. The transferring data rate is up to 2.97Gbps. Supports 8 channels of 48KHz sampling rate of digital audio.
• Supports Long SDI CableInput: Up to 300ft (3G-SDI)/ 500ft (HD-SDI)/ 1000ft (SD-SDI); SDI Output (loopout): Up to 300ft. Bit rate support: 2.97Gbps, 2.967Gbps, 1.485Gbps, 1.4835Gbps, 270 Mbps
• Full HD 1080PSupport SDI input: 3G-SDI--1080p @60/59.94/50Hz (SMPTE 425M, Level A); HD-SDI--1080i @60/59.94/50Hz, 720P@60 /59.94/50Hz; SD-SDI-- NTSC @59.94Hz, PAL @50Hz.
• Plug & PlayStrong and durable metal shell, Easy to install in use. Plug and play.

Note:
1. This SDI to HDMI converter only works one direction, can not be used as HDMI to SDI.
2. Only Supports SDI signal, does not support RF, CVBS, AHD, TVI, CVI.
3. Maximum resolution supports Full HD 1080p, not support 4K.
4. When using ATEM with this device, please forcibly set the resolution of ATEM to 720P@60Hz.

This SDI to HDMI converter converts 1080P HD-SDI/ 3G-SDI/ SD-SDI signal into HDMI to display on HDTV, monitor or projector. It's widely used in broadcast television, outdoor large-screen display system, multimedia conference system, command and control center, traffic intelligence and machine tool.

Specification:
1. Input: 1 x BNC (SDI/ HD-SDI/ 3G-SDI)
2. Output: 1 x HDMI Type A out + 1 x SDI loop output
3. Input audio signal: SDI embedded 4. SDI input resolutions: 480i, 576i, 720P@30Hz/ 50Hz/ 60Hz, 1080i@50Hz/6 0Hz, 1080p@24Hz/ 25Hz/ 30Hz/ 50Hz/ 60Hz
5. HDMI Output resolutions: 720P@ 50/ 60Hz, 1080p@50/ 60Hz
6. SDI data rates: 270Mb/s, 1.485 Gbps, 2.97Gbps
7. Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
8. Power Supply: USB DC 5V/1A
9. One way SDI output, with the Re-clock function, can support multiple cascaded

Package List:
1 x SDI to HDMI Converter
1 x Power Adapter
1 x User Manual
