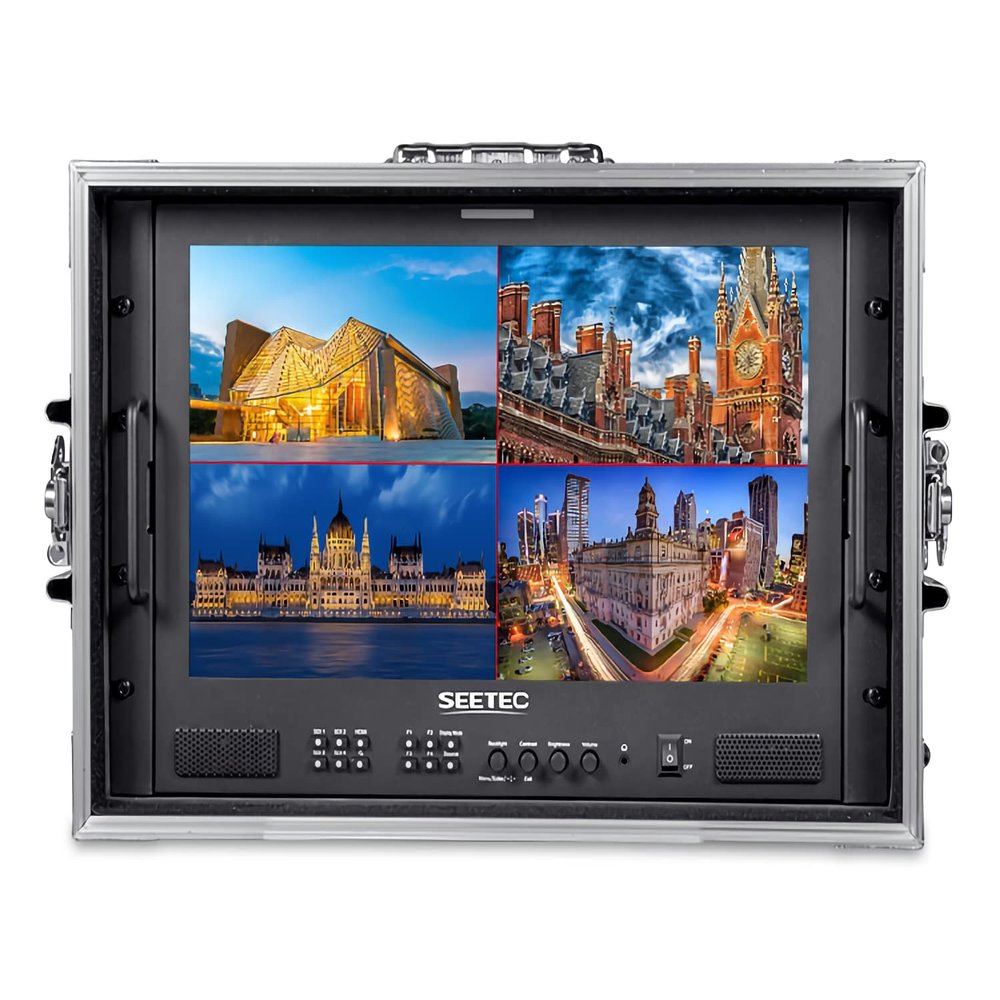

SEETEC ATEM173S-CO 17.3 inch Portable Carry-on Multi-Camera Director Monitor 3G-SDI HDMI Full HD 1920x1080 with Portable Aluminum case

Description

• SEETEC ATEM173S-CO is a full HD broadcast carry-on monitor, equipped with 4x3G-SDI inputs and outputs, 1 x HDMI input interface and RS485, GPI control interface. Adopts Rec.709 color standard, display vivid images and professional effects. Rugged and durable aluminium housing; With 3D-LUT, waveform, vectorscope, histogram, peaking focus and other wonderful functions, all of functions can be easily operated and controlled via the front panel buttons
• The ATEM173S-CO adopts a 17.3-inch LCD panel, with high resolution 1920x1080, accurate color reproduction, provides you natural and clear image; 300cd/ brightness, 700:1 contrast ratio, 178 wide viewing angle, allows you to see clearly no matter you monitor from which angle.
• Portable Aviation Aluminum Case Ideal choice for filming shooting: The ATEM173S-CO provides a aviation aluminium case, has the characteristics of dust-proof, waterproof, high temperature resistance, and corrosion resistance and so on. It is suitable for carrying and application in different environments, and provides a safer protection for the monitor.
• ATEM173S-CO monitors are the perfect choices to add SDI monitoring anywhere you need it. It comes with 4x3G-SDI signal inputs and outputs, suitable for multicamera shooting in crew, and simultaneous monitoring by multiple persons. In addition, it also with a HDMI input, RS485, GPI control interface, meet different needs.
• 3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash disk (up to load 36).

Key Features:

17.3-inch 1920x1080 full HD large screen
Portable carry-on aluminium case, ideal choice for location filming
Flexible and intuitive button operation, easy to use)
Mulitple display modes (single, PIP, quad)
Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 36)
With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
Multiple interfaces, meet different needs (4*3G-SDI inputs and outputs, 1*HDMI input, RS485, GPI)
Supports OSD Tally and LED Tally
Stereo Earphone output

Functions:

Focus Assist (Yellow, Red, Green, Blue, White five colors optional highlight over parts of the image in focus)
Zebra (70IRE, 80IRE, 90IRE,user)
Monochrome (gray, red, green, blue)
False Color
Timecode
Nine Grid
Safety Marker ( 70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
Center Marker
Marker Mat(16:9, 16:10, 4:3, 1.85:1, 2.35:1)
All Waves (can be adjusted left or right)
Parade(OFF, RGB Parade, Y, YUV Parade)
Vector
Histogram
RGB Histogram
Audio Meter
HDR
3D-LUT
Scan Mode (Under Scan, Over Scan)
Video Aspect (auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, user)
Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
Zoom (4X, 9X, 16X)
Freeze
Pixel to Pixel
Colortemp (6500K, 9300K, user)
Display Mode(full screen, PIP, quad)
