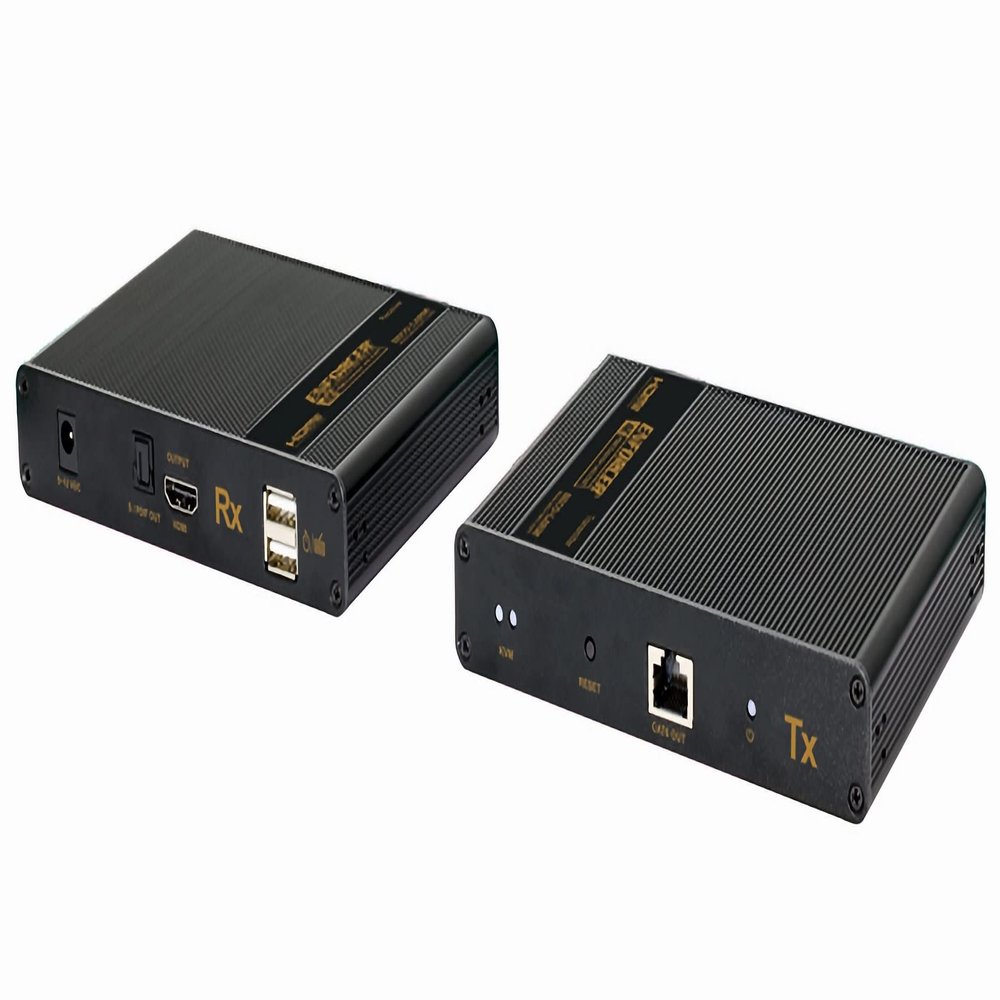

Seco-Larm MVE-AH1E1-42UQ 4K@60Hz HDMI Over Single Cat6 Extender with USB 2.0 KVM and Loop-Out; Range Up to 230ft (70m); Connect HDMI Equipment Using Low-Cost Cat6 UTP Cable

Description

• Display up to 4K@60Hz
• Zero latency transmission up to 230ft (70m) over single Cat6/7
• Supports USB keyboard and mouse (KVM)
• Supports point to point connections
• Transmitter includes HDMI loop-out

Seco-Larm MVE-AH1E1-42UQ 4K@60Hz HDMI Over Single Cat6 Extender with USB 2.0 KVM and Loop-Out; Range Up to 230ft (70m); Connect HDMI Equipment Using Low-cost Cat6 UTP Cable

The ENFORCER HDMI Extender with KVM allow you to transmit HDMI audio and video as well as a USB (2.0) signal up to 230ft (70m) over a single Cat6 cable using an active transmitter and receiver, allowing remote operation of a device such as a computer or NVR/DVR; The extenders also provide HDMI loop-out and KVM

Key Features:
-Display up to 4K@60Hz
-Zero latency transmission up to 230ft (70m) over single Cat6/7
-Supports USB keyboard and mouse (KVM)
-Supports point to point connections
-Transmitter includes HDMI loop-out

Specifications:
-Input video signal: 3.3V
-Input DDC signal: 5Vp-p (TTL)
-Maximum signal link range: 230ft (70m)
-Video formats supported: High-speed HDMI, HDCP 2.2
-Audio formats supported: LPCM, DTS HD, DTS Audio, Dolby Digital 5.1CH
-Output Video: HDMI
-Resolutions supported: 4K@60Hz, 4K@30Hz, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i, 16801050, 16801050, 1600900, 1366768, 1360768, 1280960, 1280800, 1280720, 1024768, 800600
-Range (Cat6/6A/7): Up to 230ft (70m)
-Video input connector: HDMI Type A 19-pin female
-Maximum input cable length: 26ft (8m) AWG24
-Video output connector: HDMI Type A 19-pin female
-Maximum output cable length: 26ft (8m) AWG24
-Cat6 Wiring standard: T-568B
-Operating voltage: 5~12 VDC
-Power supply: 5VDC@2A
-ESD Protection: 8kV (air-gap discharge), 4kV (contact discharge)
-Current Draw: Transmitter & Receiver: <4W
-Operating humidity: 0~90%
-Operating temperature: -4~140 F (-20~60 C)
-Dimensions: 5-13/16 x 4-1/2 x 1 inches
-Weight: 9.2-oz (260g)
