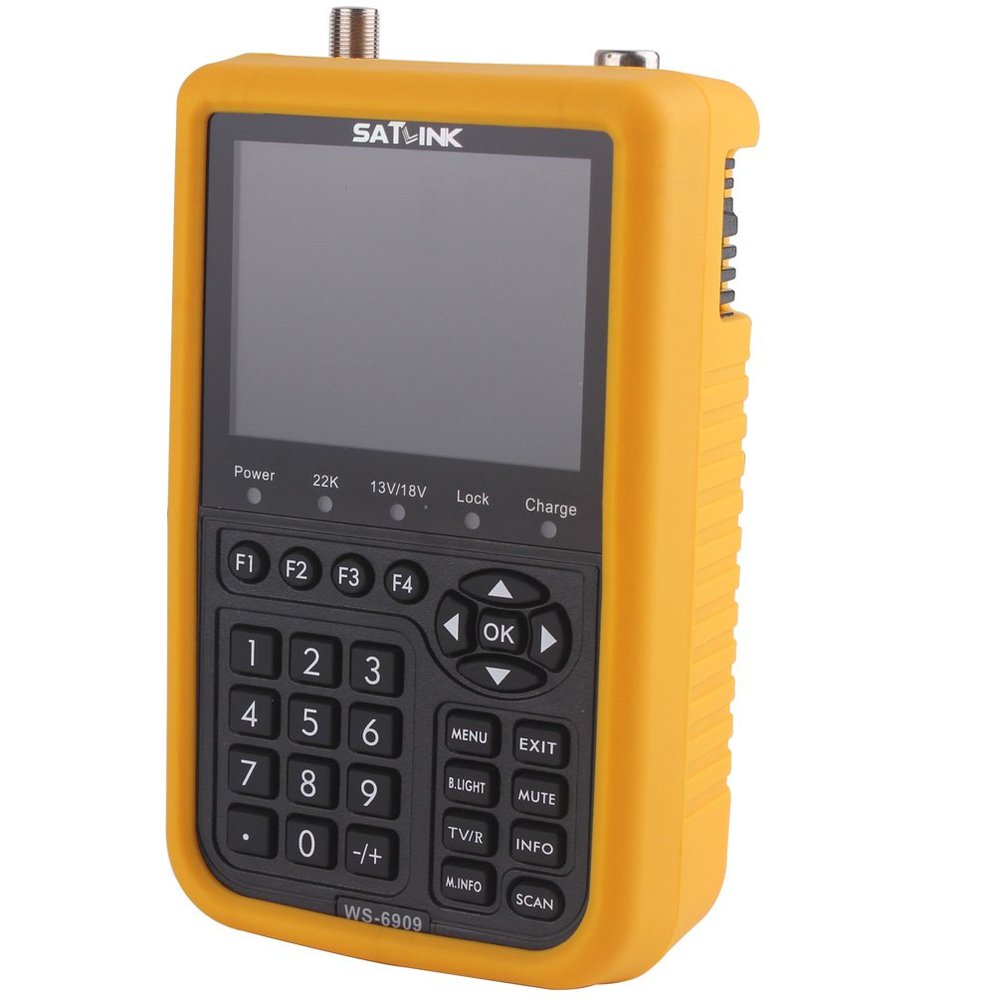

SATlink WS-6909 3.5 - Inch DVB-SandDVB-T Combo Satellite Signal Finder Meter

Description

• High quality and stable performance: it's with a microprocessor controller.
• 3.5" LCD color display, bigger menu window.
• Channel picture, signal strength and signal quality can be showed on LCD Screen after you set up your local DVB-S & DVB-T Parameter.
• It's with auto-protection for LNB short-circuit.
• It shows Azimuth and Elevation, CBER/VBER, S/N, signal strength and signal lock sound alarm.

WS-6909 DVB-T DVB- S(3.5 inch LCD Screen) Satellite Meter
Note: America not support DVB-T.
Introduction:
3.5 Inch High Definition TFT LCD Screen
Both AV IN And AV Out
8.4V/3000mAh Lion Battery Included
Max Operating Time:4 hours
12V/1.5A DC Adapter
Sound and Light Alarm for Locking Signal
USB Port For Software Upgrades
Speaker Integrated
DVB-S
Input Frequency 9502150MHz
Input Level -65 -25dBm
Input Impedance 75
Auto Calculate Angle of AZ ,EL
Support DISEQC 1.0,1.1,1.2 and 22khz Tone
Measurement Type: signal strength,quality; BER; S/N;PWR
Search Mode: Auto,Blind,Manual
LNB Power Supply:18/13V(IMax 400mA)
DVB-T
Frequency Range: 46MHz-862MHz
Level range:40dBV-110dBV
Input Impedance:75
Multichannel check
Demodulation:QPSK,16QAM,64QAM
Measurement Type: signal strength,quality; MER; S/N;PWR
Search Mode: Auto,Manual
ANT Power Supply:5V/12V/24V
For the first time in a economical digital meter, you are now able to view the actual channel on the screen of the meter. Now you can quickly and accurately align the satellite AND you can instantly check the stability of the channel right on the screen of the meter. Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user. There is never a need to send your meter in for a upgrade.
Meter never needs to be returned for re-calibration due to the unique calibration system built in to the meter. Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.
Package Include:
1 x WS 6909 Satellite Meter
1 x Power Adaptor
1 x AV Cable
1 x Car Charger Cable
1 x Silicone Case
