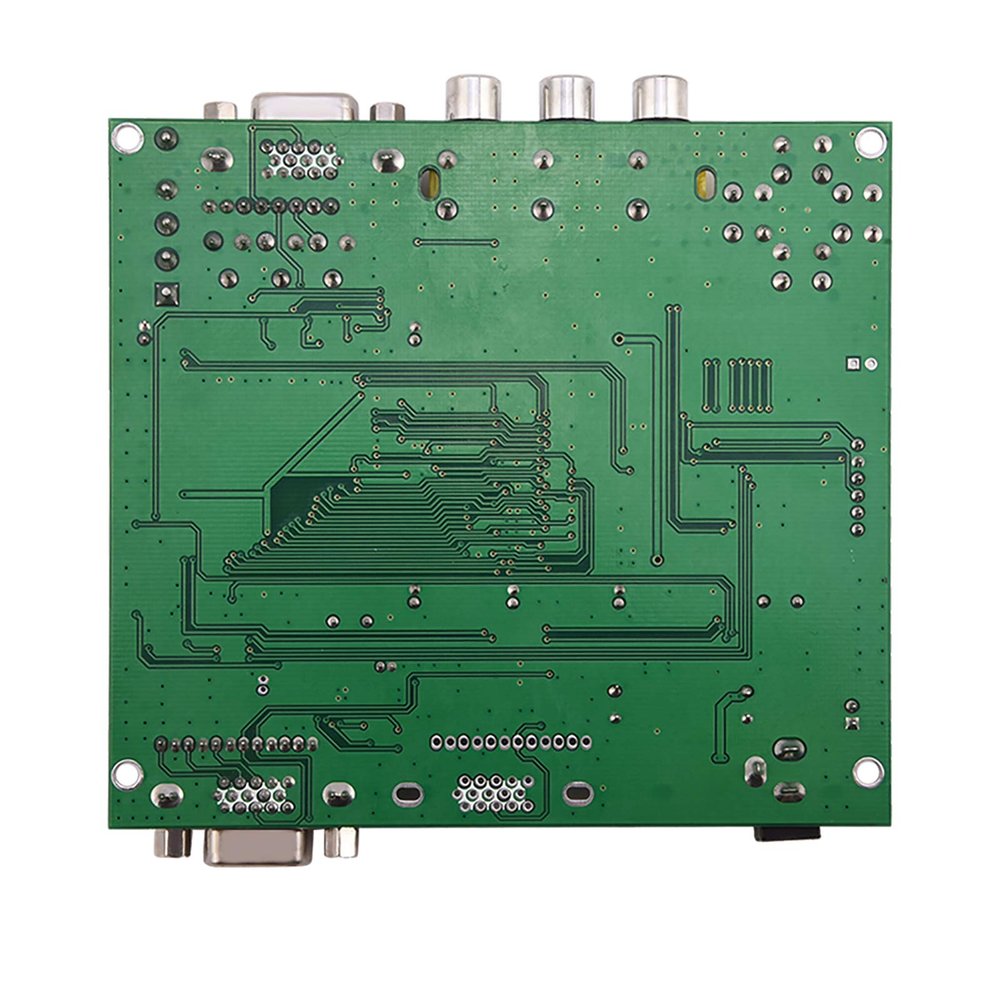

RiToEasysports CGAEGAYUVRGB to VGA Converter Board for Games, VGA Output for Various Monitors, EnglishChinese Display

Description

• [HIGH-DEFINITION VIDEO] Experience superior video quality with CGA/EGA/VGA/YUV Component to VGA conversion.
• [MULTIPLE RESOLUTIONS] Supports various VGA output resolutions for optimal viewing, including 640x480, 800x600, 1024x768, and 1360x768.
• [AUTOMATIC SIGNAL DETECTION] Auto scan function recognizes CGA/EGA/VGA/YUV Component signals without manual input.
• [CUSTOMIZABLE SETTINGS] Adjust image position and zoom control for a tailored display experience.
• [MULTILINGUAL DISPLAY] On-screen display available in English and Chinese for improved accessibility.

1. Convert CGA/EGA/VGA/YUV Component input signal to VGA video signal.
2. Supports CGA/EGA/VGA/YUV Component Signal Input. Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768).
3. CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz). YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p).
4. On Screen Display (English and Chinese). Supports image position control & image zoom control.
5. True digital 24-bit A/D converter for true 16.7-million color conversion. Supports all types of VGA monitors (CRT, LCD, PDP, Projector, etc).

Specification:
Features:
Convert CGA/EGA/VGA/YUV Component input signal to VGA video signal.
Supports CGA/EGA/VGA/YUV Component Signal Input.
Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768).
CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz).
YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p).
On Screen Display (English and Chinese).
Supports image position control & image zoom control.
True digital 24-bit A/D converter for true 16.7-million color conversion.
Supports all types of VGA monitors (CRT, LCD, PDP, Projector, etc).
Specifications:
Input Power: DC 5V 0.5V (2A) P7 or P9
Input Signal:
CGA / EGA: 14.5kHz ~ 16.5kHz / 23.5 ~ 25.5kHz / 30.5 ~ 32.5 kHz (Auto scan) P3 or P11 or P10
RGBHV: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11
VGA: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11
Ypbpr: 480p, 576p, 720p, 1080p (Auto scan) P2
Ycbcr: 480i, 576i, 720i, 1080i (Auto scan) P2
Output signal:
VGA: 640 * 480, 800 * 600, 1024 * 768, 1360 * 768 P4 and P13
User controls:
Input , Image Zoom, Input Zoom, Image Position, Output resolution, R/G/B gain adjust. MENU KEY R/G/B VR
Color: Green
Size: Approx. 11.5 x 10.5 x 1.6 cm / 4.53 x 4.53 x 0.63in
Color: Green
Material: ABS
Package Weight: About 112g
Menu Control:
'MENU' open OSD menu, and enter.
'UP' up and increase.
'DOWN/AUTO' down and reduce.
Press this key: auto scan CGA/EGA signal
Press this key over 5 second and release: reset system (this is invalid when you open OSD menu)
'SW' input signal Ypbpr/RGBS/RGBHV (this is invalid when you open OSD menu).
'Clamp sp' & 'Clamp' please don't adjust this , except the monitor has black item or picture discoloration.
For more functions control, please look at OSD to operate.
Package Included:
1 x Converter Board
1 x 6Pin Signal Wire
1 x 2Pin Power Supply Wire
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
