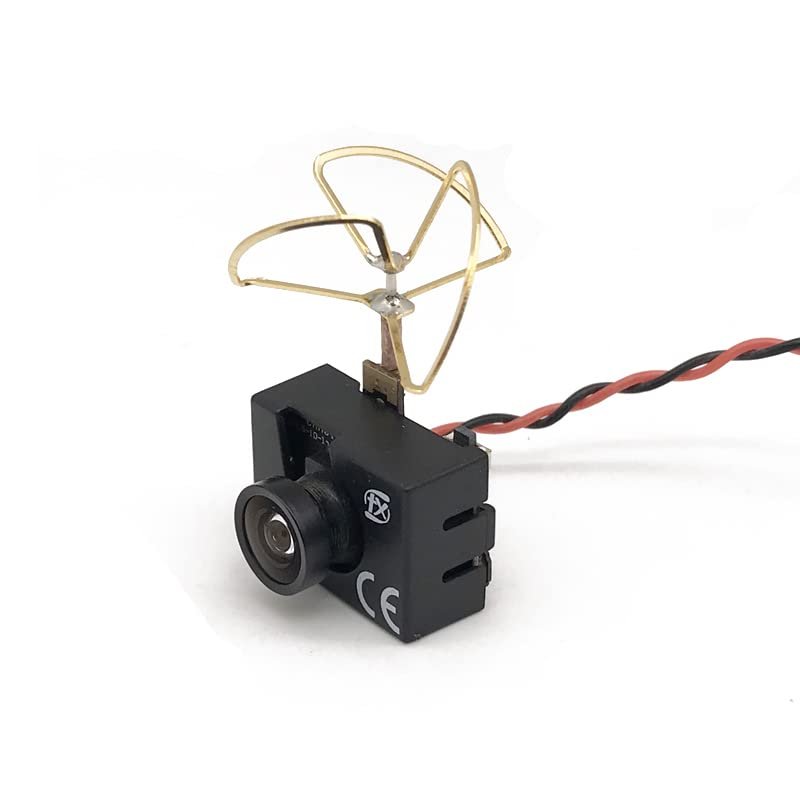

Replacement Part For 5.8G VTX-CAM 40CH 25mW Av Transmitter With Micro FPV 600TVL Camera For RC FPV Drone Car Part

Description

• Material: Composite Material
• Tool Supplies: Assembled class
• Upgrade Parts/Accessories: Frame
• RC Parts & Accs: Transmitters
• Size: mini size

Item Description:
5.8G 25mW 40 Channel AV Transmitter With 600 TVL Camera
Features:
1. Micro Size and Light weight
2. Easy installation for racing drone
3. Five bands 40 channels with Raceband
4. Button Control Instead Of Switch
5. Push button operation, long press for band, short press for channel
6. 2 row LED indicators, 5 LED for band, 8 LED for channel
Frequency Table
Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency Band B 5733 5752 5711 5790 5809 5828 5847 5866
Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945
Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880
Frequency Band R 5658 5695 5732 5769 5806 5843 5880 5917
Specifications:
Item Name:5.8G 25mW Transmitter With 600TVL Camera
Output power: 25mW
Input power: 2.55V
Current Consumption: 230mA
Camera resolution: 600TVL
Min illumination: 1 lux
Field of view: 120 viewing angle
Video output: NTSC
Frequency: 5.8GHz 5 bands 40 channels, with Raceband: 5658-5917MHz
Size: 20 x 17 x 38mm/0.8 x 0.7 x 1.5 inch
Package size: 82 x 54 x 40mm/3.2 x 2.1 x 1.6 inch
Weight: 6g
Package weight: 42g
Package Included:
1 x 25mW VTX-Cam
1 x manual
Item Specification:
Material: Composite Material
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Frame
RC Parts & Accs: Transmitters
Size: mini size
Use: Vehicles & te Control Toys
Quantity: 1
Technical parameters: Value 4
te Control Peripherals/Devices: Receivers
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
Wheelbase: Bottom Plate
