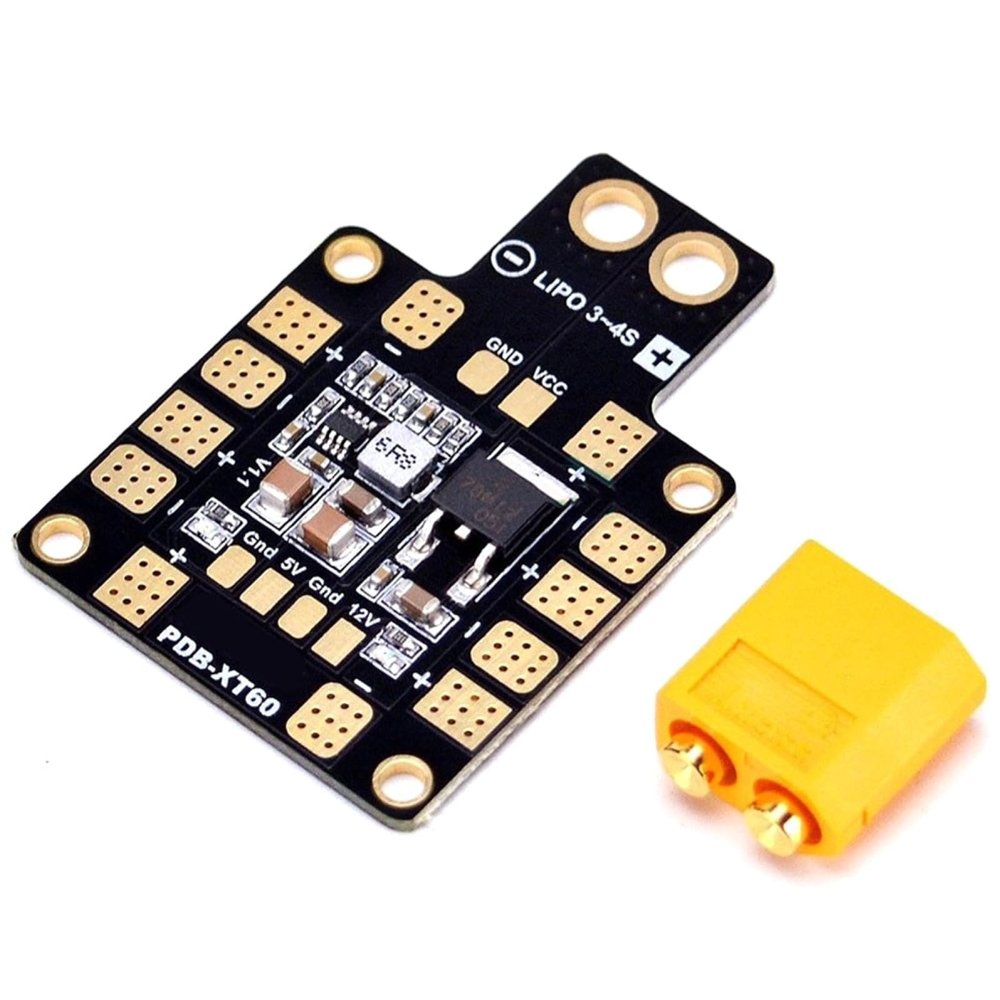

RC Drone Dual BEC PDB XT60 Board Mudule Power Distribution Board Power for FPV

Description

• Input voltage range(3S-4S Lipo operation): 9-18V DC
• Dual BEC: 5V/2A synchronous rectification switch BEC, 12V/0.5A linear BEC
• Distribution board current: 4*25A
• BEC 5V ripple: 40mV (Vin=16V, Vout=5V@2A load)
• Mounting: 30.5 x 30.5mm, 3mm

Features:
Regulated 5V&12V outputs
LED power indicators (5V&12V outputs)
6 ESC outputs&1 pair VCC/GND pads

Specifications:
Input voltage range(3S-4S Lipo operation): 9-18V DC
Dual BEC: 5V/2A synchronous rectification switch BEC, 12V/0.5A linear BEC
Distribution board current: 4*25A
BEC 5V ripple: 40mV (Vin=16V, Vout=5V@2A load)
Mounting: 30.5 x 30.5mm, 3mm
Weight: 11g(w/ XT60)
Size: 36 x 50 x 4 mm
Compatible with racks width less than 48mm

Package Content:
1 x PDB Board
1 x XT60 Connector

Note:
The PDB-XT60 has been engineered to provide the highest possible performance and reliability in a 36 * 50mm & 4 layers PCB.
It distributes power from a Lipo pack to 6 ESCS, as well as providing synchronised regulated DC 5V outputs&linear regulated DC 12V for powering cameras, servos, RC receiver, flight controllers,video transmitters, LEDs, etc.
It offers a XT60 socket to connect the Lipo pack conveniently.
