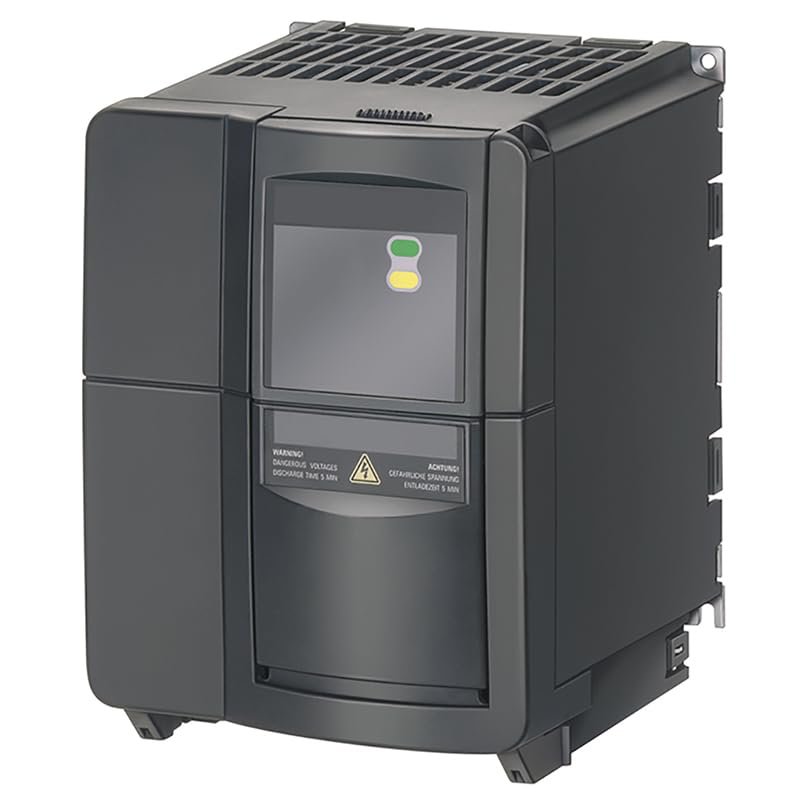

QAZxmxs New 6SE6440-2UD23-0BA1 6SE6440-2UD24-0BA1 6SE6440-2UD25-5CA1 Module Warranty for one Year (6SE6440-2UD23-0BA1)

Description

• Net Weight (kg): 3.3 Kg
• Packaging Dimension: 235.00 x 180.00 x 250.00mm
• without filter 380-480 V 3 AC +10/-10% 47-63 Hz constant torque 3 kW overload 150% 60 s, 200% 3 s square-law torque 3 kW 202x 149x 172 (HxWxD) degree of protection IP20 ambient temperature -10+50 C
• With its state-of-the-art features, this remarkable product guarantees precision, efficiency, and optimum operational excellence.

Frame Size B - 149mm Wide x 202mm High x 172mm Deep. IP20. Overload - 150% x 60seconds. Speed Control Range - 0Hz to 650Hz. Braking - To 200 Ohm minimum external resistor (not supplied) 2 Analogue Inputs, 6 Digital Inputs, 2 Analogue Outputs, 3 Relay Outputs Input Current - 10A Input Voltage - 3ph 380-480V 10%, 47-63Hz Wall mount in clean environment or cubicle mount. Rated -10 to 50C Ambient. Ventilation space above and below - 100mm. Ventilation space at sides - 0mm (drives can be mounted side by side). Mounting via 4 x M4 Bolts.
