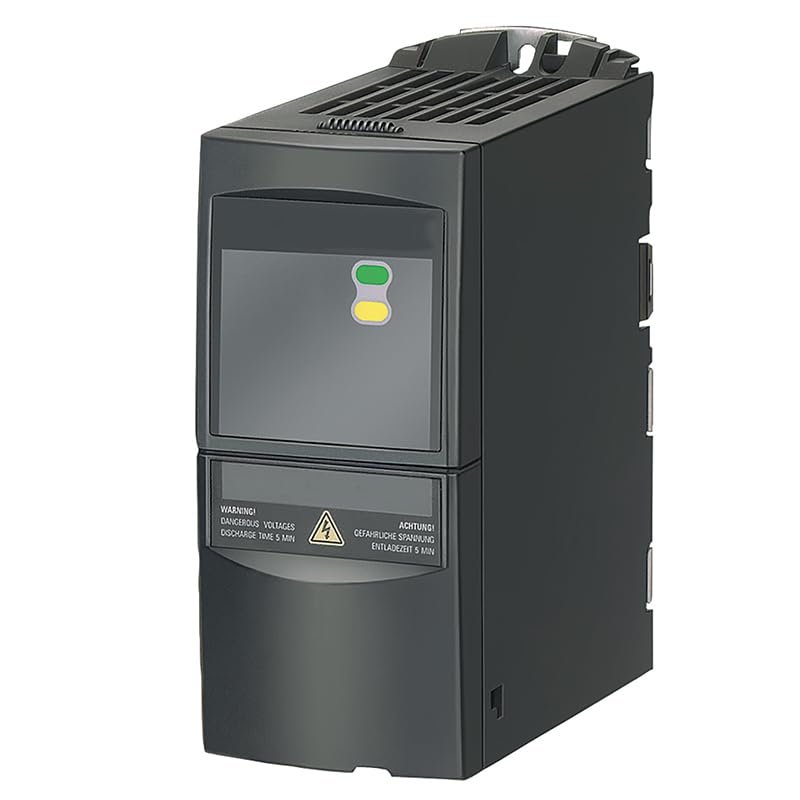

QAZxmxs New 6SE6440-2UD21-1AA1 6SE6440-2UD21-5AA1 6SE6440-2UD22-2BA1 Module Warranty for one Year (6SE6440-2UD21-5AA1)

Description

• Net Weight (kg):1.300 Kg
• Packaging Dimension:90.00 x 190.00 x 180.00MM
• without filter 380-480 V 3 AC +10/-10% 47-63 Hz constant torque 1.5 kW overload 150% 60 s, 200% 3 s square-law torque 1.5 kW 173x 73x 149 (HxWxD) degree of protection IP20 ambient temperature -10+50 C

Frame Size A - 73mm Wide x 173mm High x 149mm Deep. IP20. Overload - 150% x 60seconds. Speed Control Range - 0Hz to 650Hz. Braking - To 500 Ohm minimum external resistor (not supplied) . 2 Analogue Inputs, 6 Digital Inputs, 2 Analogue Outputs, 3 Relay Outputs Input Current - 5.9A Input Voltage - 3ph 380-480V 10%, 47-63Hz Wall mount in clean environment or cubicle mount. Rated -10 to 50C Ambient. Ventilation space above and below - 100mm. Ventilation space at sides - 0mm Mounting onto symmetrical DIN rail or use 2 x M4 Bolts.
