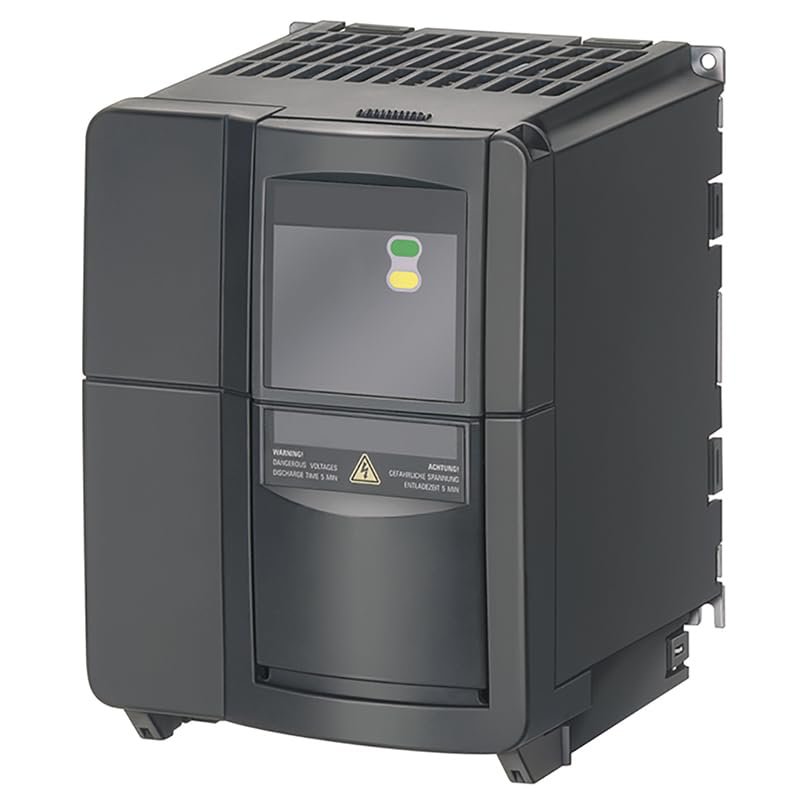

QAZxmxs New 6SE6440-2UC21-5BA1 6SE6440-2UC22-2BA1 6SE6440-2UC23-0CA1 Module Warranty for one Year (6SE6440-2UC21-5BA1)

Description

• Net Weight (kg): 3.300 Kg
• Packaging Dimension: 235.00 x 180.00 x 250.00MM
• without filter 200-240 V 1/3 AC+10/-10% 47-63 Hz constant torque 1.5 kW overload 150% 60 s, 200% 3 s square-law torque 1.5 kW 202x 149x 172 (HxWxD) degree of protection IP20 ambient temperature -10+50 C

Frame Size B - 149mm Wide x 202mm High x 172mm Deep. IP20. Overload - 150% x 60seconds. Speed Control Range - 0Hz to 650Hz. Braking - To 100 Ohm minimum external resistor (not supplied) 2 Analogue Inputs, 6 Digital Inputs, 2 Analogue Outputs, 3 Relay Outputs Input Current - 14.4A Input Voltage - 1ph 200-240V 10%, 47-63Hz Rated -10 to 50C Ambient. Ventilation space above and below - 100mm. Ventilation space at sides - 0mm (drives can be mounted side by side). Mounting via 4 x M4 Bolts.
