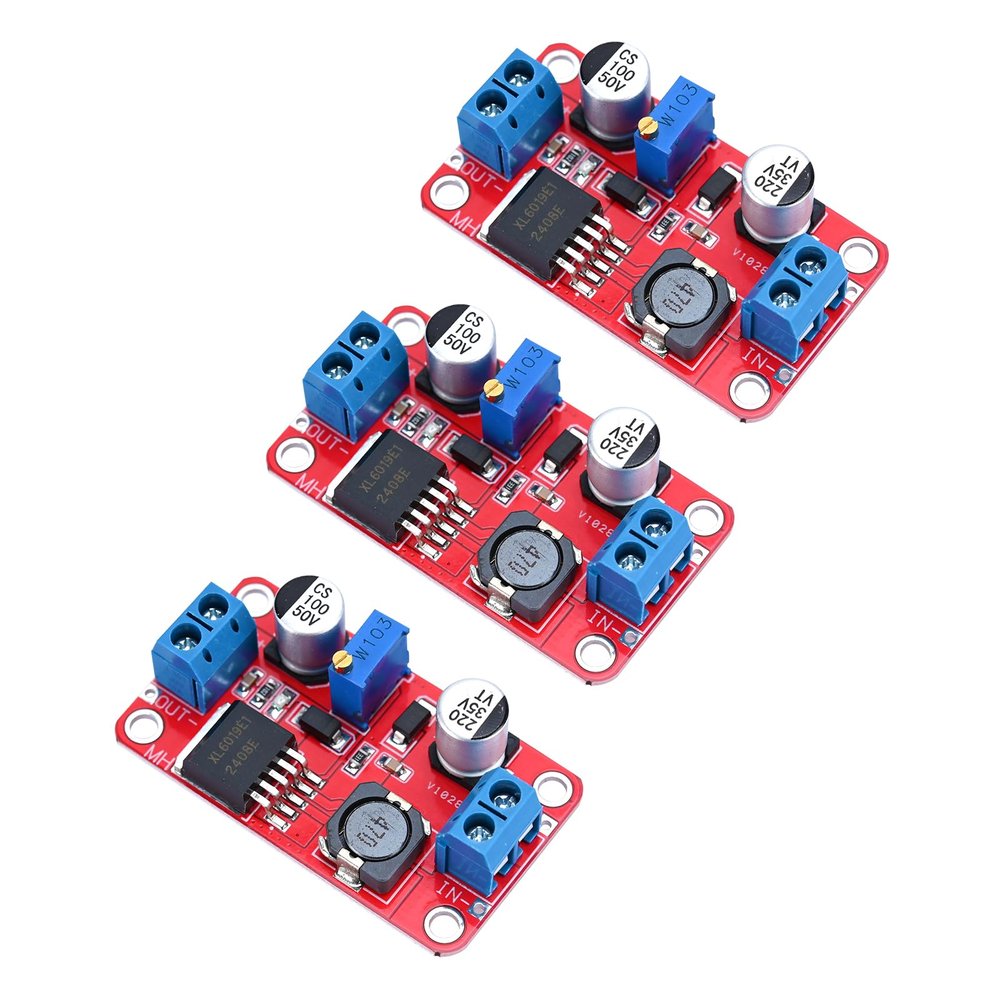

Podazz 3Pcs XL6019 DC-DC Adjustable Boost Power Module 5A High Power Current DC to DC Boost 5V 6V 12V 24V 3-35V to 5-40V

Description

• Advanced Boost TechnologyThis fully integrated solution offers a conventional constant voltage output with a BOOST function, featuring an integrated MOSFET that minimizes the need for external components, leading to a more compact and cost-effective system .
• 5A Current CapacityThe XL6019 module is a high-performance DC-to-DC adjustable boost power supply designed to handle up to 5A of current, making it suitable for a variety of applications requiring reliable power conversion.
• User-Friendly Voltage AdjustmentFine-tune the output voltage using the blue potentiometer knob (counterclockwise for general reduction, clockwise for increase), and monitor the output with a multimeter to ensure it meets your specific voltage requirements .
• Enhanced Safety FeaturesThe module is equipped with built-in over-temperature protection and a comprehensive overcurrent protection circuit, ensuring high reliability and safe operation throughout its use .
• Proper Connection GuidanceIt is crucial to connect the input and output terminals correctly to ensure the module functions as intended and to maintain safety standards .

Product Description:
MS + -> Positive; IN ---> Negative;
OUT + -> Positive; OUT ---> Negative
Input Voltage: DC 3-35 V(40V MAX)
Output Voltage: DC 5-40V ( 45V MAX Adjustable) Input Current: 5A (MAX)
Conversion efficiency: 94% (MAX)
Output ripple: 100mv (MAX)
Switching Frequency: 220 kHZ
Working Temperature: Industrial (-40 C to + 85 C)
Voltage regulation: 0.5%
Load regulation: 0.5%
Size: Approx 50 * 28 * 13mm (L * W * H)
Product Features:
1. Adopt the conventional BOOST fully integrated constant voltage output solution, internally integrated MOSFET, few peripheral devices, and low system cost
2. Wide voltage range input, input voltage up to 35V
3. Adjustable output voltage, up to 40V
4. Built-in over-temperature protection, over-current protection, full set of reliability protection circuits, high reliability
5. System conversion efficiency can be more than 90%, convenient for thermal design; 6. TO263-5L standard package, suitable for boost applications within 30W. 7. Connect the power supply (3-35V), the power indicator light is on, and the module works normally.
8. Adjust the blue potentiometer knob (generally counterclockwise rotation for boost, clockwise rotation for buck) and use a multimeter to monitor the output voltage until the required voltage is reached.
9. It is recommended to use a current within 2 for long-term work, and add a heat sink (output above 10W); because it is a boost module, in order to ensure output stability, please keep a small 1.5V voltage difference.
