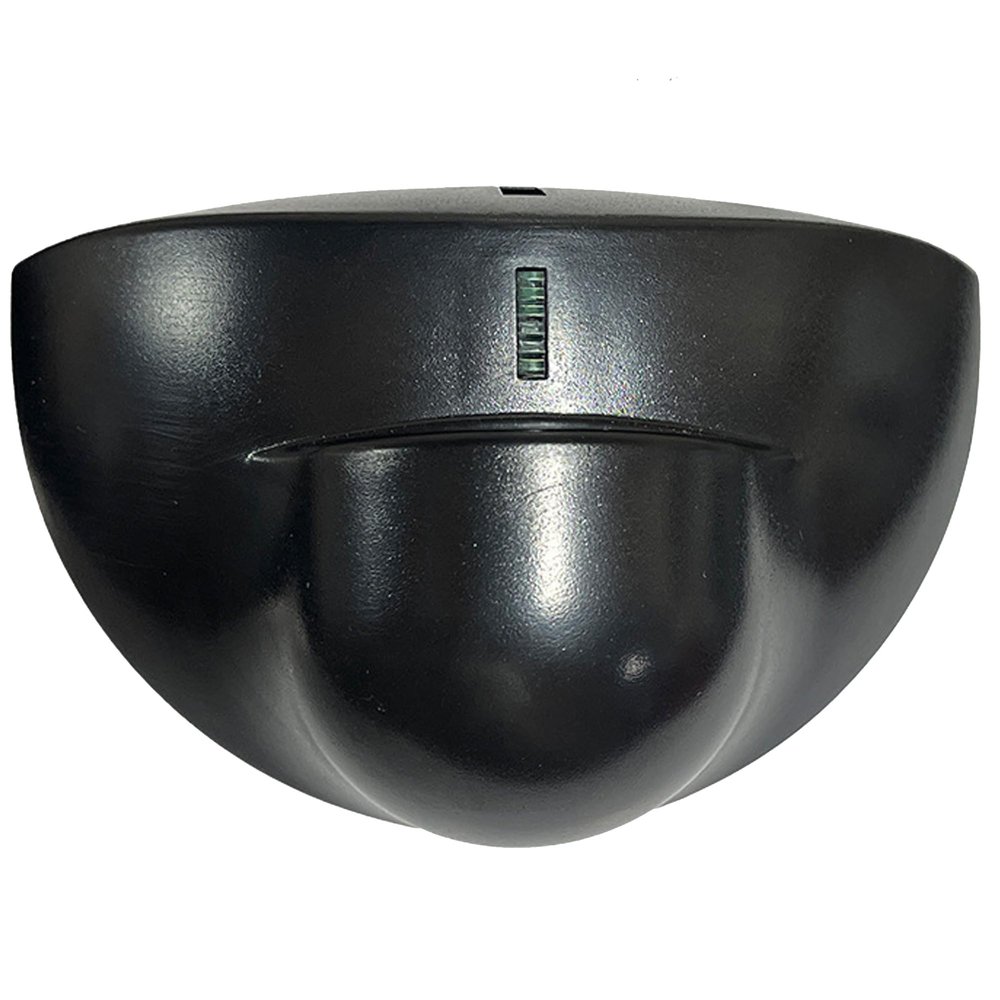

PIR Motion Sensor, Automatic Door Sensor Switch, Exit Infrared Detector, Request to Exit Access Control, Outdoor Gate Opener, 24 GHz Motion Detector

Description

• 24 GHz microwave and smart microprocessor of this motion detector provide instant, ultra-reliable detection
• The infrared detectors movement-only trigger eliminates false alarms from wind, shadows or pets
• NO (Normally Open) + COM relay contactspairs with ANY access-control panel, power supply or master controller
• The motion detector features high sensitivity, <100 ms response keeps traffic flowing smoothly
• The sensor switch is ideal for commercial lobbies, industrial gates, sterile labs. Combine with your existing keypad, card reader or push-button panel for a complete exit system

SPECIFICATION
-Item Dimensions: 1.96"D x 4.33"W x 3.14"H
-Item Weight: 9.2 ounces
-Material: ABS
-Transmit Frequency: 24 GHz
-Transmit Power: <20 dBm EIRP
-Frequency Density: <5 mW/cm
-Mounting Height Options: 3 / 5 / 6 / 7 / 8 m
-Tilt Range: 090 vertical, 30 horizontal
-Detection Area: 4 m (W) 2 m (D)
-Minimum Detection Speed: 5 cm/s
-Supply Voltage: 1227 V AC/DC
-Supply Frequency: 5060 Hz
-Power Consumption: <2 W (VA)
-Max contact voltage: 42 V AC/DC
-Max contact current: 1 A (resistive)
-Max switching power: 30 W DC / 60 VA AC
-Operating Temperature: 20 C to +55 C
-Protection Rating: IP54
-Housing Material: ABS plastic
-Dimensions: 4.72*3.15*1.97in
-Weight: 0.47lbs
-Cable Length: 2.2 m/86in
PACKAGE:
1* PIR Motion Sensor
NOTE:
Mount at 34 m height to blanket a 4 m (W) 2 m (D) zone in front of any door.
