PHATSAT USA Made Quad-Shield RG6 Coaxial Cable, Weather-Shield Wire for TV, Satellite & Internet, White, 50 ft

Description

• Quad shield. 60% / 40% braids with two foil layer protect the data signal from noise interference. 18AWG solid core, 3Ghz swept tested

Individually hand crafted, swept tested in the USA. Quadshield RG6 designed for durability and flexible for ease of use. CM jacket fire resistance rating defined in Article 800 of the NEC. In the case of CM, the standard outlines general use, or use in cases where the fire code does not place any restrictions on cable type. The connectors are compressed onto the cable's jacket to ensure resilience to withsatnd abrasion from installation works. Each cable are swepted tested and made to strict standard specifications with 6 staging quality control procedures.

CABLE APPLICATIONS Over the Air (OTA) Digital High DefinitionTV antenna with signal booster Ultra High Definition (UHD) 4k Cable TV Ultra High Definition (UHD) 4k Satellite TV Gigabit High Speed cable internet service remote sensor, RDF modulators and devices Signal amplifier for various applications application with possible high interfernce within the environment or devices that requires quadshield properties

CABLE SPECIFICATION Solid Copper Clad Steel 18AWG Nominal OD: 1.02 0.01 mm Adhesive: EAA (inner foil only)
Foil Shield Coverage: 100% (10% Overlap Min ) each shield
Foil Shield Material: 36 AWG Aluminum Alloy
Braid Coverage: 60% inner braid, 40% outer braid Impedance 75 Ohms 3 Ohms
Velocity of Propagation 82%
Capacitance 16.2 pF/ft
Inner Conductor DC Resistance 32.9 /kft
Shield DC Resistance 7.00 Ohms/kft
Sweep Tested 5 MHz to 3000 MHz
Listings Either UL or ETL Listed CM Jacket Nominal OD: 7.19 0.15 mm Ultra HD approved Indoor and Outdoor usage Operating Temperature: -20C to + 60 C Bonded APA Laminate Shield NEC 820 CATV Listed UV Resistant PVC jacket Foamed Polyethylene Dielectric

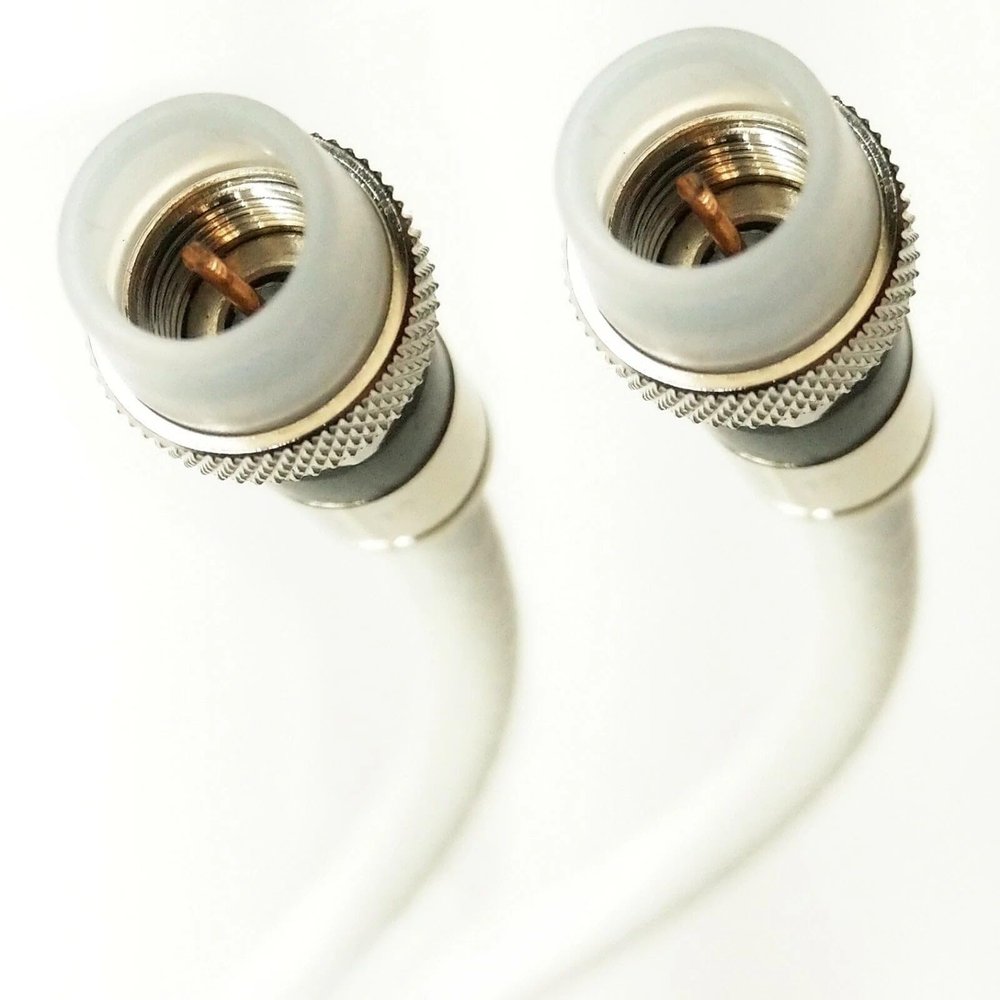

CONNECTORS Male F-type to Male F-type coaxial connector Plastic body seals the back end of the connector from environmental factors Metal compression ring also allows industry leading cable retention values from standard to quad shield Maintains ground continuity even when very loose Reduces QAM errors/packet loss Integrated Weather Seal (Weather boot) ensures a moisture-tight seal on every connection and enables an easy visual port entry Protects against digital video artifacts, DOCSIS performance degradation, LTE interference, and upstream signal-to-noise issues Knurled grip enhances ability to pre-tighten with fingers prior to wrench tightening Bandwidth 0 MHz to 3 GHz
Impedance 75 Ohms (nominal)
Return Loss (Gated)
5 to 1,000 MHz -30 dB Minimum
1,000 to 2000 MHz -30 dB Minimum
2,000 to 3,000 MHz -20 dB Minimum
Insertion Loss 5 to 3,000 MHz Less than .20 dB
Operating Temperature -40 F to 140 F (-40 C to 60 C)
Cable Retention 45 lbs (20.41 kg) minimum Constructed with Brass, Nickel Plated, Anti-Corrosion Materials Excellent Shielding Protection Unique 7/16 in Snap Torque in nut profile allows hand tightening while discouraging wrench-tightening on CPEs Maintains ground continuity even when very loose Reduces QAM errors/packet loss Prevents service issues from loose connections

*** ***

IMPORTANT INFORMATION

Standard RG-6 cable (1786-RG6/A with attenuation of 5.99 dB) number of taps in your segment (there is no minimum trunk-cable section length requirement). The maximum allowable total length of a segment is 1,000 m (3,280 ft) with two taps connected. Typical signal loss is approximately -5dB per 100ft. for TV reception. Please consider length below 200ft for minimal signal loss for most TV and satellite TV applications. We recommend to use RG11 for length above 150ft and longer. See our RG11 page for additional information. For recommendation and or usage application, please consult with your service provider or our helpdesk prior to making a purchase.
