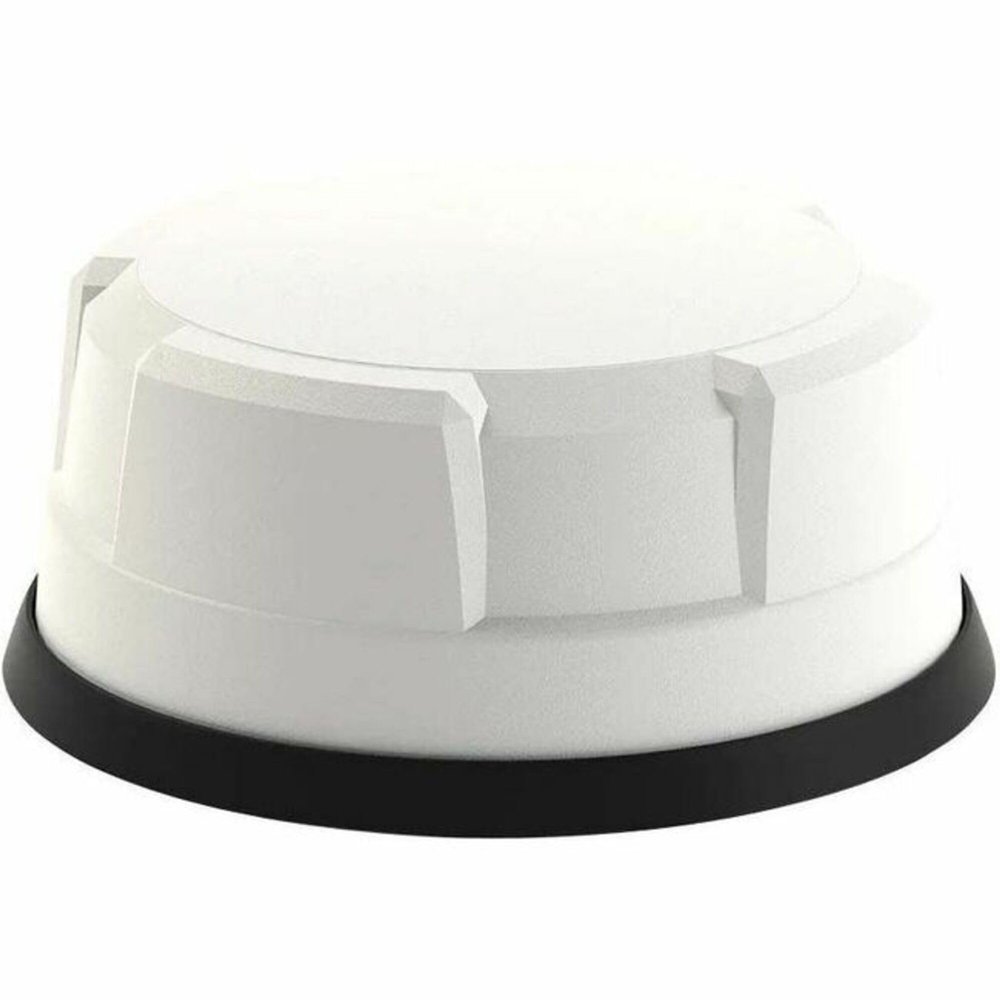

Panorama Antennas Inc. LG-IN2445 Panorama 5g 7-1 Dome For Cradlepoint Blk

Description

• Low Profile Dome White, 7 in 1 Antenna: 4x MiMo 2G/3G/4G LTE, 2x 2.4/5GHz Wi-Fi, GPS/GNSS, 5m/16 cables
• 4x4 MiMo 4G/5G LTE cellular, 2x2 MiMo Dual Band WiFi and GPS/GNSS in one housing
• Frequency Range (MHz) 4G/5G Elements 4x 617-960 / 1710-6000 WiFi Elements 2x 2.4/4.9-6GHz
• Antenna Gain: 617-960MHz: 4 dBi, 1710-3800MHz: 8 dBi, 4900-6000MHz: 9 dBi, 2.4 GHz: 9 dBi, 4.9-6.0GHz: 9 dBi
• Connectors: 4G/5G 4x SMA (m), WiFi 2x SMA Rev Pol, GPS/GNSS 1x SMA(m)
• Cable Type and Length: LTE/5G/Wi-Fi CS32 (UN118.03 / EN45545-2 Compliant) 5m (16ft), GPS: FR CS29 (UN118.03 / EN45545-2 HL2 Compliant) 5m (16ft)
• Cradlepoint i1900 series Certified Antenna

The LG-IN2445 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS and 2x2 MiMo WiFi 2.4/5.0GHz in a compact low profile housing.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in black or white and meets IK10 for vandal resistance and IP69K for ingress protection.
The integrated GPS/GNSS module supports GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimize potential in band interference.
LG-IN2445 is supplied as a complete plug and play kit with integrated 5m (16) ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS and Rev Pol SMA for WiFi.
