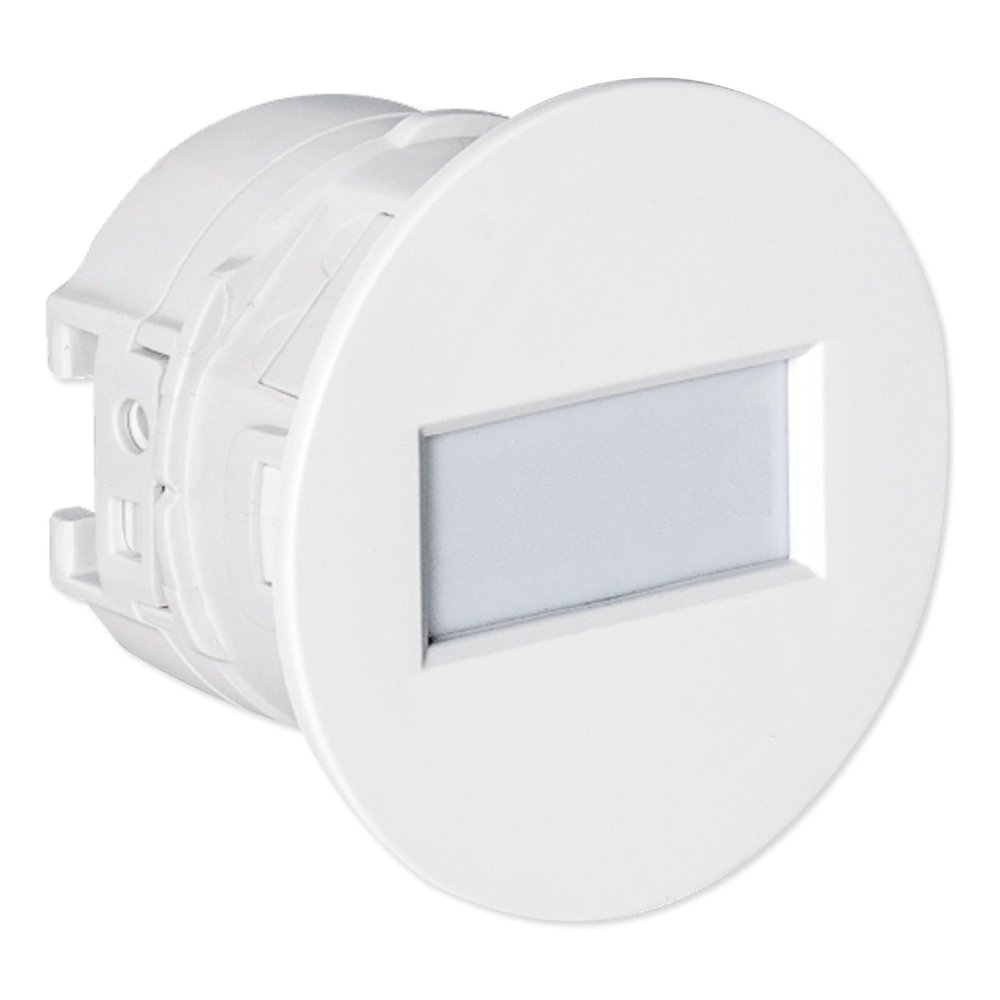

Optex AP-20NB(C) Indoor Recessed Mount PIR Detector, Curtain Detection, Wired

Description

• Ceiling or wall mount installation for plane or curtain detection installation
• Compact design allows for discreet installation
• Selectable detection sensitivity: High, Medium, and Low
• Tamper switch notifies when the device has been tampered with
• Ceiling or wall mount installation with 86-type box or without

Ensure your home or business is well protected with discreet motion detection by installing the Optex Indoor Recessed Mount PIR Detector, Curtain Detection. This uniquely designed PIR motion detector has a compact design and installs discreetly on a wall or ceiling. It uses passive infrared technology to detect motion up to 20' x 3' 3" when installed on a ceiling at a mounting height of 14' 9", or 20' x 14'9" when installed on a wall at a mounting height of 4'11". It features a tamper switch and selectable detection sensitivity: High, Medium, and Low. It offers plane detection when the lens direction is vertical, making it ideal for hallway installations or it can be installed above or to the side of curtains where the lens direction can be either vertical or horizontal for best coverage. Ceiling or wall mount installation for plane or curtain detection installation Compact design allows for discreet installation Selectable detection sensitivity: High, Medium, and Low Tamper switch notifies when the device has been tampered with Ceiling or wall mount installation with 86-type box or without

Contents
Indoor Recessed Mount PIR Detector Manual

Technical Details
Manufacturer Part #: AP-20NB(C) UPC: 788924505046 Color: White Type: Wired Detection Method: Passive Infrared Detection Area: Ceiling mount: 6.0 m x 1.0 m (20' x 3'3") at 4.5 m (14'9") height Wall mount: 6.0 m x 4.5 m (20' x 14'9") at 1.5 m (4'11") height Mounting Height: Ceiling mount: 2.5 m to 4.5 m (8'2" to 14'9") Wall mount: 1.5 m (4'11"): Horizontal, 1.0 m (3'3"): Vertical Mounting Type: Recessed ceiling mount/, Wall mount/ 86-type box mount Sensitivity: 2.0C at 0.6 m/s (3.6F at 2'/s) Detection Speed: 0.3 to 3.0 m/s (1'/s to 9'10"/s) LED indicator: Warm-up upon power on: blinking Stand-by: off Alarm: solid on Alarm Cycle: Approx. 2 s Alarm Output: N.O./N.C., 28 V DC 200 mA max. Tamper switch: N.C. 28 V DC 100 mA max The contact opens once the casing is detached Warm-up Time: Approx. 60 s Power Supply: 9.5 to 16 V DC Current: 12 V DC Stand-by: 11mA, Max.: 13 mA PIR Sensitivity: H/ M/ L Weight: 50 g (1.76 oz) Operation Temperature: -4F to +122F (-20 to +50C) Operation Humidity: <95% Location: Indoors Dimensions: Diameter 2.05 x 1.40 inches (diameter 52 x 35.5 mm): without switch box mount 3.39 x 3.39 x 1.44 inches (86 x 86 x 36.5 mm): with 86-type box mount
