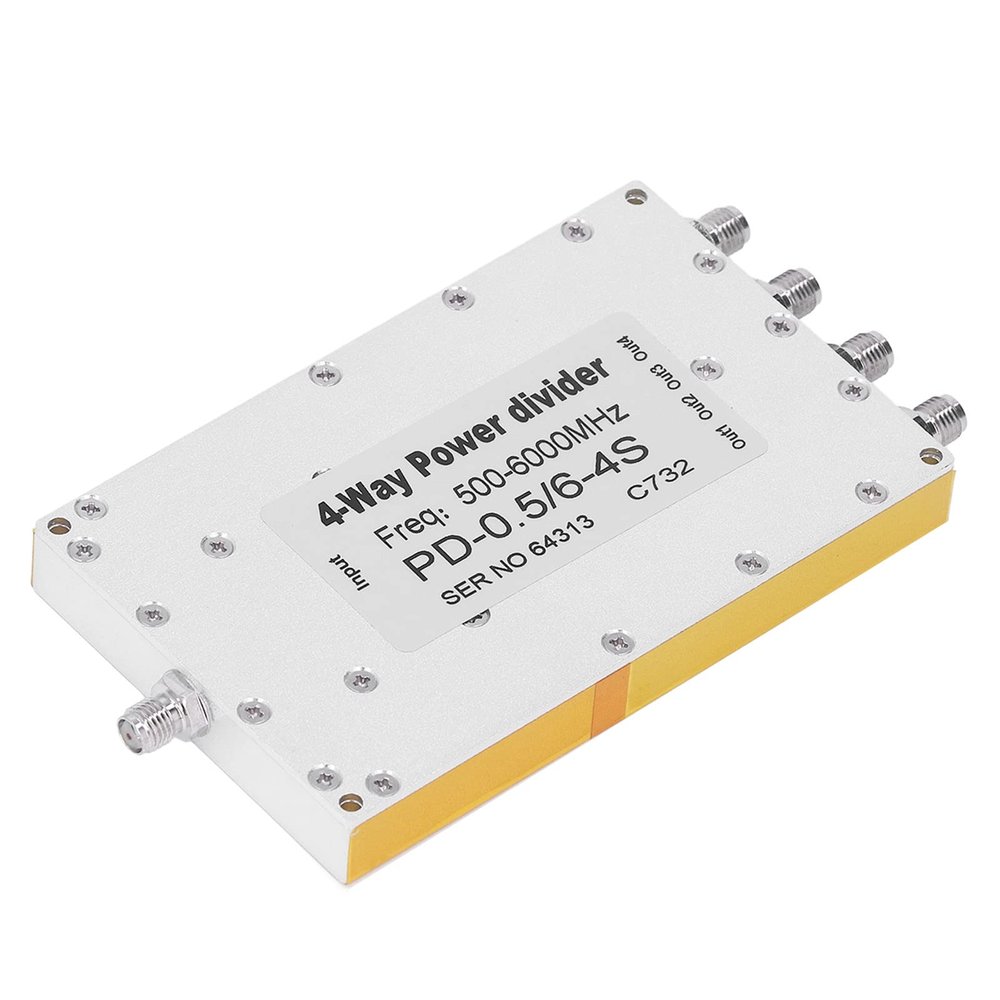

NDNCZDHC 4 Way Divider Coaxial Cable Splitter, TV Signal Amplifier Cable Splitter RF Power Splitter 500-6000MHz SMA Power Divider

Description

• 4 Way Power Divider: The 4 way cable splitter divides the energy of one input signal into four outputs of equal or unequal energy.
• Wide Range of Uses: The power divider can be applied to CDMA, LTE, WIFI2.4, WIFI5.8, and L band of 1.0 to 2.0GHz, S band of 2.0 to 4.0GHz, C band 4.0 to 8.0GHz.
• Other Applications: This digital 4way coaxial cable splitter can also be used in the production and testing industries.
• High Performance: The tv signal amplifier has a wide operating frequency which is 500 to 6000MHz, with small insertion loss, high gain, stable and reliable.
• Aluminum Alloy Shell: 4 way SMA power divider adopt premium aluminum alloy shell, with high strength, sturdy and not easy to damage, compact and lightweight, easy to carry.

Specification:
Item Type: 4 Way SMA Power Divider
Material: Aluminum Alloy
Model: PD-0.5/6-4S
Frequency: 500-6000MHz
Insertion Loss: 1.8dB
Input Standing Wave: 1.16 Maximum 1.25
Output Standing Wave: 1.12 Maximum 1.20
Isolation: 28dB Mininum 20dB
Amplitude Balance: 3dBe
Phase Balance: 4
Port Connector: SMA Female
Impedance: 50Ohms

Package List: 1 x 4 Way SMA Power Divider
