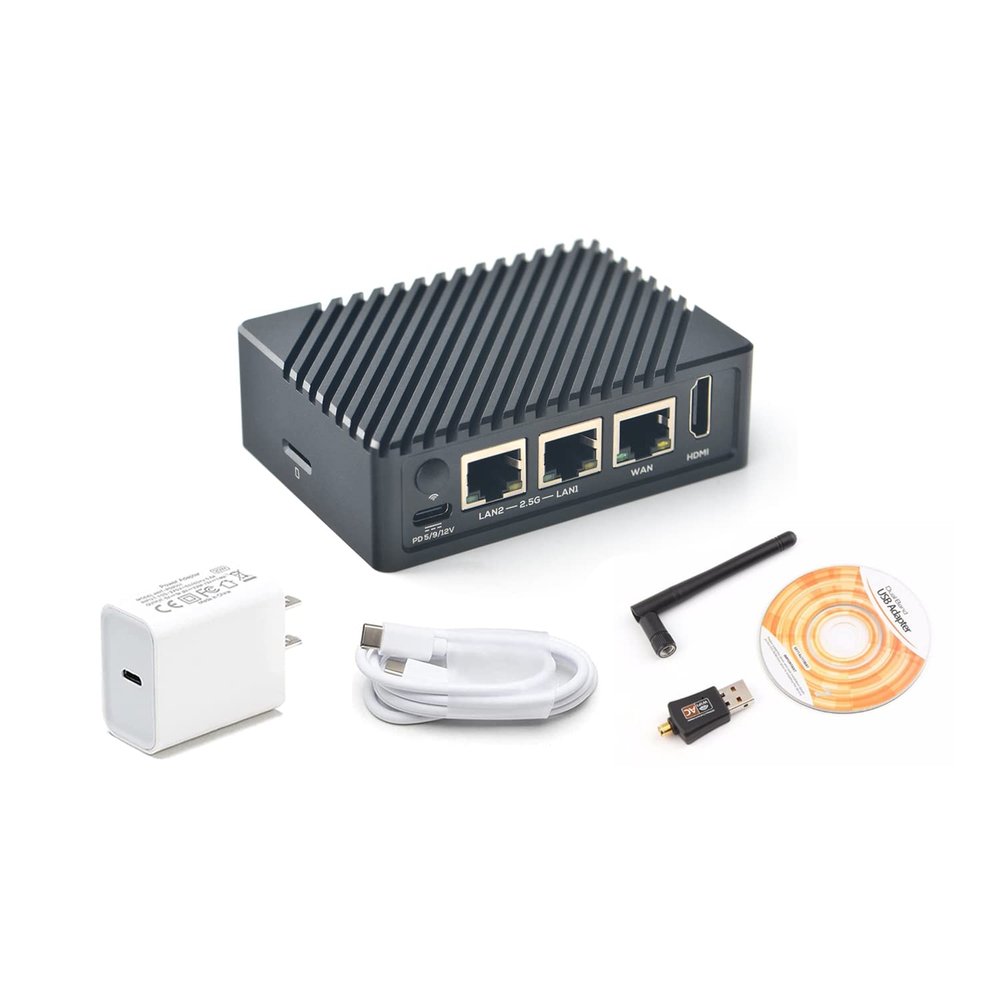

Nanopi R5S Computer Mini Routers OpenWRT with Three Gbps Ethernet Ports LPDDR4X 4GB RAM Mali-G52 GPU Rockchip RK3568 Soc for IOT NAS Smart Home Gateway Support Android FriendlyWrt Docker

Description

• [Wireless Mobile Mini Travel Router] NanoPi R5S Mini Router can support external USB wifi adapter. Simultaneous dual band with wireless speed 150Mbps(2.4G+433Mbps(5G).Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing
• [Open Source and Programmable] NanoPi R5S Computer Router can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more
• [Larger Storage & Extensibility] 4GB RAM LPDDR4X, 64GB eMMC 5.1 Flash, up to 128GB, MicroSD slot/UHS-I; USB3.0 Host x2: USB Type A; 2.54mm 4pin-header; Support USB-C, PD x1: Power Input supply, PCIe: M.2 Key M, PCIe2.1 x1, support NVME, PCIe WiFi etc.It is a powerful tool for portable storage and processing for photo and video lovers.
• [Three Gbps Ethernet & OS] One Native Gigabit Ethernet and Dual 2.5G Gigabit Ethernet ports (1 WAN and 2 LAN).NanoPi R5S mini pc can run Android, Buildroot and Ubuntu desktop and other systems. And support TF card to start and run FriendlyWrt and other systems.
• [Infinite Possibilities] NanoPi R5S mini wifi router is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.
• [After-Sales Problem] Wiki: "youyeetoo.com/blog/nanopi-r5s-ysdpnanor5sa-135".Any after-Sales Problem, Please Contact us by click "Waypondev" store and ask a question or leave the message in our forum by "forum.youyeetoo .com/".

-Specification-

SoC: Rockchip RK3568B2
CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz
GPU: Mali-G52 1-Core-2EEsupports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile
VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
NPU: Support 0.8T
RAM: 2GB/4GB LPDDR4X
Flash: 8GB/16GB eMMC
Ethernet: one Native Gigabit Ethernet, and two PCIe 2.5Gbps Ethernet
USB: two USB 3.2 Gen 1 Type-A ports
HDMI:
support HDMI1.4 and HDMI2.0 operation
support up to 10 bits Deep Color modes
support up to 1080p@120Hz and 4096x2304@60Hz
support 3-D video formats
PCIe: M.2 Key M, PCIe2.1 x1, support NVME, PCIe WiFi etc
microSD: support UHS-I
GPIO:
12-pin 0.5mm FPC connector
up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs
SD/MMC/SDIO/I2S:
2x8-pin 1.27mm connector
Compatible with SDIO3.0 protocol
Compatible with SD3.0, MMC ver4.51
4bits data bus widths
1x I2S with 2x SDO and 3x SDI
Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps
LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)
Others:
one 5V Fan connector
Power supply: USB-C, support PD, 5V/9V/12V input
Ambient Operating Temperature: 0 to 70

-OS Support-
FriendlyWrt 21.02, FriendlyWrt 22.03, FriendlyCore Lite 20.04
Android 12 Tablet,Android 12 TV
Debian 10 Desktop
Debian 11 Desktop Buildroot
Kernel version: Linux-5.10-LTS, U-boot-2017.09
-Package Content-
NanoPi R5S LPDDR4X 4GB Mini Router x1 (with CNC Metal Case)
USB Wifi Adapter x 1
20W PD Power x 1
PD Fast Charging Line x 1
-Technical Support-
Please click "WayPonDEV" and ask a question.
Please leave the message monica#smartfire.cn (f------>@) skype: monica_9122.
Please leave the message in our forum by forum.youyeetoo.com/.
