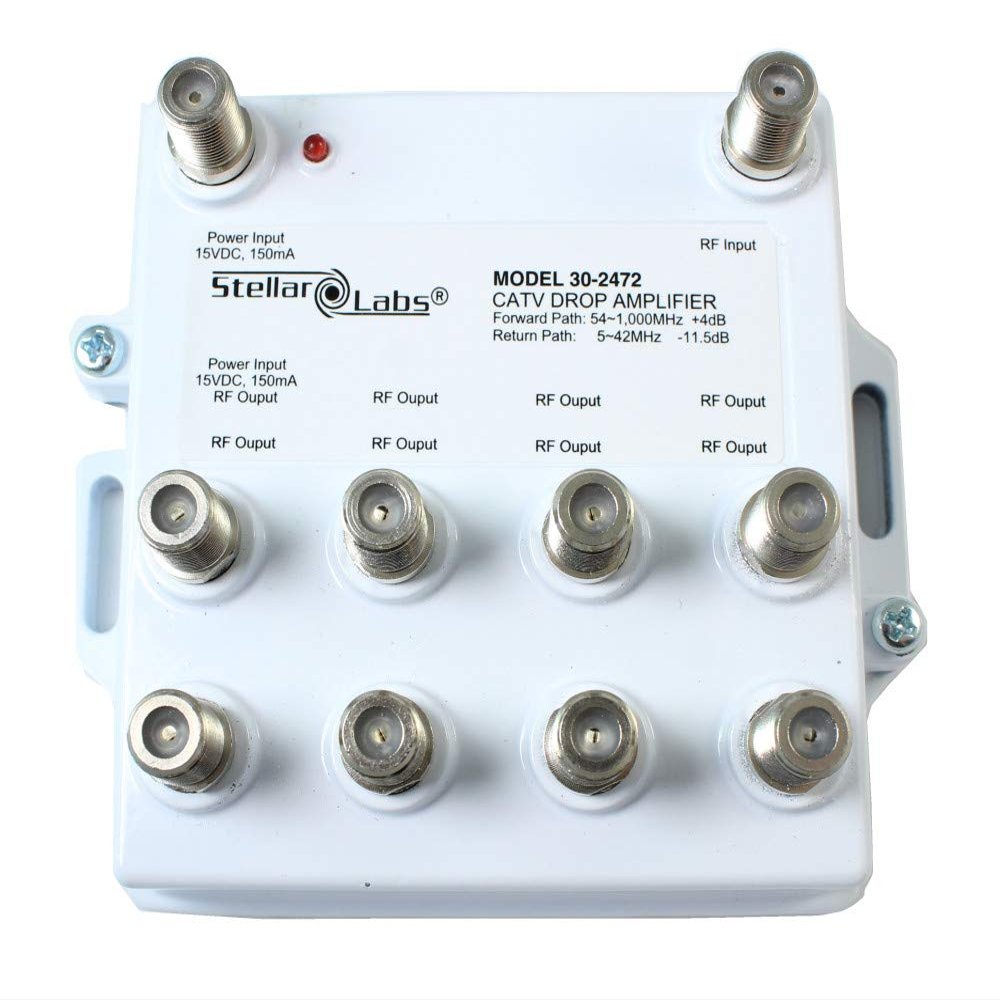

MyCableMart Coax Splitter: 8 Way 54-1000Mhz, Amplified, Powered

Description

This cable drop amplifier sends CATV signals to up to eight television sets with an internal 4dB signal amplifier to compensate for losses caused by the split and additional cable length. It also provides a passive return path ensuring compatibility with current digital and interactive and broadband cable systems. While designed for CATV use this device is perfectly suitable for use with standard TV and FM antennas. The housing and F ports are all sealed for permanent installation outdoors. Power is supplied either directly to the unit via the supplied AC adapter or may be inserted into the existing signal cable feeding the signal to one of the sets (optional power inserter required) allowing power to be provided from a remote location. Note: The included AC adapter must be located indoors.

Features and Specifications: Fully sealed weatherproof housing
Sealed F ports
Integral ground lug terminals
LED power indicator confirming proper power source connection
Maximum input signal level: 96 dBuV
Forward gain: +4dB max Return path: -11.5dB max
Forward bandwidth: 54Mhz to 1 000MHz Return path: 5MHz to 42MHz
Power requirements: 15VDC 150mA
Impedance: 75ohm all inputs and outputs
Dimensions: 3.75 (H) x 4.5 (W) x 1.88 (D)
