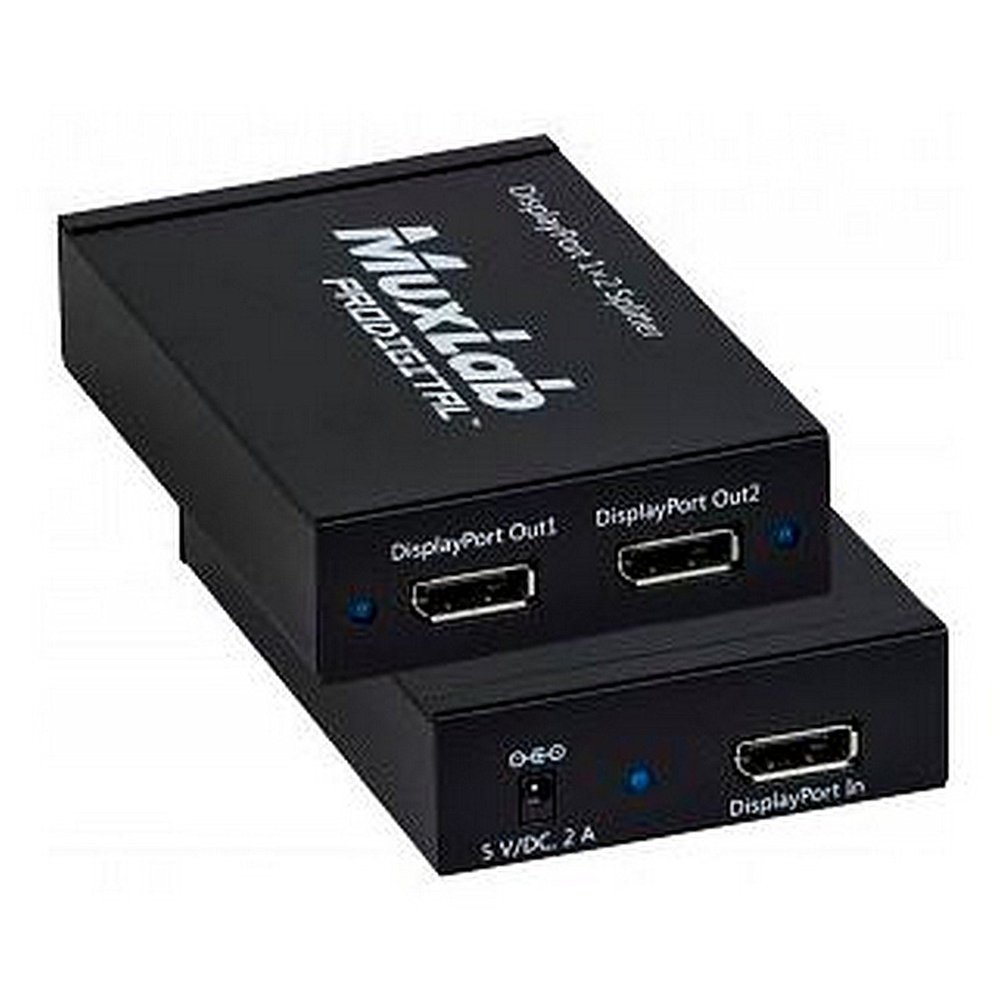

MuxLab 500505, Displayport 1.2A 1X2 Splitter

Description

• Distribute one DisplayPort 1.2a source to two displays
• Supports Multi-Stream Transport (MST) or Single Stream Transport (SST) (up to eight streams)
• Supports data rate of 5.4 Gbps per lane with a total of 21.6 Gbps link rate
• 4K at 60Hz, 24 bits/pixel in DP 1.2a configuration
• 1080p at 240Hz, 24 bits/pixel

The DisplayPort 1x2 Splitter (500505) allows one DisplayPort 1.2a source to be distributed to two (2) DisplayPort displays. The splitter supports video resolutions up to 4K and PCM Audio up to 7.1-Channel and up to 192 kHz sampling rate. Specifications: Environment: DisplayPort 1.2a Device Targeted: Installation of DisplayPort or Mini DisplayPort output source equipment with DisplayPort input monitors Transmission: Transparent to the user. Video Bandwidth: 21.6 Gbps (5.4Gbps per lane) Signals: DisplayPort 1.2a & Dual mode DisplayPort protocol Transport: Supports Single Stream Transport (SST) or Multi-Stream Transport (MST) (Up to eight streams) Resolution: Up to 3840 X 2160 @ 60 FPS HDCP: Revision 1.4 compliant. Audio: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio Connectors: Three DisplayPort connectors, One PSU connector Cabling Requirement - Input port: 1x Standard DisplayPort Cable / Output port: 2x Standard DisplayPort Cables LEDs: Input & Output Link: Blue Power Supply: 5VDC, 2A Operating Temp: 0 to 40C (32 to 104F) Storage: -20 to 60C (-4 to 185F) Humidity: Maximum 90% (non-condensing) Enclosure: Black metal enclosure Dimensions: 4.33" x 2.95" x 1.00" (110 mm x 75 mm x 25 mm) Weight: 0.55lbs (250g) Compliance: Regulatory: FCC, CE, RoHS
