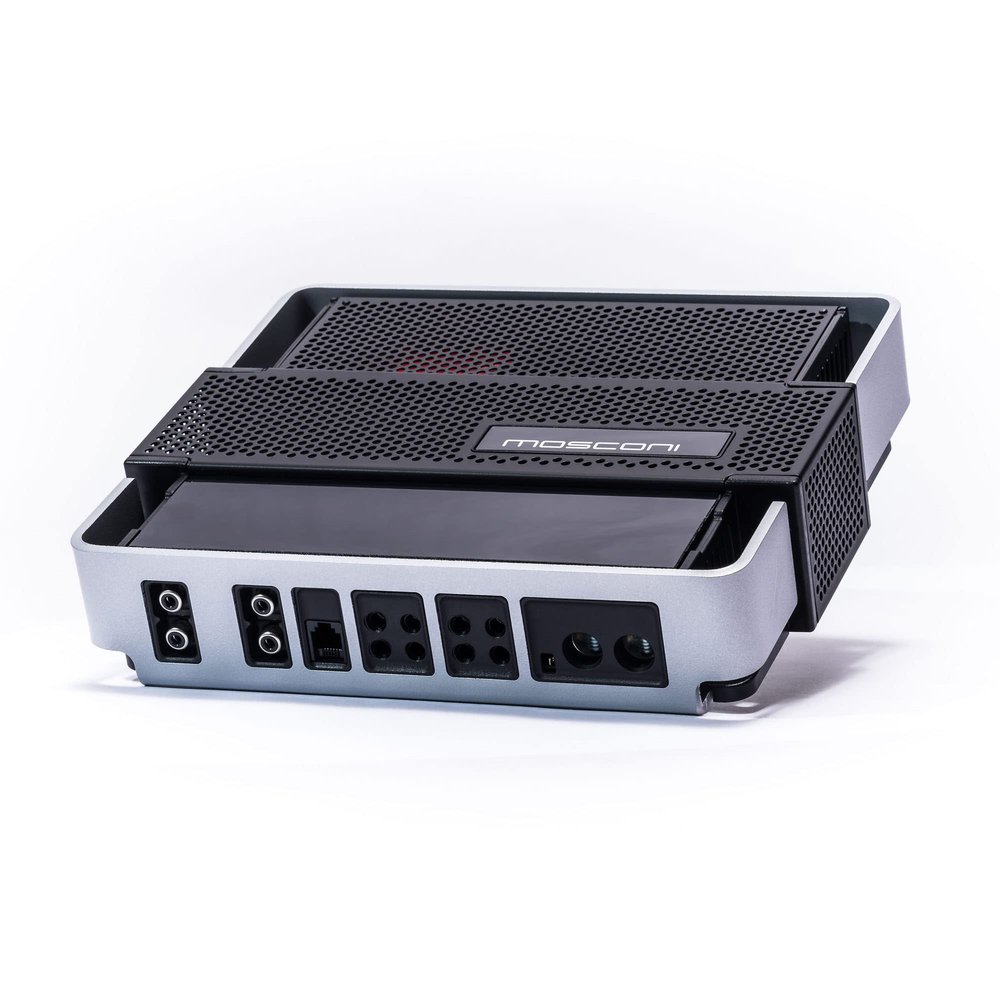

Mosconi PRO 4 | 10, 4 -Channel Class AB Amplifier (4 X 120w @ 4-Ohms)

Description

• 4 channel amplifier
• Available in Black/Silver finishing
• Direct DSP (bypass all the preamplifier circuitry but the differential input interface)
• High Level / Low Level selectable input

FEATURES: 4 channel amplifier Available in Black/Silver finishing Power Rating: 120 Watt per channel @ 4 Ohm Less Than 1% THD+N Sn Ratio: > 74 dBA / >95 dBA (DDSP) (ref: 1 Watt into 4 Ohm) (*) VERY IMPORTANT NOTE READ CAREFULLY 4 Ohm ST or 8 Ohm BTL CONTINUOUS SINEWAVE SIGNAL pure resistive load or speaker load 2 Ohm ST or 4 Ohm BTL MUSICAL SIGNAL pure resistive load or speaker load 2 Ohm MUSICAL SIGNAL pure resistive load or speaker load (only CH5) SPECS: Target powers: 1204 Watt (Stereo) @ 4 Ohm 1604 Watt (Stereo) @ 2 Ohm 3202 Watt (BTL) @ 4 Ohm Input sensitivity: (Power rating ref): .35V 12V (5.3V in DDSP mode) [CH1/2/3/4] Xover functions: CH1/2= HP: 43 500Hz(x1) or 430 5000Hz(x10) [12 dB/oct Q: 0.7] CH3/4= HP: 50 200Hz & LP:(430 5000Hz) [12 dB/oct Q: 0.7] Special features: Direct DSP (bypass all the preamplifier circuitry but the differential input interface) High Level / Low Level selectable input RTC input Internally controlled via Atmel Processor Size: 235 x 205 x 55 mm Weight: 2.4 Kg
