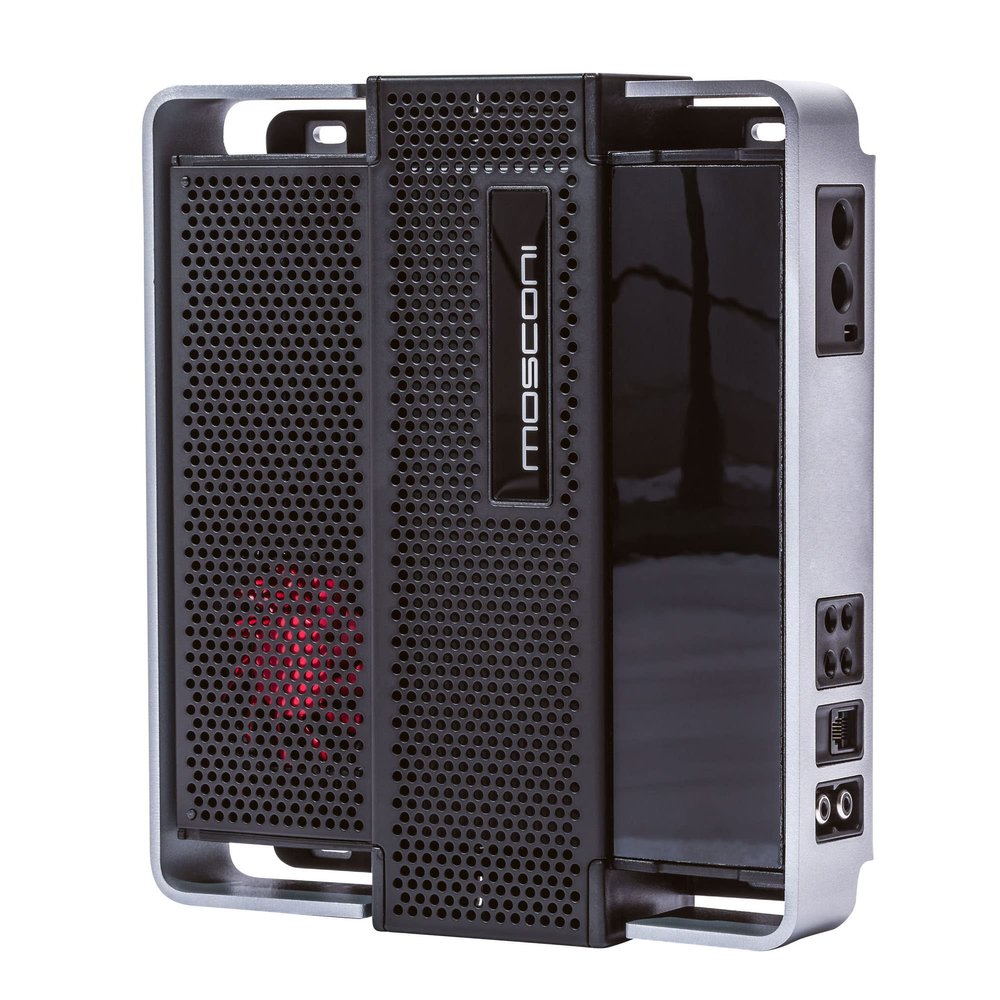

Mosconi PRO 1/10 Monoblock 1000W RMS Full Range Class D Amplifier

Description

• DDSP Direct DSP (bypass all the preamplifier circuitry but the differential input interface)
• High Level / Low Level selectable input
• Single Input capability (RCA bypass capability
• Autosense (BTL mode only)
• Controlled via uC Internally controlled via Atmel Processor

Features:
Single channel Full Range Class D amplifier
Available in Black/Silver finishing
Power Rating: 670 Watt @ 4 Ohm 80 dBA (DDSP) (ref: 1 Watt into 4 Ohm)
Pro 1|10 Sn Ratio: (AP filter 10Hz / 22kHz DDSP 600Wrms ref) 108 dB

Specifications:
Power Efficiency: >75%
DC-DC Converter Typology/Conversion Frequency: Unregulated Push-Pull/50 kilz
Supply Voltage Range Operation: 10V + 16V (Absolute Maximum)/11V + 14.4V (Recommended)
Power-on/Power-off Voltage Threshold: 9V/7.5V
Mute Delay Time: 4 sec.
Standby Current: <1 Ma (Typical)
Bandwidth: 13 Hz - 29 kHz
Input Sensitivity: (600 Wrms/4 Ohms)
Input Impedance: 15 KOhm (LL)/47 Ohm (LL)
S/N Ratio: 108 dB
