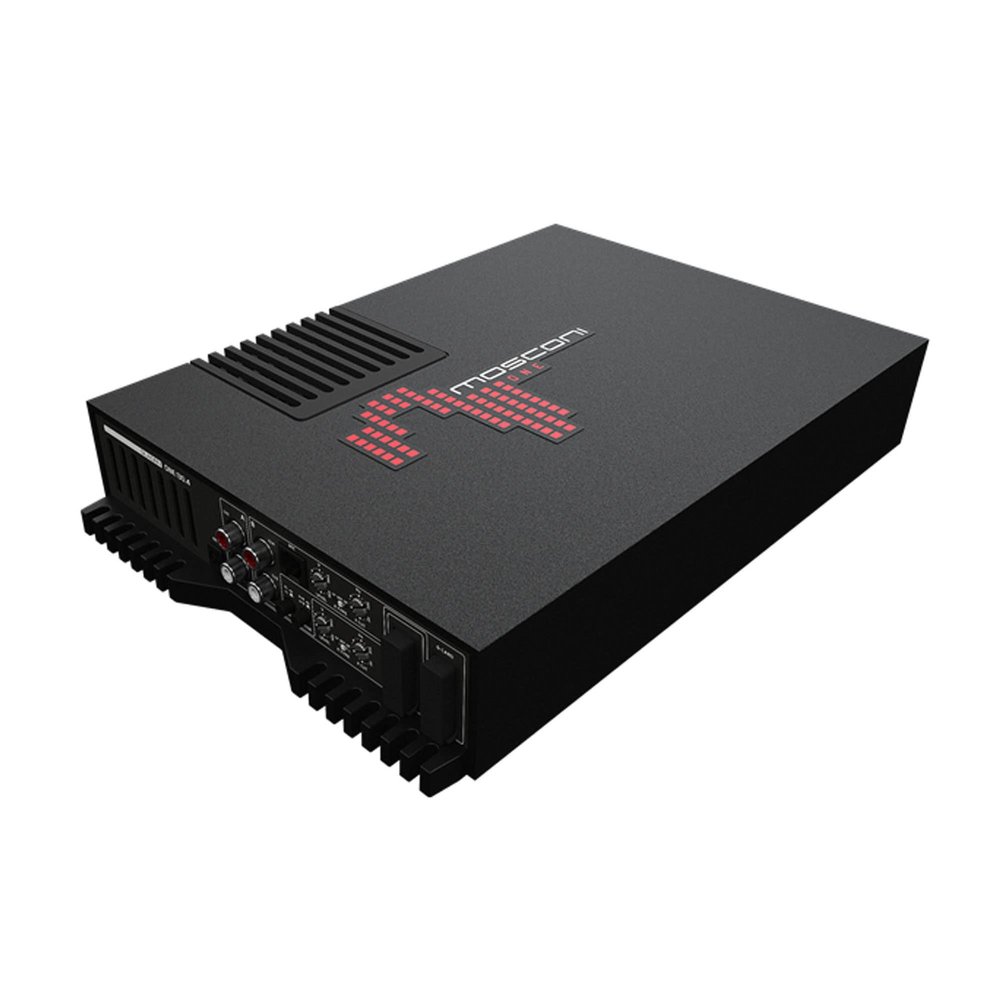

Mosconi Gladen ONE 130.4, 4 -Channel Class AB Amplifier; 4 X 130w

Description

• Onboard crossover filter configuration OFF - LP - HP
• HP and LP filter range 20 225Hz
• HP and LP filter slope 12dB/oct
• G-CARD Compatibility: All listed in the catalogue
• Finishing: Powder Coating

4 -Channel Class AB Amplifier; 4 X 130w Features: 4 channel amplifier Black finishing Power Rating: 130 Watt per channel @ 4 Ohm XX dBA (ref: 1 Watt into 4 Ohm) G-HOC socket per channel pair for G_HP & LP, G_FSA, G_MONO, RTC_MOS and HOC e.g. BMW. HP or LP filter switchable Improved input interface, better noise rejection AnalogDevice Ics, improved DC-DC converter Surge protection on battery supply rail Class AB power amplifier full MOSFET Unregulated power supply High level input with autosense power-on Cross Over with switchable High Pass or Low Pass filter Slot for G_cards Remote Volume Control RTC (optional) More SMD / less traditional components in the past Power Supply: Power supply voltage: 11 - 16V DC-DC converter typology: Unregulated Push Pull Internal Fuse: 2 x 40A Autosense power-on: in High level mode only Overall Efficiency: >60% Signal Input: Input sensitivity range 0.35 16V Input impedance (Hgih level mode): 47Ohm (floating) Input impedance (Low level mode): 10kOhm (ground referenced) Input CMRR: > 80dB Input interface configuration fully differential Connection: Low Level Input: RCA High Level Input: RCA Remote Control RTC (Optional): Modular Jack
