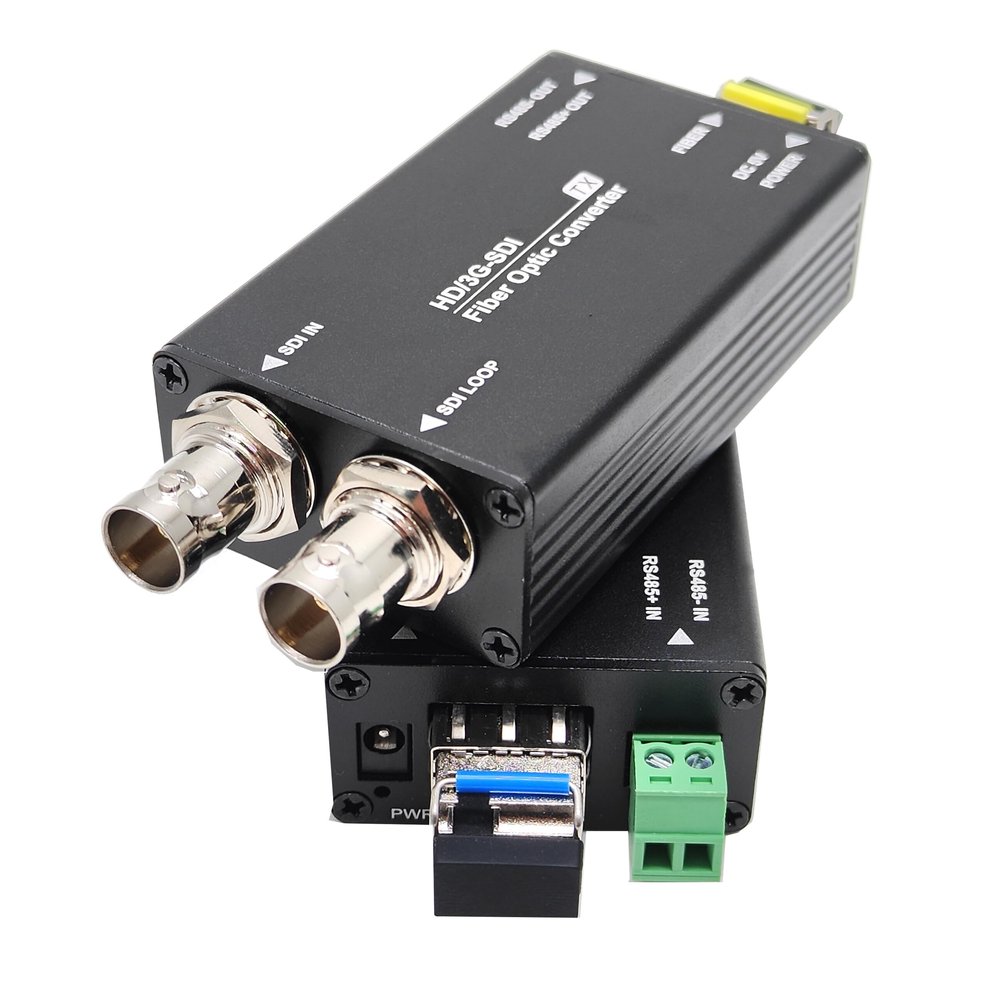

Mini 3G-SDI Video to Fiber Optic Converter LC SFP Singlemode Single Fiber up 20Km Uncompressed No Delay A Set

Description

• 3G SDI fiber Converter transmitter 3G-SDI video over a Fiber Optic cable to far end, Up to 20Km by a single-mode single fiber cable , Up to 300m by a Multi-mode cable, it is with RS-485 data (reverse direction) which can control PTZ remotely
• Support video resolution 1920x1080@60Hz max, backward compatible.1080P@ 30,25,24Hz and 1080I@60,50Hz. Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant
• Support 3G-SDI, HD-SDI, SD-SDI, DVB-ASI video signal, Video resolution up to 1920x1080@60Hz, backward compatible. Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards
• Broadcast High grade & Compact design. with clock recovery function which can make sure the video image no blinking, whatever you use converter or not. It can reduce signal jitter, it can handle the distortion signal very well. Its quality is far away than ordinary and cheaper units from other brand
• Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution. LED Status Provide Rapid Indication of Operating Parameters
• Plug and Play, No need to set up

Specifications:
1. Optical wavelength:1310nm-1550nm
2. Fiber Type: Single mode, Single fiber(default)
3. Working distance 0~20km
4. Fiber connector: LC.

SDI Video:
1. Physical Interface: BNC
2. Resolution: up to 1920 x 1080 @ 60Hz
3. Video Input and Output Impedance: 75 (unbalanced)
4. Video Input/output VoltageTypical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
5. Video Bits Rate: Max 2.97Gb/s
6. Video SDI standard: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI

Electrical & Mechanical:
1. Input Power Requirements: DC 5V
2. Power consumption 1.5W
3. Power physical interface micro-USB
4. Dimensions:73*42*21.9mm (LxWxH).

Data
1. Physical Interface: standard industry block terminal
2. Interface signal: RS485 reverse direction, PTZ control
3. Baud Rate:0-400Kbps
4. BER 100,000 hours

Package Include:
1 x 3G-SDI Transmitter
1 x 3G-SDI Receiver
2x Power supply adapter with Micro-USB connector
1 x 3M LC-LC S/M fiber patch cord
1x User Manual
