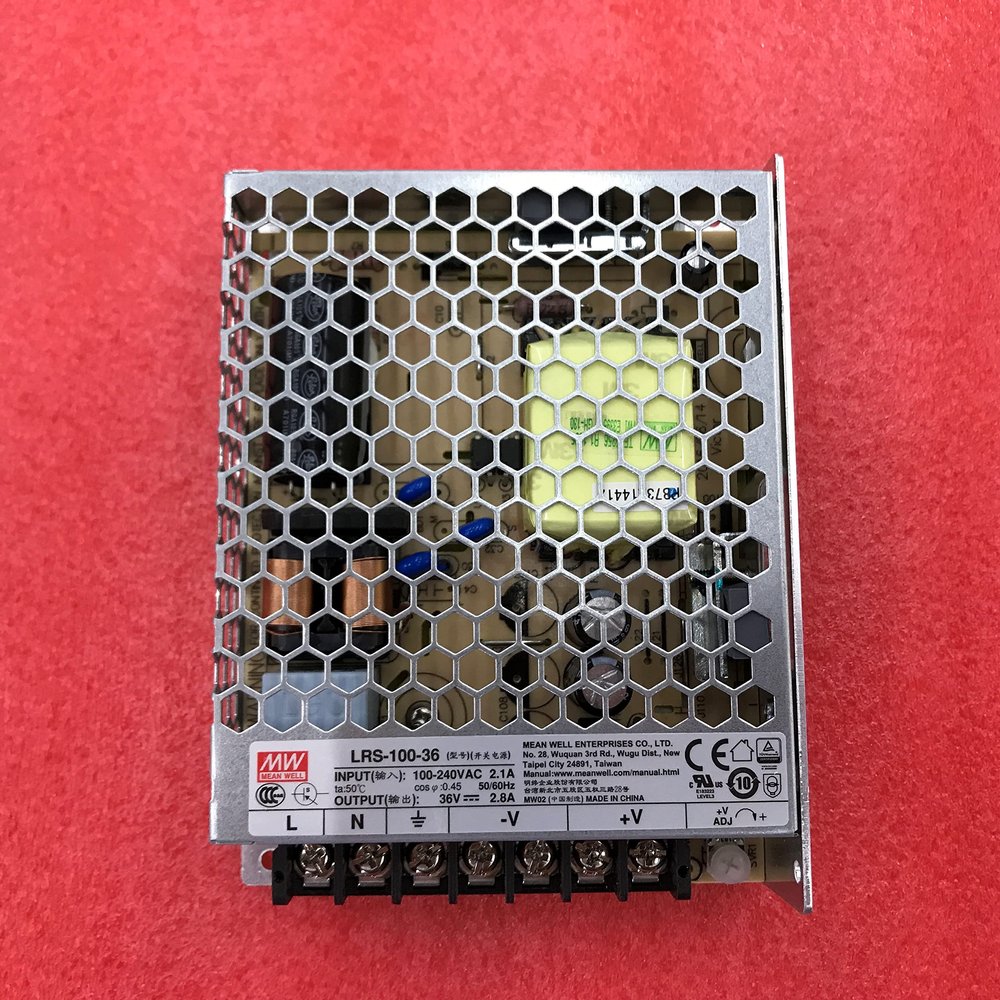

Mean Well LRS-100-36 100.8W Single Output Switching Power Supply LRS-100 36V/2.8A

Description

• Universal AC input / Full range
• Withstand 300VAC surge input for 5 second
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Miniature size and 1U low profile
• Compliance to lEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61558-1,2-16 for household appliances
• Operating altitude up to 5000 meters (Note.7)
• Withstand 5G vibration test
• LED indicator for power on
• No load power consumption<0.3W

LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design.Adoptingthe full range 85~264VAC input, the entire series provides an output voltage line of 3.3V,5V,12V,15v,24V,36V and 48V. In addition to the high efficiency up to 91%, the design of metallic mesh case enhances the heat dissipationof LRS-100 that the whole series operates from -30 through 70 under air convection without a fan.Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system toeasily meet the worldwide energy requirement. LRS-100 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV BSEN/EN2368-1BSEN/EN60335-1,BSEN/EN61558-1/-2-16,UL62368-1 and GB4943.LRS-100series serves asa high price-to-performance power supply solution for various industrial applications.
