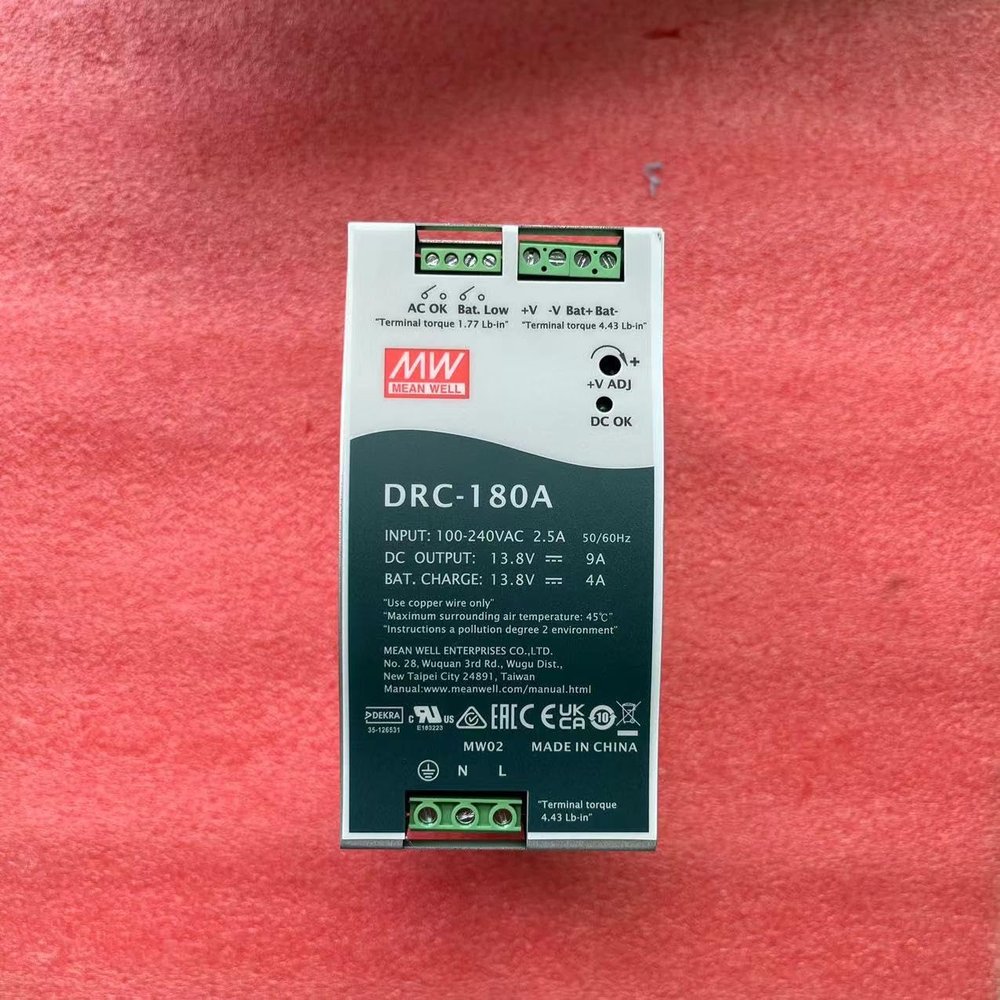

Mean Well DRC-180A 179.4W Single Output with Battery Charger(UPS Function) DRC-180

Description

• Universal AC input /Full range
• Built-in active PFC function
• Alarm signal for AC Ok and Battery Low(Via Relay)
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Battery low protection / Battery reverse polarity protection by fuse
• Cooling by free air convection
• -20~+70 wide operating temperature
• Can be installed on DIN rail TS-35/7.5 or 15
• DC output voltage adjustable (+20%)
• Welcome to visit, the main picture above the product specifications, please read carefully, have any questions can consult us, we will answer for you.If you need to purchase more quantities, please contact customer service.

DRC-180 is a AC/DC DlN rail type security power supply series. In addition to the primary output,there is a charger output with a smaller rated current, enabling the backup power supply application thesecurity access systems require. DRC-180 accepts the universal input between 90VAC and 264VAC, andsupplies 13.8VDC and 27.6VDC at output, respectively. With the efficiency up to 90%, it can operate withair convection cooling under -20 through 70 . ln addition to the key protection features such asoverload protection,over voltage protection, battery low cut off, and battery reverse polarity protection (byfuse), the alarm signal for AC OK and battery low signaling is provided, via relay contact output tofacilitate the system design.
