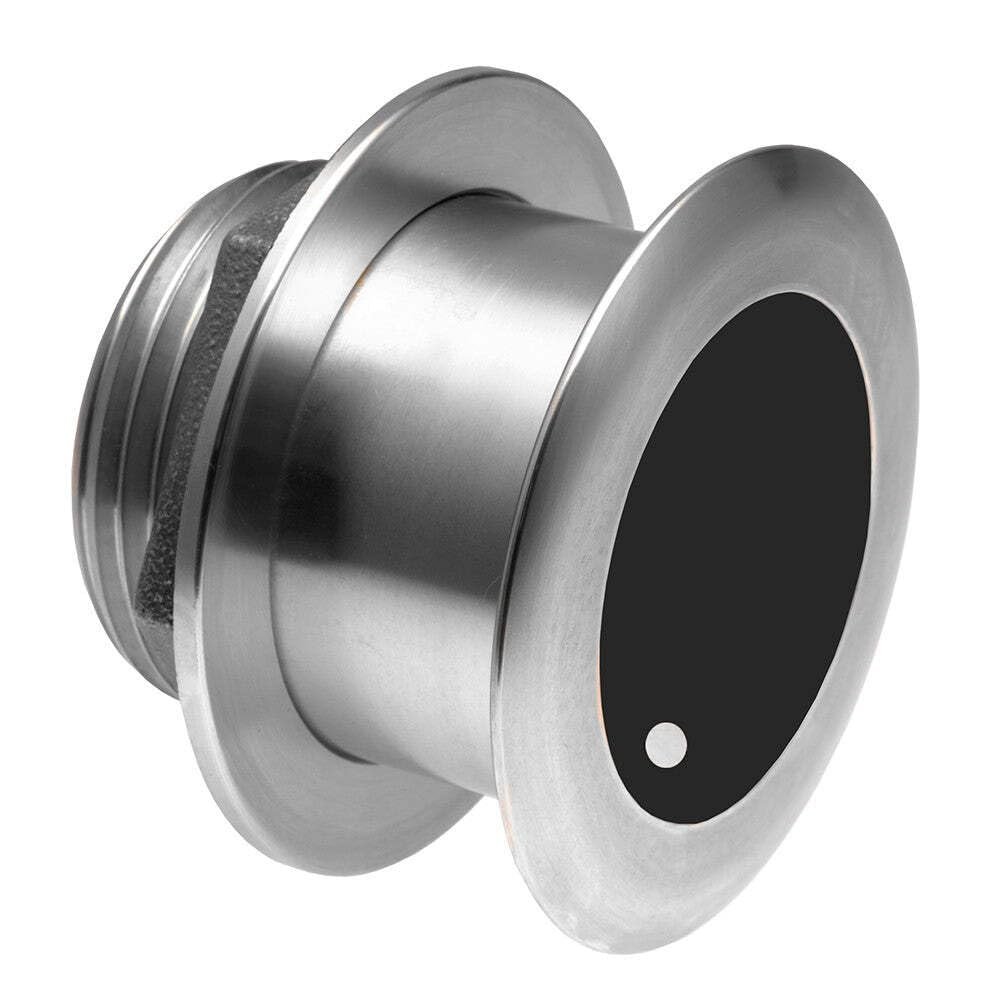

Lowrance XSONIC AIRMAR SS175L 20 DEG

Description

• XSONIC SS175L 20 degree Low CHIRP through hull transducer. Black 9 pin connector: Cable length 10 m (33.0 ft): Available Q1 2017
• DC, Sonic, CHIRP-L, 1KW LP, 20 Deg
• Mfg.: 000-13776-001

Airmars low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band is the deep-water performer delivering excellent coverage and tracking. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance. The SS175L transmits across the Low-Chirp frequency 40 to 60 kHz Tilted Element transducers have the ceramic element fixed at a 20, 12 or 0 angle within the housing. The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. The SS175L is available in three Tilted Element models: Fixed 20 tilted version for 16 to 24 hull deadrise Fixed 12 tilted version for 8 to 15 hull deadrise Fixed 0 tilted version for 0 to 7 hull deadrise Features Depth and fast-response water-temperature sensor 1 kW with maximum depth to 762 m (2,500') Low frequency: 40 to 60 kHz 32 to 21 beamwidth Great deep-water performance Low-profile, thru-hull housing provides good resolution at speed when installed properly Stainless steel housing for use on stepped, planing or displacement hull
