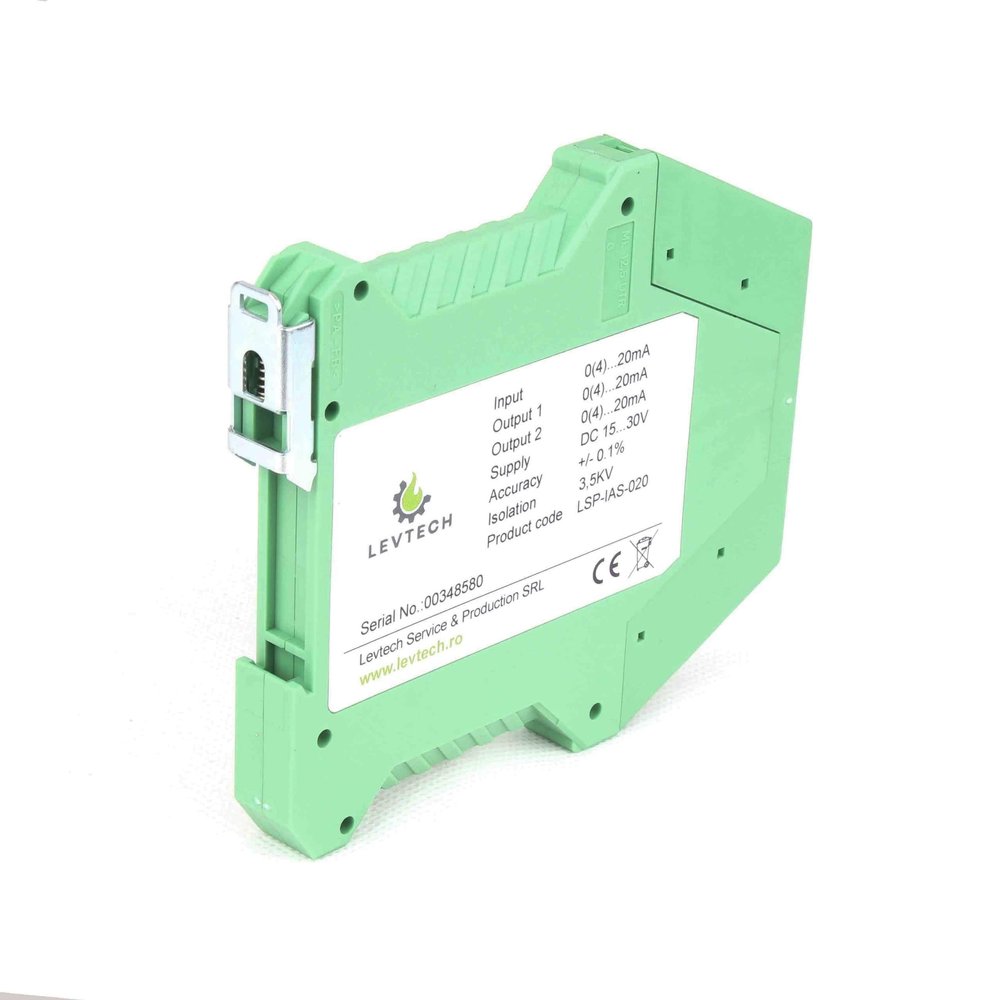

Levtech - Industrial Isolated Splitter for Analog Signals - 4-20mA / 0-10V / 0-5V (0-10V)

Description

Technical Overview The Isolated Splitter for Analog Signals is a critical component in automation systems, designed to connect the analog signal of a measurement device to two separate processing units. This ensures accurate and reliable data transmission. Signal Compatibility This splitter accommodates a variety of standard analog signals, including 4-20mA, 0-10V, and 0-5V. The specific models and their respective input and output capabilities are as follows: Functionality The Isolated Splitter provides dual output functionality. For instance, the output of a temperature transmitter can be connected to the splitters input, with output1 linked to a Programmable Logic Controller (PLC) and output2 connected to a display. This configuration enables effective system monitoring and control. Galvanic Isolation A key feature of the splitter is its four-way Galvanic Isolation. This isolates the Input, Output1, Output2, and the power supply from each other, significantly reducing the impact of interference and ground potential differences. Features The Isolated Splitter for Analog Signals includes the following features: Four-way isolation 3500VDC isolation TS-35 DIN rail mounting +/-0.1% accuracy IP40 case Screw terminals Power LED Supply voltage 24VDC Manufactured in the EU Industrial Automation Applications The Isolated Splitter for Analog Signals is particularly useful in industrial automation. In short, mitigates errors caused by noise and signal interference and protects sensitive equipment, such as PLCs, from potential hazards. Application Example In a scenario where a temperature sensor operates in a 4-20mA current loop, and you need to record the temperature in data acquisition hardware while controlling a manufacturing process with a PLC, the Isolated Splitter for Analog Signals is a really useful device. It isolates the input
