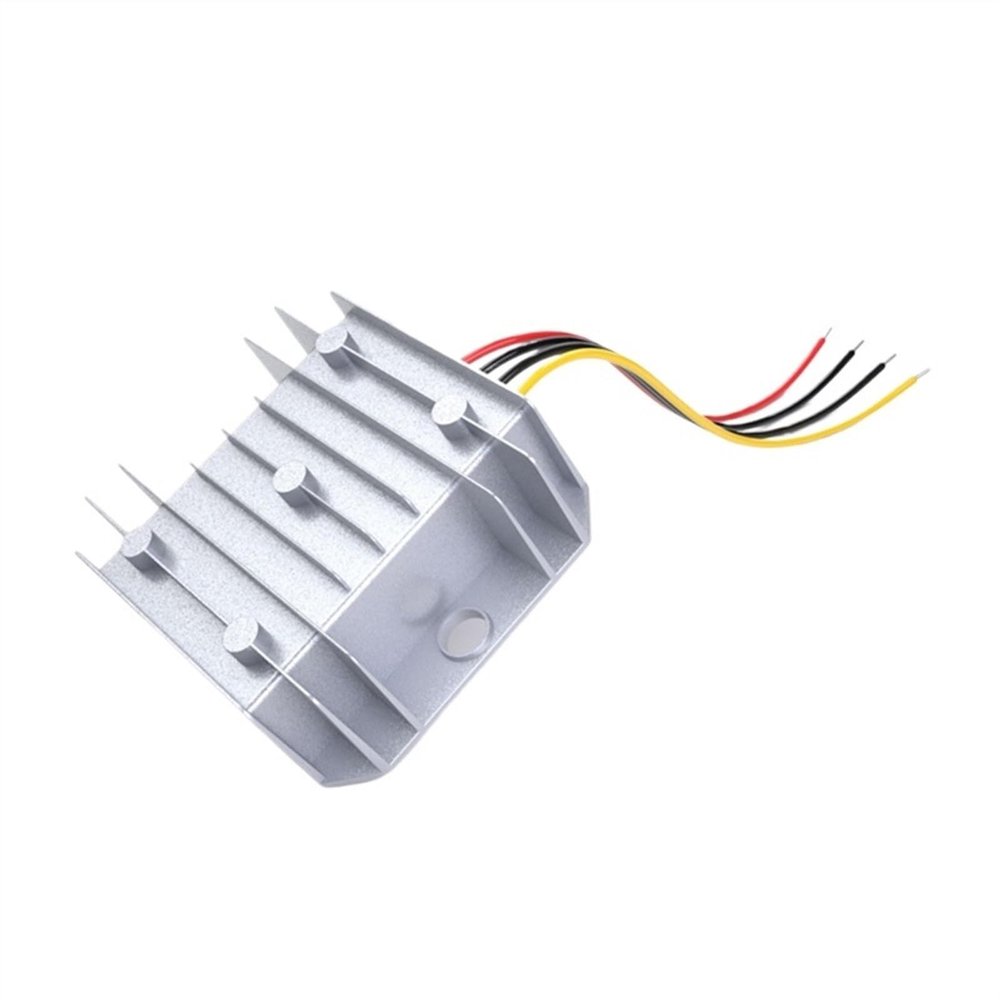

KNKQZXVDF DC DC Power Converter 36V48V to 6V 9V Step Down Module Converter 36V48V to 20V 8A10A Power Converter Power Module_9V(3A,36V48V (30V-60V)-9V)

Description

• Converters
• Power Converters
• DC DC Power Converter 36V48V to 6V 9V Step down Module converter 36V48V to 20V 8A10A power converter Power module

Converters
Power Converters
Product Description
Product Name :DC DC Converter 36V48V to 6V 9V 20V 3A 5A 6A 8A 10A
Model No. :JZL48060305060810 / JZL48090305060810 / JZL482003050608
Module Properties :non-isolated buck module
Rectification : rectification
Input (cable length: 13-14cm)
Input Voltage:DC 36V48V
Input Voltage Range:DC 20V-60V
Output(cable length: 13-14cm)
Output Voltage:DC 6V
Output Current:3A 5A 6A 8A 10A
Output Power:18W 30W 36W 48W 60W
Input Voltage:DC 36V48V
Input Voltage Range:DC 20V-60V
Output(cable length: 13-14cm)
Output Voltage:DC9V
Output Current:3A 5A 6A 8A 10A
Output Power:27W 45W 54W 72W 90W
Input Voltage:DC 36V48V
Input Voltage Range:DC 30V-60V
Output(cable length: 13-14cm)
Output Voltage:DC 20V
Output Current:3A 5A 6A 8A
Output Power:60W 100W 120W 160W
Conversion Efficiency:>93%
Voltage Regulation:3%
Load regulation: 2%
<;; 150mV
<;;100mA
Working Temperature:-40~80( If ambient temperature exceeds 40c lower power use or to enhance heat dissipation)
Waterproof Rating:IP68
