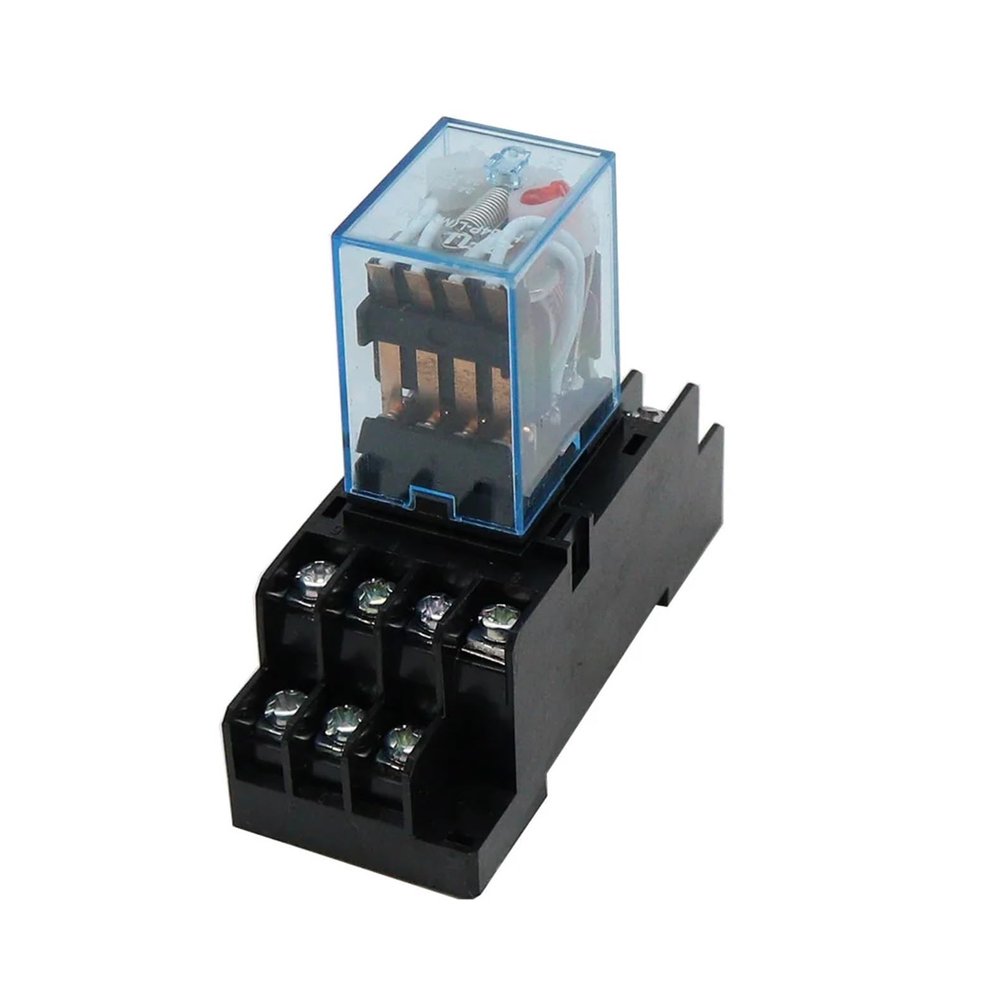

KKFAUS 1 Set MY4NJ Small Electromagnetic Power Relay AC 12V 24V 36V 48V 110V 220V 380V Coil 4NO 4NC DIN Rail 14 pins + Base Mini Relay (Color : DC, Size : 380V)

Description

• Relay Model No. MY4N-J
• Socket Model No. PYF14A
• Action 4PDT
• Coil Voltage :DC12V DC24V AC110V AC220V
• Contact Voltage: 5A 240V AC / 5A 28V DC
• Rated current: 10A
• Indication:LED Working

Product Name Power Relay
Relay Model No. MY4N-J
Socket Model No. PYF14A
Action 4PDT
Coil Voltage :DC12V DC24V AC110V AC220V
Contact Voltage: 5A 240V AC / 5A 28V DC
Rated current: 10A
Indication:LED Working
Electrical life: more than 10W times
Rated frequency: 50Hz / 60Hz
Contact type: 4 on 4 off
Action time: less than 25ms
Operating temperature: - 25 C to + 55 C
Pin Quantity 14 Pin
Mounting Rail Type 35mm DIN Rail
Relay Size (Approx.) 3.4 x 2.7 x 2.1cm / 1.3'' x 1'' x 0.8'' (L * W * T)
Relay Socket Size 6.8 x 3 x 2.9cm / 2.6'' x 1.1'' x 1.1'' (L * W *T)
Weight 73g
Package Content
1 x Power Relay+
Base Mini relay
