Kettop Firewall Device Mi5200L Core I5-5200U,1.5Ghz (4Gb Ddr3 Ram 32Gb Ssd Wifi) Aes-Ni,Dual Core 4xGigabit Nics, Support for Windows,Linux,Sophos,Vyos,Untangle

Description

• More powerful than common router. Support for a larger number of terminals. Support Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, Untangle, etc.
• Intel Core i5-5200U Processor 3M Cache, 2.20 GHz,up to 2.70 GHz,Broadwell, TDP 15 W Intel HD Graphics 5500
• 4G RAM, 32G SSD, With WiFi
• 4x Intel I211 Gigabit Ethernet ports, 2x USB 3.0, 2x USB 2.0,1x COM, 1x HD Video
• Aluminum alloy Shell. Small, compact and cheap. Fanless design. Running 24/7,Perfect fit for a LAN or WAN router, firewall, proxy, WiFi access point, VPN appliance, DHCP Server, DNS Server, etc.

Model:Mi5200L
Item Dimension:187 x 111 x 50 mm
CPU: Intel Core i5-5200U Processor 3M Cache, 2.20 GHz,up to 2.70 GHz,Broadwell, TDP 15 W Intel HD Graphics 5500
AES-NI:YES
Operating Temp: -10~50 Degrees Celsius
Non-Operating Temp: -20~80 Degrees Celsius
Hard Disk: Support 1 x Mini-PCIe for mSATA SSD and 1 x 2.5" SATA SSD/HDD(2.5" SATA cable included)
Memory:Support 1 x DDR3L SO-DIMM Socket, 1.35V 1333/1600MHz, Up to 8G
WiFi:Support 1 x Half-length Mini-PCIe for Wi-Fi Module .
LAN:4 x Intel I211-AT Gigabit LAN

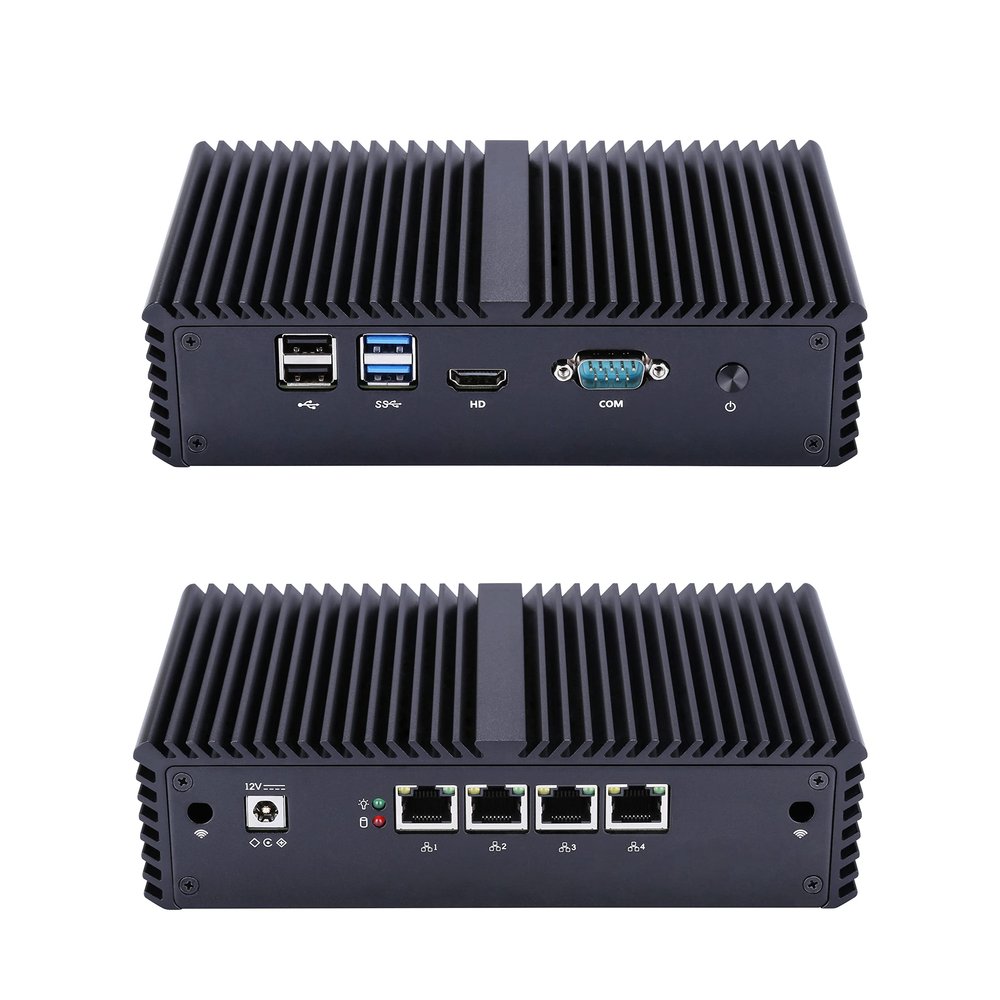

Front I/O:
1 x Power on/off Button
1 x COM (RS-232)
1 x HD Video
2 x USB 3.0
2 x USB 2.0

Rear I/O:
1 x DV 12V DC Input
1 x Power LED
1 x HDD LED
4 x Intel RJ-45 for Gigabit LAN

Internal Connectors:
1 x Full Mini pcie slot for mSATA SSD
1 x SATA connector for 2.5" SATA SSD/ HDD
1 x Half Mini pcie slot for WIFI/Bluetooth Module by default, If you wanna install LTE module, please leave message that we will move the screw to make a full mini pcie slot for it.
1 x DDR3L SO-DIMM Memory Slot
1 x SIM card slot

OS:
Firewalls tested with pfSense(User:admin, Password:pfsense)
Support Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, CentOS, Untangle, etc.
F11 key boot from USB Drive, Delete key enter into BIOS.
Support WOL, Restore from AC Power Loss

Warranty:
1) Warranty is two year .
2) Customization or printed logo can be acceptable.

Packing:
1 x Mini PC
1 x Power supply: 12V 5A adapter and US/UK/EU plug
1 x VESA bracket & screws
2 x Antennas (If you choose Wi-Fi)
1 x Packing box
