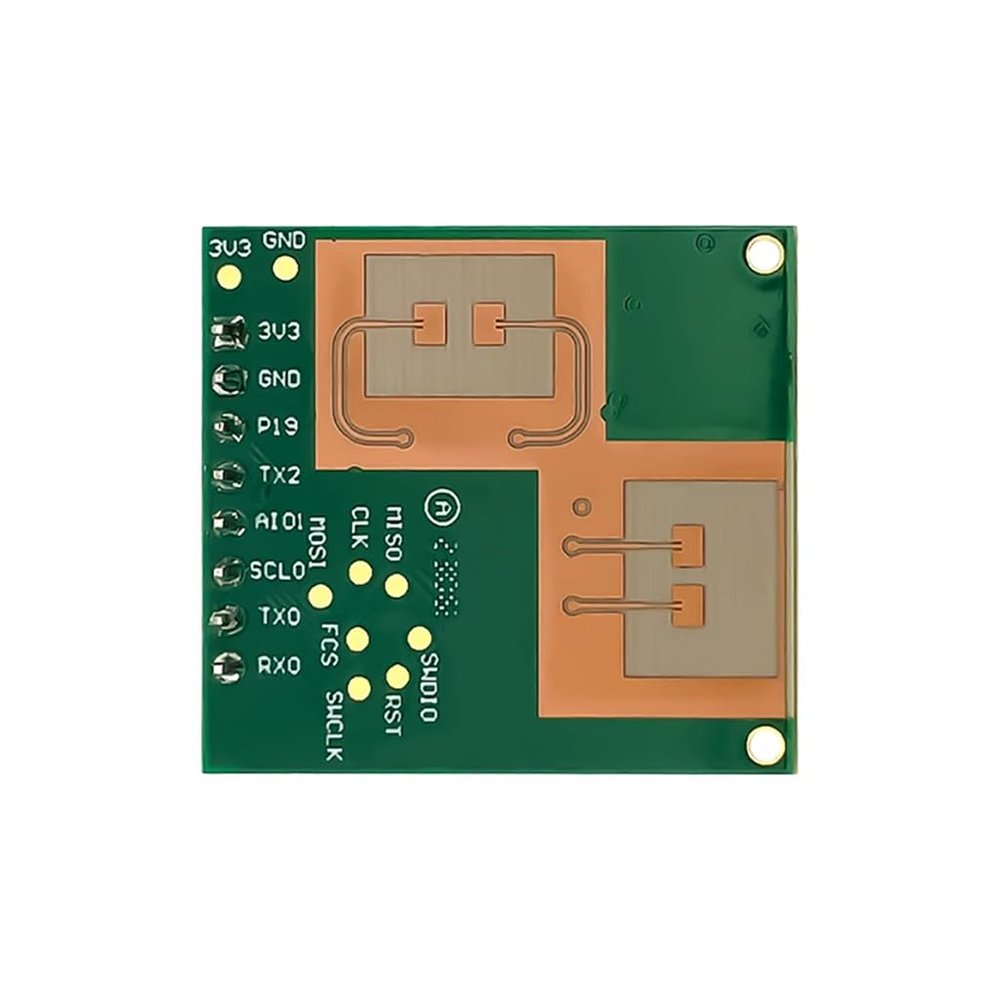

JMT LD6002C 60G Millimeter Wave Fall Detection FMCW RaDAR Non-Contact Intelligent Monitoring Sensor 2-Transmit and 2-Receive (1Piece)

Description

• LD6002C is a 60G radar module, based on FMCW radar mechanism.?Combined with radar signal processing algorithms,?it realizes the sensing of people's status in a specific place and reports the fall status in time.
• It is suitable for nursing care (toilet, bathroom), home security,?whole-house intelligence and other scenarios.
• Detection angle: azimuth 60 / pitch angle 60. Detection distance: <2m (hanging height 2.2-3m). Fall recognition accuracy: 90% (Typ.).
• Maximum detection number: 1 person. Power Requirement: 3.3V(Typ.) />1A.
• Transmit power: 12dBm. Modulation mode: FMCW. Antenna gain: 4dBi. Data format: Serial ASCII output.

JMT LD6002C 60G Millimeter Wave Fall Detection FMCW Radar Non-contact Intelligent Monitoring Sensor 2-Transmit and 2-Receive

Product Description
LD6002C is a 60G radar module, based on FMCW radar mechanism. Combined with radar signal processing algorithms, it realizes the sensing of people's status in a specific place and reports the fall status in time.
It is suitable for nursing care (toilet, bathroom), home security, whole-house intelligence and other scenarios.
Realize the fall monitoring of single person in small area.

Product features
-Operating frequency: 60G (58-62GHz)
-Transmit power: 12dBm
-Modulation mode: FMCW
-Antenna gain: 4dBi
-Detection angle: azimuth 60 / pitch angle 60
-Detection distance: 1A
-Exterior size: 1540mm
-Operating temperature: -20C~+85C
-Ambient temperature: -40C~+85C
-Data format: Serial ASCII output
-Package: Default 2.0mm8Pin

Attention
1. The detection distance of the radar module is highly correlated with the target RCS and environmental factors. Effective detection distance may change with the environment and target changes.
Therefore, effective detection distance fluctuation in a certain range is a normal phenomenon.
2. The radar module has very high requirements for power supply. 3.1~3.5V, power supply ripple 50mV, current 1A. If DCDC power supply is used, the switching frequency should not be lower than 2MHz.
3. This product is only suitable for bathroom, toilet small area scene, single person situation.
