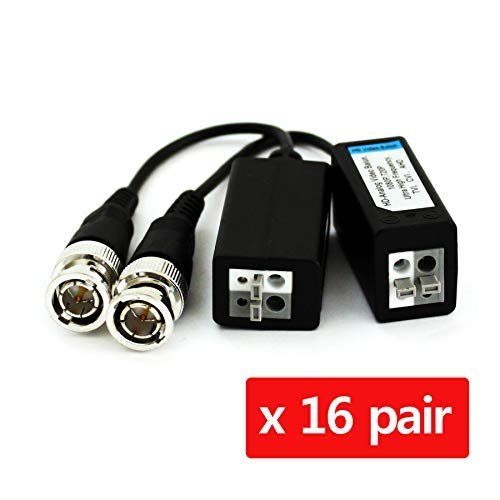

HDVD 16 Pairs Split Joint Mini CCTV BNC HD-CVI/TVI/AHD Passive Video Balun Transceiver (16 Pairs)

Description

• Screw free installation method, easy to install and save your time, makes the installation work more convenient!
• Got certificate of the FCC, CE and ROHS. Built-in transient suppression protection, lasts for over 10000 hours/417 days. In addition, a specification which has detailed installation steps make the procession of installation simple and convenient was attached.
• Support all HD-CVI, HD-TVI, HD-AHD, NTSC,PAL, and SECAM video formats. 60 Db cross talk and noise immunity. Push-terminal channel passive HD transceiver, male BNC allows connection directly to TVI/CVI/AHD or camera systemgold plated BNC better transmission quality long distance HD transmitter. No power required!
• Ultra high frequency with built-in TVS for surge protection
• Screw Free UTP Terminal HD-CVI/TVI/AHD Passive Video Balun, Installation Specification, 1 Year Warranty Service.

ITEM SPECIFICATION

Properties
Transmission Signal - 1 Channel
Transmission Distance - HD-TVI / HD-CVI / AHD Up to 250m (820ft)
Category type - UTP CAT5 / 5E / 6

Video Transmission Properties and Port
Coaxial Video Connector - BNC - M
Twisted- Pair Video ConnectorPush - Terminal
Compatible Format - HD-TVI/ HD-CVI / AHD / ANALOG
Resolution - Up to 1080P HD for All Video Formats
Anti -Interference - >60db

Protection
TVS - Built in TVS for Surge Protection
Coaxial Cable Connector - 2KV(common-code) Per: IEC1000-4-5
UTP Cable Connector - 2KV(different-code)4KV(common-code) Per : IEC1000-4-5
