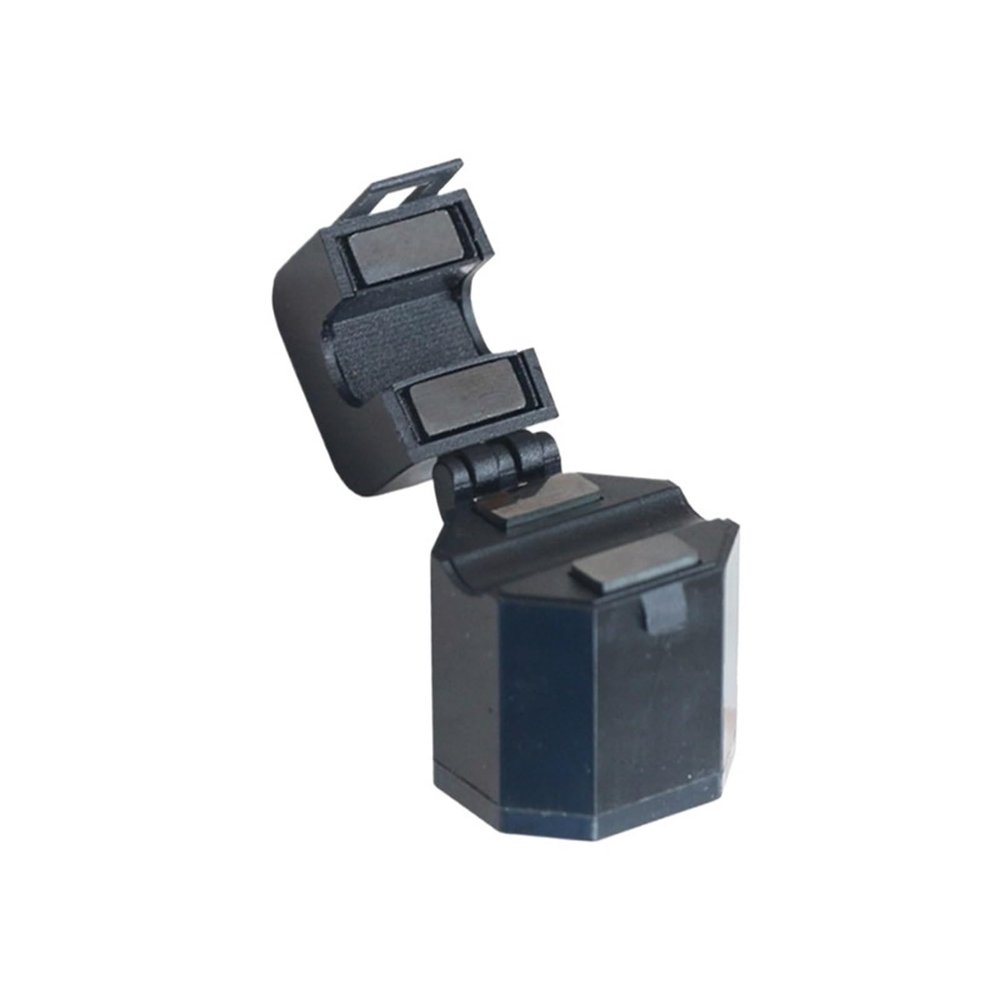

GVMUKNYE KCT-10 Hinged Split Current Transformer Clamp-On CT High Precision Smart Grid(50A,0.333V)

Description

• Isolation Transformers

Isolation Transformers
Clamp-on current transformers Clamp-on current transformers
Technical indicators:
Electrical parameters
Mechanical parameters
frequency
50-2KHz
case
PA/UL94-V0
Rated input
5A-200A
Spool
Polybutylene terephthalate
Measuring range
10%In-120%In
nuclear
Silicon Steel
Rated output
0.333V (AC) or 0-500mA
Internal structure
Epoxy resin
ratio
1.0%
put up
tie
Phase Angle
60 minutes
Operating temperature
-25~+75
Dielectric strength
2.5KV/1mA/1min
Working humidity
85%
Insulation resistance
DC500V/100Mmin
Output Connections
UL1015 20AWG wire 1.0m
Current transformer ratio:
Model
KCT-10
Current ratio
5A/2.5mA
20A/10mA
60A/20mA
75A/25mA
1~75A/0.333V
Primary current
5A
20A
60A
75A
1~75A
Maximum current
60A
60A
75A
75A
1~75A
Output
2.5 mA
10 mA
20 mA
25 mA
333 mV
Load Resistance
400
100
50
20
/
class
0.5/1.0
Turns ratio
2000:1
2000:1
3000:1
3000:1
/
Protection level
7.5V0-P
7.5V0-P
7.5V0-P
7.5V0-P
7.5V0-P
Insulation type
CATIII
Operating conditions
-20C~+50C, 85%RH, no condensation, indoor & any direction installation
Storage conditions
30C50C85RH no condensation
Current error(%): Current error(%):
